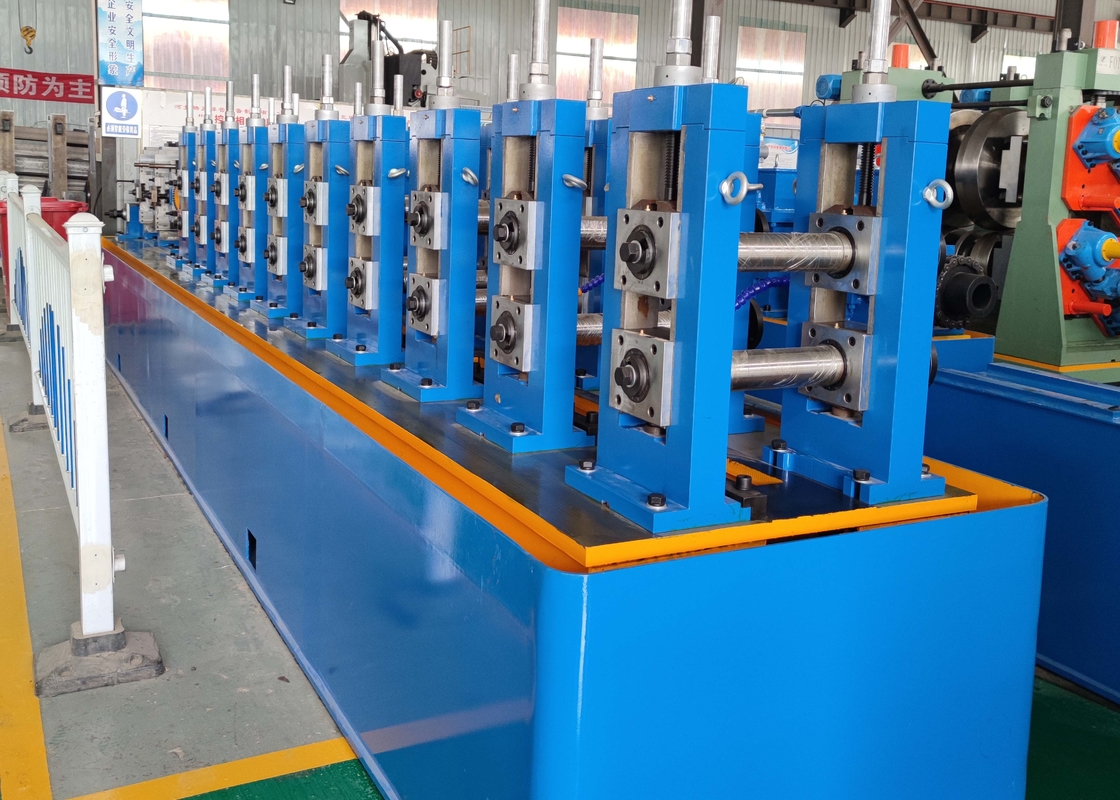

3.38-6.02mm Square Tube Mill Machine 60x60mm Carbon Steel
3.38-6.02mm Square Tube Mill Machine 60x60mm Carbon Steel
  • 3.38-6.02mm Square Tube Mill Machine 60x60mm Carbon Steel
  • 3.38-6.02mm Square Tube Mill Machine 60x60mm Carbon Steel

3.38-6.02mm Square Tube Mill Machine 60x60mm Carbon Steel

Product Details:
Place of Origin: China
Brand Name: TENG TIAN
Certification: ISO9001/BV
Model Number: HG114
Detail Information
Place of Origin:
China
Brand Name:
TENG TIAN
Certification:
ISO9001/BV
Model Number:
HG114
Product Name:
Thickness 3.38 - 6.02mm Round Or Square Pipe Mill Diameter 114.3mm Quick Include Rollers Square Tube Mill
Pipe Material:
Carbon Steel
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Voltage:
380V
Power(w):
1200KW
Speed:
20 - 60m / Min
Pipe Shape:
Round, Square & Rectangular
Square Pipe Diameter:
60mm*60mm
Warranty:
1 Year
Highlight:

High Light

Highlight:

Square Tube Mill Include Rollers

,

6.02mm Square Tube Mill

,

6.02mm Tube Mill Machine

Trading Information
Minimum Order Quantity:
1set
Price:
$100000 to $1 million
Packaging Details:
Seaworthy packing
Delivery Time:
3 months
Supply Ability:
150 units a year
Product Description
Thickness 3.38 - 6.02mm Square Tube Mill Machine with Included Rollers
Product Specifications
Attribute Value
Product Name Thickness 3.38 - 6.02mm Round or Square Pipe Mill Diameter 114.3mm Quick Include Rollers Square Tube Mill
Pipe material Carbon Steel
After-sales service Engineers available to service machinery overseas
Voltage 380V
Power 1200KW
Speed 20 - 60m/min
Pipe Shape Round, Square & Rectangular
Square Pipe Diameter 60mm*60mm
Warranty 1 year
Product Description

The HG114 High-Frequency Welded Pipe Mill Line is engineered to produce precision welded pipes with diameters ranging from 33.4-114.3mm and wall thicknesses of 3.38-6.02mm. Featuring an advanced roll pass design, this production line delivers superior quality welded steel pipes with exceptional machining precision and assembly accuracy.

Designed with operational efficiency and safety as top priorities, the HG114 production line incorporates a double-radius hole style design that enhances performance while reducing roller costs for maximum productivity.

Available Models
Serial No. Model Thickness(mm) Specification(mm) Speed(m/min) Main Engine(kw) Power(kw) Area
1 H20 0.3-1 8-20 30-120 55 60 7*50
2 H32 0.3-2.0 12-32 30-120 75 100 7*50
3 H50 0.8-2.5 16-50 30-110 110 150 7*60
4 H60 0.8-3 20-60 30-100 132 200 7*65
5 H76 1-3 12-76 30-100 320 250 8*80
6 H89 1-4 32-89 30-80 350 300 8*80
7 HG114 1.5-5 45-114 30-60 400 300 10*100
8 HG165 3-7 60-165 30-50 600 400 10*110
9 HG219 4-8 114-219 20-40 800 500 12*150
10 HG273 4-10 114-273 15-30 1000 600 18*160
11 HG325 4-12 165-325 10-30 1200 600 18*180
12 HG426 4-16 165-426 8-25 1400 800 18*180
13 HG508 4-20 219-508 8-20 2000 1000 21*180
Production Process
  • Scroll up
  • Uncoil
  • Flattening
  • End Shear & Butt Welding
  • Accumulator
  • Forming
  • High-frequency induction welding
  • Removing external burr
  • Cooling
  • Sizing
  • Cutting
  • Checking & Collecting
  • Accessing Warehouse
Our Comprehensive Services
  • On-site installation and operator training by our engineers
  • One-year quality guarantee with lifetime repair support
  • Pre-sales services including workshop design and production output planning
  • Post-sales support with skilled engineers available for extended periods
  • Complete project design services for stainless steel and carbon steel pipe production
  • Full responsibility for loading and shipping arrangements
