Thickness 3.38 - 6.02mm Square Tube Mill Machine Include Rollers

Thickness 3.38 - 6.02mm Square Tube Mill Machine  Include Rollers
Thickness 3.38 - 6.02mm Square Tube Mill Machine  Include Rollers Thickness 3.38 - 6.02mm Square Tube Mill Machine  Include Rollers

Large Image :  Thickness 3.38 - 6.02mm Square Tube Mill Machine Include Rollers

Product Details:
Place of Origin: China
Brand Name: TENG TIAN
Certification: ISO9001/BV
Model Number: HG114
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: nigotiation
Packaging Details: Seaworthy packing
Delivery Time: 3 months
Supply Ability: 150 units a year
Detailed Product Description
Product Name: Thickness 3.38 - 6.02mm Round Or Square Pipe Mill Diameter 114.3mm Quick Include Rollers Square Tube Mill Pipe Material: Carbon Steel
After-sales Service Provided: Engineers Available To Service Machinery Overseas Voltage: 380V
Power(w): 1200KW Speed: 20 - 60m / Min
Pipe Shape: Round, Square & Rectangular Square Pipe Diameter: 60mm*60mm
Warranty: 1 Year
High Light:

Square Tube Mill Include Rollers

,

6.02mm Square Tube Mill

,

6.02mm Tube Mill Machine

Thickness 3.38 - 6.02mm Round Pipe Dia 114.3mm Quick Include Rollers ERW Pipe Mill





Product Information

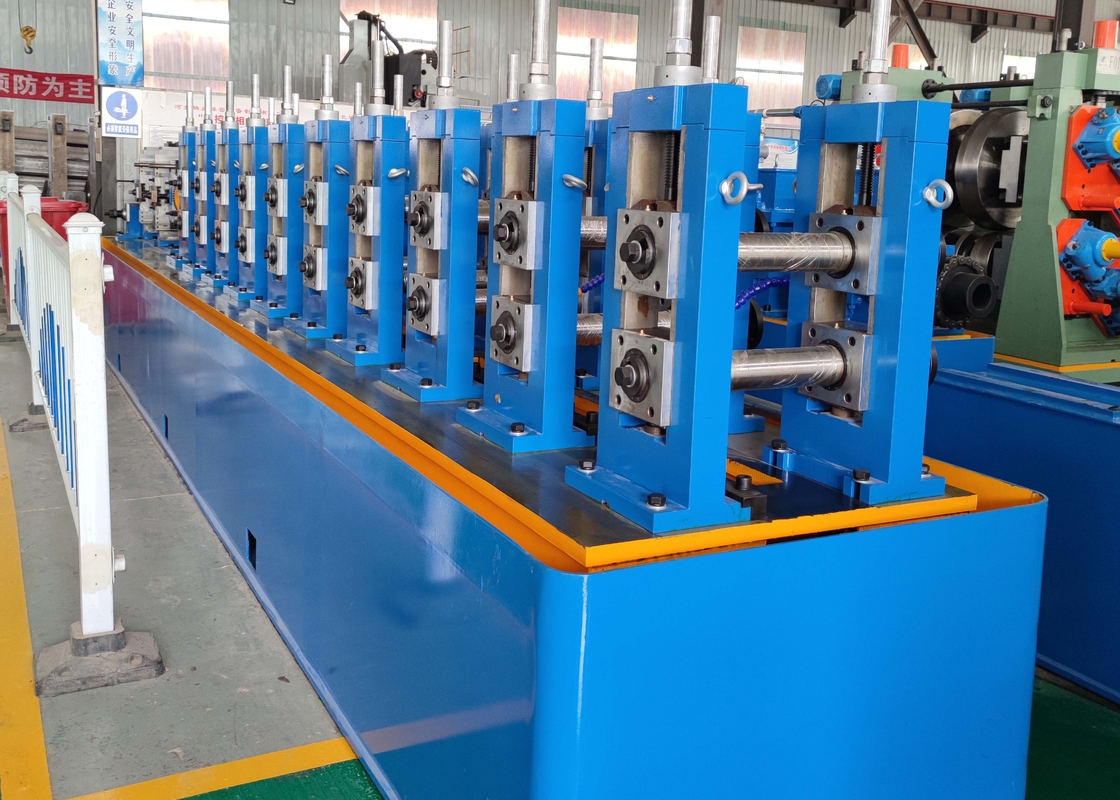

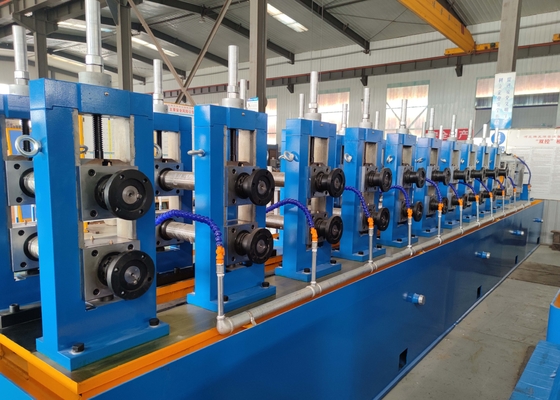

HG114 High-Frequency Welded Pipe Mill Line is designed to produce welded pipes of 33.4-114.3mm in diameter and 3.38-6.02mm in wall thickness. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

According to the designing guideline of improving the operating character & environment and the safety & producing character, reducing the cost of the roller to guarantee high efficiency, HG114 production line adopts the double-radius hole style of design.



Model



Serial number

Model

Thickness(mm)

Specification(mm)

Speed(m/min)

main engine(kw)

Power(kw)

area

1

H20

0.3-1

8-20

30-120

55

60

7*50

2

H32

0.3-2.0

12-32

30-120

75

100

7*50

3

H50

0.8-2.5

16-50

30-110

110

150

7*60

4

H60

0.8-3

20-60

30-100

132

200

7*65

5

H76

1-3

12-76

30-100

320

250

8*80

6

H89

1-4

32-89

30-80

350

300

8*80

7

HG114

1.5-5

45-114

30-60

400

300

10*100

8

HG165

3-7

60-165

30-50

600

400

10*110

9

HG219

4-8

114-219

20-40

800

500

12*150

10

HG273

4-10

114-273

15-30

1000

600

18*160

11

HG325

4-12

165-325

10-30

1200

600

18*180

12

HG426

4-16

165-426

8-25

1400

800

18*180

13

HG508

4-20

219-508

8-20

2000

1000

21*180



Production Process



Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse



Our Service



1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .
