4mm Carbon Steel Pipe Production Line 380V 650KW

Name: 4mm Carbon Steel Pipe Production Line 380V 650KW
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG 60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG 60

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG 60

Mill Name:

4mm Thickness Carbon Steel Pipe Production Line 380v 650KW 1 Year Warranty

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

650KW

Forming Speed:

Max 150 M / Min

Square Pipe:

20*20 - 50*50 Mm

Round Pipe Diameter:

25 - 63.5 Mm

Thickness:

0.8-4mm

Warranty:

1 Year

Keywords:

380v Steel Pipe Production Line

Highlight:

High Light

Highlight:

4mm Pipe Mill Equipment

4mm Stainless Steel Pipe Mill

Stainless Steel Pipe Mill 650KW

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

4mm Thickness Carbon Steel Pipe Production Line 380v 650KW

Key Specifications

Attribute	Value
Pipe Material	Carbon Steel
Voltage	380V
Power	650KW
Forming Speed	Max 150 m/min
Square Pipe Range	20×20 - 50×50 mm
Round Pipe Diameter	25 - 63.5 mm
Thickness Range	0.8-4mm
Warranty	1 year
After-sales Service	Engineers available for overseas machinery service

Product Features

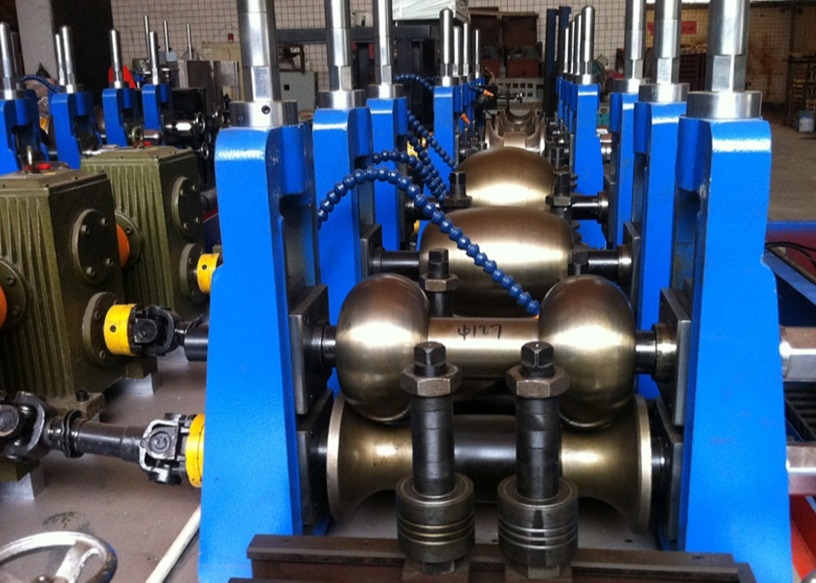

This carbon steel pipe production line offers high precision and excellent stability. The main equipment is processed by CNC machining centers to ensure component precision, guaranteeing overall machine accuracy and product quality. Servo motor-driven molds and shafts reduce manual mold replacement costs.

Available Models

Serial No.	Model	Thickness (mm)	Specification (mm)	Speed (m/min)	Main Engine (kw)	Power (kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7×50
2	H32	0.3-2.0	12-32	30-120	75	100	7×50
3	H50	0.8-2.5	16-50	30-110	110	150	7×60
4	H60	0.8-3	20-60	30-100	132	200	7×65
5	H76	1-3	12-76	30-100	320	250	8×80
6	H89	1-4	32-89	30-80	350	300	8×80
7	HG114	1.5-5	45-114	30-60	400	300	10×100
8	HG165	3-7	60-165	30-50	600	400	10×110
9	HG219	4-8	114-219	20-40	800	500	12×150
10	HG273	4-10	114-273	15-30	1000	600	18×160
11	HG325	4-12	165-325	10-30	1200	600	18×180
12	HG426	4-16	165-426	8-25	1400	800	18×180
13	HG508	4-20	219-508	8-20	2000	1000	21×180

Production Process

Loading car
Uncoil
Cutting and Welding
Accumulator
Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening
STD Cold-cutting saw
Transmitting
Hydrostatic testing
End facer
Straightener
Packing
Storage

Our Services

Engineer dispatch for installation and operator training
One year quality guarantee with lifetime repair support
Pre-sales services including workshop design and production output planning
After-sales support with skilled engineers available for extended periods
Comprehensive project design for stainless steel and carbon steel pipe production
Full responsibility for loading and shipping arrangements
