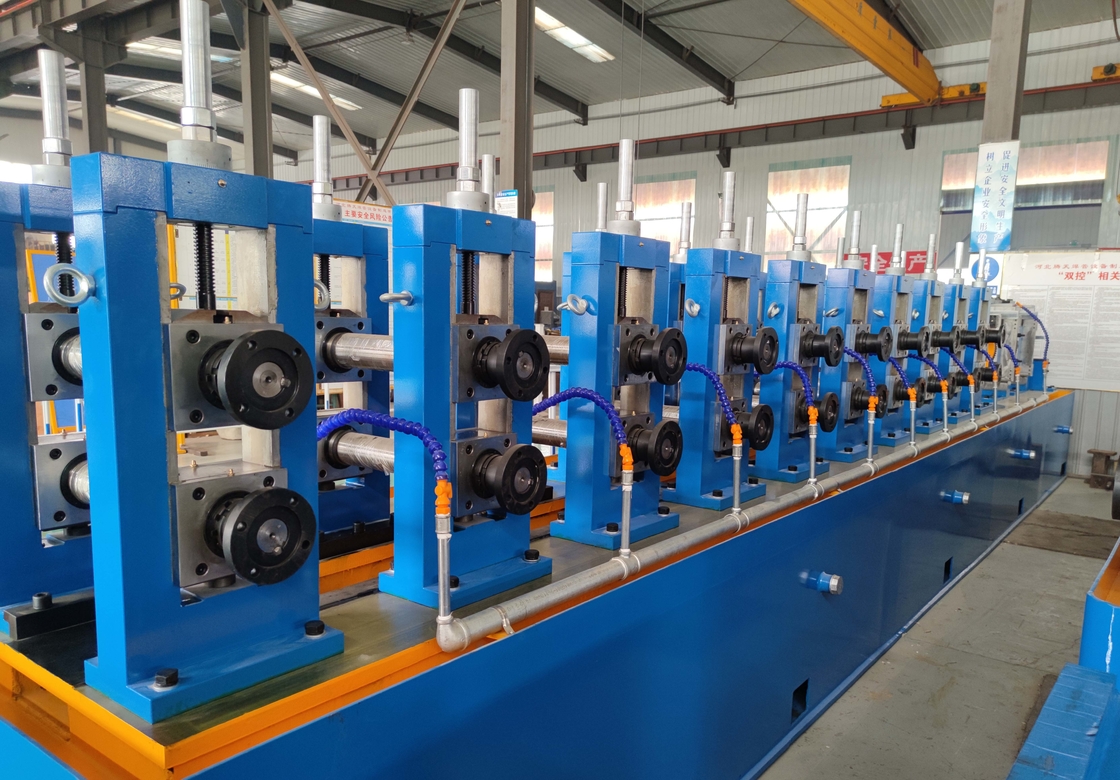

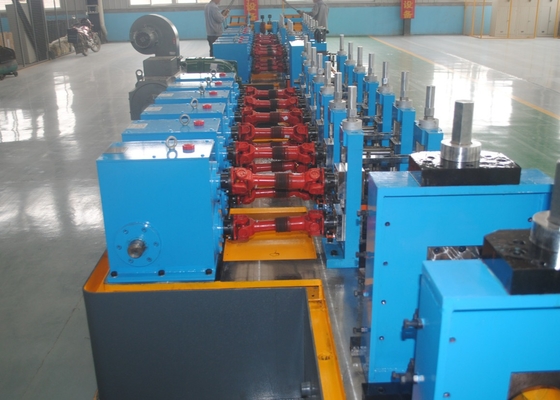

Blue High Frequency Welding Square Tube Mill 120m/Min Fast Change Roller Mill

Large Image : Blue High Frequency Welding Square Tube Mill 120m/Min Fast Change Roller Mill

Product Details:

Place of Origin:	CHINA
Brand Name:	TENGTIAN
Certification:	ISO/BV/CE
Model Number:	60

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	$100000 to $1 million
Packaging Details:	Seaworthy packing
Delivery Time:	2.5 months
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	120 sets one year

Contact Now

Detailed Product Description

Production Name:	Color Blue Square Pipe Mill 120m/Min Speed High Frequency Welding Square Tube Mill	Pipe Shape:	Round,square
Pipe Diameter:	16 - 76 Mm	Thickness:	0 . 7 - 2 . 5 Mm
Color:	Blue And White	Speed:	30 -120m/min
Material:	Galvanized Steel	Key Words:	High Frequency Welding Pipe Making Machinery Mill
Highlight:	Square Pipe Mill 120m/Min , High Frequency Pipe Mill 120m/Min , Square Pipe Mill fast Speed

Blue High Frequency Welding Square Tube Mill 120m/Min Fast Change Roller Mill

Blue High Frequency Welding Square Tube Mill 120m/Min Fast Change Roller Mill is a straight seam welded pipe machine, and other pipe machine is different from the place of its welding.
60 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.

Round pipe size: 16--60mm Pipe thickness: 0.7-2.0mm

High Frequency Welding Pipe Making Machinery Mill Main Parameters and Specifications:

Material Specifications:

Conforming to the YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤380Mpa,σs≤275MPa
strip width	50～190mm
strip thickness	0.7～2.0mm
I.D of Coils	Φ508mm
O.D of Coils	φ1800mm
Coil Weight	≤3T

Welded Pipe Specification

Round Pipe Diameter	Φ16～φ60mm
pipe thickness	0.7-2.0mm
Finish pipe length	4-6m
Cut length accuracy	±2mm
Forming speed	40-120m/min

ERW Tube Mill Other Model

Model	Diameter Range	Pipe Thickness	Molding speed(m/min)	Motor Power(KW)	Mechanical area (m³)
HG20	8-20MM	0.3-1MM	30-120	55	7×50
HG32	12-32MM	0.3-2.0MM	30-120	75	7×50
HG50	16-50MM	0.8-2.5MM	30-110	110	7×60
HG60	20-60MM	0.8-3MM	30-100	132	7×65
HG76	12-76MM	1-3MM	30-100	320	8×80
HG89	32-89MM	1-4MM	30-80	350	8×80
HG114	45-114MM	1.5-5.0MM	30-60	400	10×100
HG165	60-165MM	3-7MM	30-50	600	10×110
HG219	114-219MM	4-8MM	20-40	800	12×150
HG273	114-273MM	4-10MM	15-30	1000	18×160
HG325	165-325MM	4-12MM	10-30	1200	18×180
HG426	165-426MM	4-16MM	8-25	1400	18×180
HG508	219-508MM	4-20MM	8-20	2000	21×180
