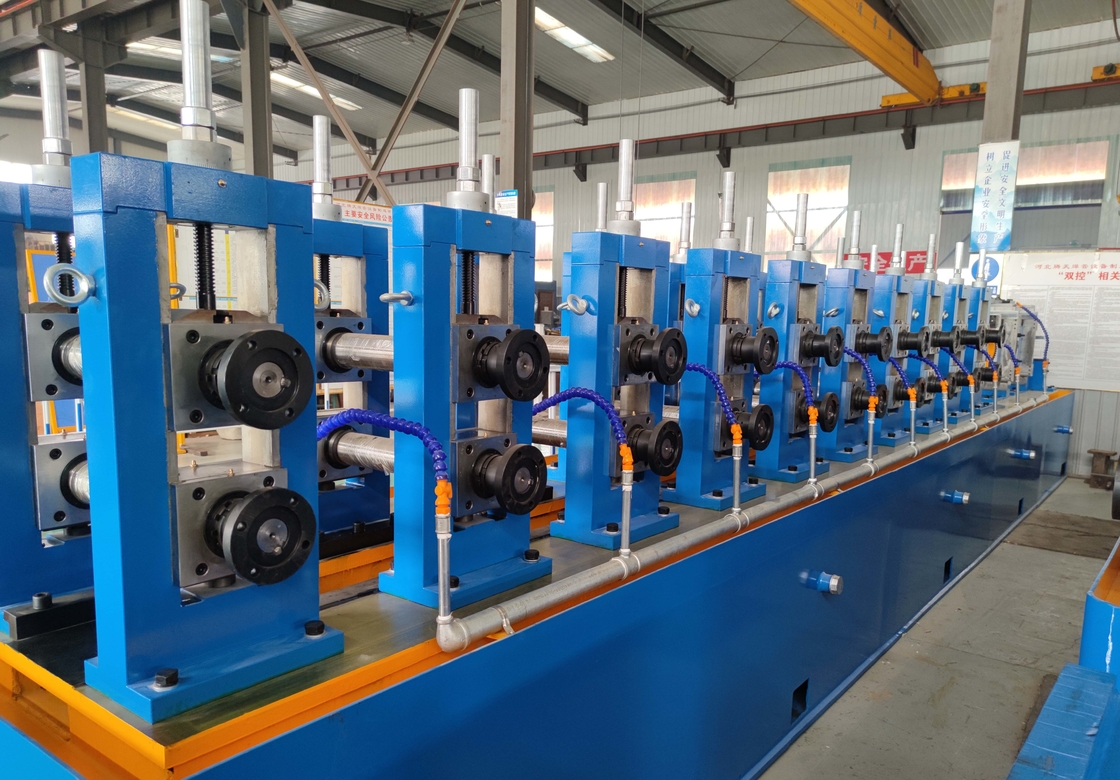

Blue High Frequency Welding Square Tube Mill 120m/Min

Product Details:

Place of Origin:	CHINA
Brand Name:	TENGTIAN
Certification:	ISO/BV/CE
Model Number:	60

Detail Information

Place of Origin:

CHINA

Brand Name:

TENGTIAN

Certification:

ISO/BV/CE

Model Number:

Production Name:

Color Blue Square Pipe Mill 120m/Min Speed High Frequency Welding Square Tube Mill

Pipe Shape:

Round,square

Pipe Diameter:

16 - 76 Mm

Thickness:

0 . 7 - 2 . 5 Mm

Color:

Blue And White

Speed:

30 -120m/min

Material:

Galvanized Steel

Key Words:

High Frequency Welding Pipe Making Machinery Mill

Highlight:

High Light

Highlight:

Square Pipe Mill 120m/Min

High Frequency Pipe Mill 120m/Min

Square Pipe Mill fast Speed

Trading Information

Minimum Order Quantity:

1SET

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

2.5 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

120 sets one year

Product Description

Blue High Frequency Welding Square Tube Mill 120m/Min Fast Change Roller Mill

Production Name	Color Blue Square Pipe Mill 120m/Min Speed High Frequency Welding Square Tube Mill
Pipe Shape	Round, Square
Pipe Diameter	16 - 76 mm
Thickness	0.7 - 2.5 mm
Color	Blue and white
Speed	30 - 120 m/min
Material	Galvanized steel

Product Description

The Blue High Frequency Welding Square Tube Mill is a specialized straight seam welded pipe machine distinguished by its advanced welding technology. This 120m/min fast change roller mill combines international pipe-making expertise with innovative domestic design for optimal performance.

Key Features

High-speed operation up to 120 meters per minute
Fast change roller system for efficient production
Capable of producing both round and square pipes
Handles galvanized steel material with precision
Compact and economical design without compromising quality

Technical Specifications

Material Specifications

Conforms to YB189-64 standard
Material: Low carbon steel and low alloy constructional steel
Mechanical properties: σb≤380Mpa, σs≤275MPa
Strip width: 50～190mm
Strip thickness: 0.7～2.0mm
Coil specifications: I.D Φ508mm, O.D φ1800mm, Weight ≤3T

Welded Pipe Specifications

Round Pipe Diameter	Φ16～φ60mm
Pipe Thickness	0.7-2.0mm
Finish Pipe Length	4-6m
Cut Length Accuracy	±2mm
Forming Speed	40-120m/min

Available Models

Model	Diameter Range	Pipe Thickness	Molding Speed	Motor Power	Mechanical Area
HG20	8-20MM	0.3-1MM	30-120 m/min	55 KW	7×50 m³
HG32	12-32MM	0.3-2.0MM	30-120 m/min	75 KW	7×50 m³
HG50	16-50MM	0.8-2.5MM	30-110 m/min	110 KW	7×60 m³
HG60	20-60MM	0.8-3MM	30-100 m/min	132 KW	7×65 m³
HG76	12-76MM	1-3MM	30-100 m/min	320 KW	8×80 m³
HG89	32-89MM	1-4MM	30-80 m/min	350 KW	8×80 m³
