| Machine Name: | Galvanized Steel 508mml Pipe Production Line For Oil And Water Fluid Pipe | Product: | Round Pipe |
|---|---|---|---|
| Feature: | Precision | Material: | Carbon Steel And Galvanized Steel |
| Other Pipe: | Square Pipe | Max Size: | 508mm |
| Thickness: | 3mm | Length: | 6-12m |
| Rollers: | Not Include | Model: | 500x500 |
| Key Words: | Galvanized Steel 508mml Pipe Production Line For Oil And Water Fluid Pipe | ||
| High Light: | 508mm Steel Pipe Production Line,Water Fluid Production Line,508mm steel tube production line |
||
Steel Pipe Production Line General Introduction
HG508 Square tube mill is designed to produce square pipe 400x400mm and according size square pipe , thickness 6-12mm. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
According to the designing guideline of improving the operating character & environment and the safety & producing character , reducing the cost of the roller to guarantee high efficiency,HG508 Square tube mill production line adopts the double-radius hole style of design .
Automatic tube mill Main Parameters and Specifications
|
(1)Material Specifications: |
|
|
Standard |
Internatioanl standard tube mill machine |
|
Material |
galvanized steel |
|
Mechanical properties |
σb≤520Mpa,σs≤365MPa |
|
Strip Width |
1000-1600mm |
|
Strip Thickness: |
6-12mm |
|
Inner Diameter of Coils |
Φ508mm |
|
Outer Diameter of Coils |
Φ1300～φ2000mm |
|
Coil Weight |
≤25T |
|
(2)Pipe Specification |
|
|
Pipe Diameter |
round pipe :300x300-400x400mm |
|
Length |
3-6m |
|
Pipe-cutting Precision |
0-6mm |
|
Forming Speed |
max 40m/min for 10 mm thickness |
|
(3)The buyer should self-supply |
|
|
Work shop |
100x12m, H＞5m(crane to ground) |
|
Power |
Approx.3500KW 380V/60Hz/3phases |
|
Circulation Cooling Water(whole system) |
Flow:30+30 CBM |
|
Compressed Air |
Flow:5m3/min |
|
Cable |
All cable outside of my machine, you buy after machine fix location. |
strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

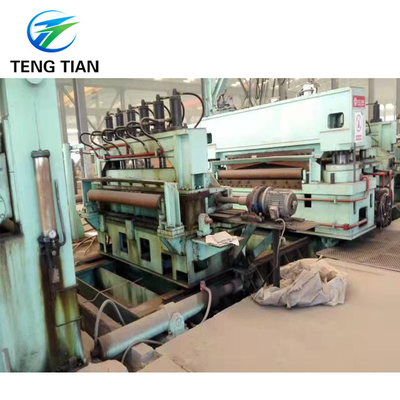

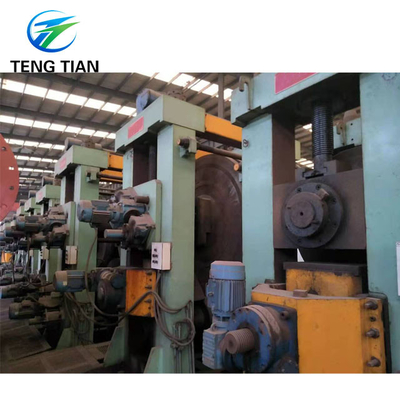

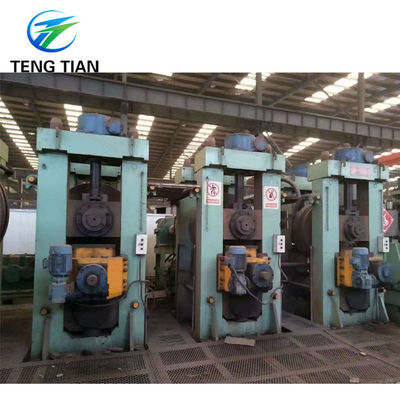

Our Factory for Steel Pipe Production Line
