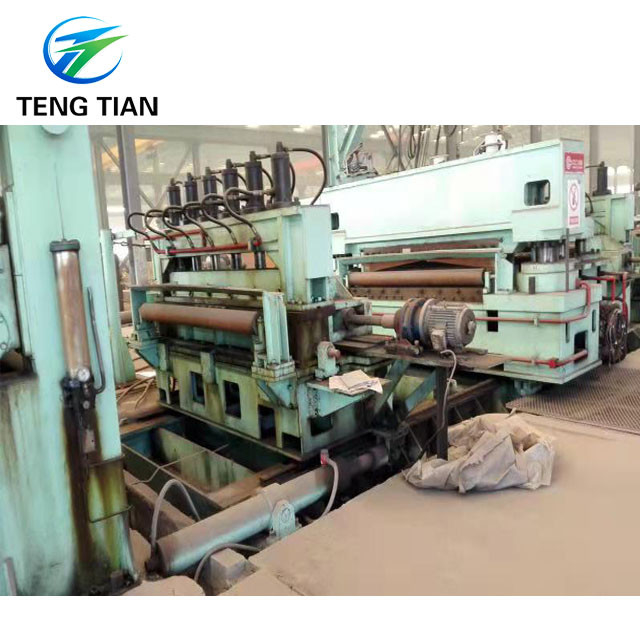

508mm Galvanized Steel Pipe Production Line for Oil Water Pipes

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	508

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

508

Machine Name:

Galvanized Steel 508mml Pipe Production Line For Oil And Water Fluid Pipe

Product:

Round Pipe

Feature:

Precision

Material:

Carbon Steel And Galvanized Steel

Other Pipe:

Square Pipe

Max Size:

508mm

Thickness:

3mm

Length:

6-12m

Rollers:

Not Include

Model:

500x500

Key Words:

Galvanized Steel 508mml Pipe Production Line For Oil And Water Fluid Pipe

Highlight:

High Light

Highlight:

508mm Steel Pipe Production Line

Water Fluid Production Line

508mm steel tube production line

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

90 wording days

Payment Terms:

L/C,T/T,Western Union,

Supply Ability:

5 set/month

Product Description

508mm Galvanized Steel Pipe Production Line For Oil And Water Fluid Pipe

Product Specifications

Attribute	Value
Machine Name	Galvanized Steel 508mm Pipe Production Line For Oil And Water Fluid Pipe
Product	Round pipe
Feature	Precision
Material	Carbon steel and galvanized steel
Other pipe	Square pipe
Max size	508mm
Thickness	3mm
Length	6-12m
Rollers	Not included
Model	500x500

Product Description

The HG508 Square Tube Mill is engineered to produce high-quality square pipes up to 400x400mm in size with thickness ranging from 6-12mm. Utilizing advanced roll pass design, this production line delivers welded steel pipes with exceptional machining quality and high-precision assembly.

Design Features

Designed with operational efficiency and safety in mind, the HG508 Square Tube Mill production line incorporates a double-radius hole style design to enhance performance while reducing roller costs and maintaining high production efficiency.

Technical Specifications

Standard: International standard tube mill machine

Material: Galvanized steel

Mechanical properties: σb≤520Mpa, σs≤365MPa

Strip Width: 1000-1600mm

Strip Thickness: 6-12mm

Inner Diameter of Coils: Φ508mm

Outer Diameter of Coils: Φ1300～φ2000mm

Coil Weight: ≤25T

Pipe Diameter: Round pipe: 300x300-400x400mm

Length: 3-6m

Pipe-cutting Precision: 0-6mm

Forming Speed: Max 40m/min for 10mm thickness

Buyer Requirements

Workshop: 100x12m, H＞5m (crane to ground)
Power: Approx. 3500KW 380V/60Hz/3phases
Circulation Cooling Water (whole system): Flow:30+30 CBM, Pool Volume:40m3
Compressed Air (whole system): Flow:5m3/min, Pressure: 5-7kg/cm2
Cable: All cable outside of machine to be purchased after machine installation

Tube Mill Machine Working Process

Strip steel to coil
Uncoiler
End straightener
Flattener
Shear welder
Storage material unit
Forming, welding, cooling, accurate pipe diameter sizing
Accurate pipe length sizing and cutting
Inspection
Packaging

Square Tube Mill
