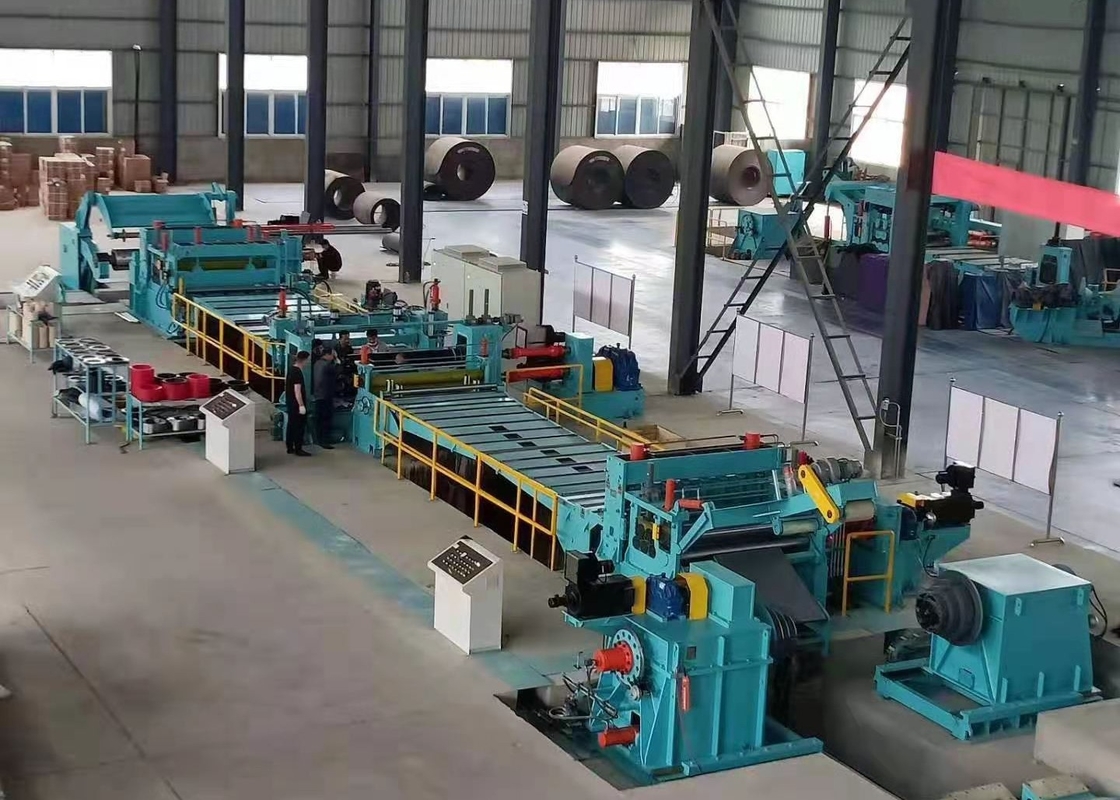

High Speed Steel Slitting Machine 1650mm Max Width 4.5mm Thickness

Name: High Speed Steel Slitting Machine 1650mm Max Width 4.5mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 1650 X 4.5 mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Hebei Tengtian
Certification:	CE
Model Number:	1650 X 4.5 mm

Detail Information

Place of Origin:

China

Brand Name:

Hebei Tengtian

Certification:

Model Number:

1650 X 4.5 mm

Name:

High Speed Coil Cutting Disc Blade Strip Slitter For Metal Steel Slitting Machine

Max Width:

1650mm

Thickness Range:

4.5 Mm

Cutting Currency:

±1.5 Mm

Cutting Speed:

0-70 M/min

The Loading`bearing Capacity Of The Decoiler:

30T

Cutter Motor:

75kw

Coiler Motor:

90kw

Highlight:

High Light

Highlight:

70m/min Cutting Strip Slitter

Coil Cutting Strip Slitter

High Speed strip slitting machine

Trading Information

Minimum Order Quantity:

Price:

$100000 to $1 million

Packaging Details:

container

Delivery Time:

1 month

Payment Terms:

L/C,,T/T

Supply Ability:

Product Description

High Speed Coil Cutting Disc Blade Strip Slitter For Metal Steel Slitting Machine

Product Specifications

Max Width	1650mm
Thickness Range	4.5 mm
Cutting Accuracy	±1.5 mm
Cutting Speed	0-70 m/min
Loading Capacity of Decoiler	30T
Cutter Motor	75kw
Coiler Motor	90kw

Technical Parameters

Material Specifications

Coil Thickness: Max 9 mm
Coil Width: Max 1650mm
Coil Weight: ≤30 t
Inner Diameter: Φ508/610/760mm
Outer Diameter: ≤Φ2000mm
Width Precision: ±0.10 mm (thickness 2.0-3.0) ±0.20 mm (thickness 3.1-9.0)
Burr Accuracy: ≤5%

Equipment Composition

No.	Name	Quantity
1	Coil car	1 Set
2	Uncoiler	1 Set
3	Pressure leading device	1 Set
4	Clamp & Straightener	1 Set
5	Shearing	1 Set
6	1#Accumulator	1 Set
7	Guiding device	1 Set
8	Pinch roll	1 Set
9	Slitter machine	2 Sets
10	Edge rewinder	1 Set
11	Wear tape table and material tail pressing plate	1 Set
12	2#Accumulator	1 Set
13	Seperation device	1 Set
14	Tension plate	1 Set
15	3-roll tension burr extruding machine	1 Set
16	Steering roller and feed head guide plate	1 Set
17	Recoiler + Coiling support	1 Set
18	Unloading car	1 Set
19	Knife disc, knife pad, unloading apron, separating disc, separating disc pad and other process parts	-------

Available Models

Model (mm)	Plate Thickness (mm)	Plate Width (mm)	Steel Coil Weight (T)	Finished Width (mm)	Shear Article Number	Shear Speed (m/min)
3×500	0.4-3	100-500	7	≥30	≤6	140
3×600	0.4-3	100-600	8	≥30	≤6	140
3×800	0.5-3	200-800	10	≥30	≤8	140
3×1250	0.5-3	400-1250	15	≥30	≤10	120
3×1500	0.5-3	600-1500	20	≥30	≤12	120
3×1800	0.5-3	900-1600	30	≥40	≤13	120
4×1600	0.5-4	900-1600	30	≥60	≤13	120
6×1600	1-6	900-1600	30	≥60	≤10	110
8×2000	2-8	900-2000	35	≥70	≤6	100
10×2200	3-10	900-2200	35	≥80	≤5	80
12×2200	3-12	900-2200	35	≥100	≤5	50
16×2500	4-16	900-2500	35	≥100	≤5	40
20×2500	6-20	900-2500	35	≥100	≤4	40
