| Thickness Range: | 6 Mm | Max Width: | 1500mm |
|---|---|---|---|
| Material: | Metal | Cutting Currency: | ±1.5 Mm |
| Cutting Speed: | 0-50 M/min | The Loading`bearing Capacity Of The Decoiler: | 20T |
| Cutter Motor: | 60 Kw | Coiler Motor: | 72 Kw |
| High Light: | 50m/min Metal Slitting Machine,50m/min Metal Slitting Line,Metal Strip Coil Slitter |
||

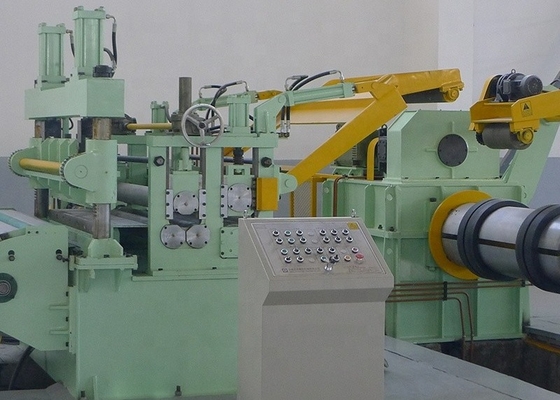

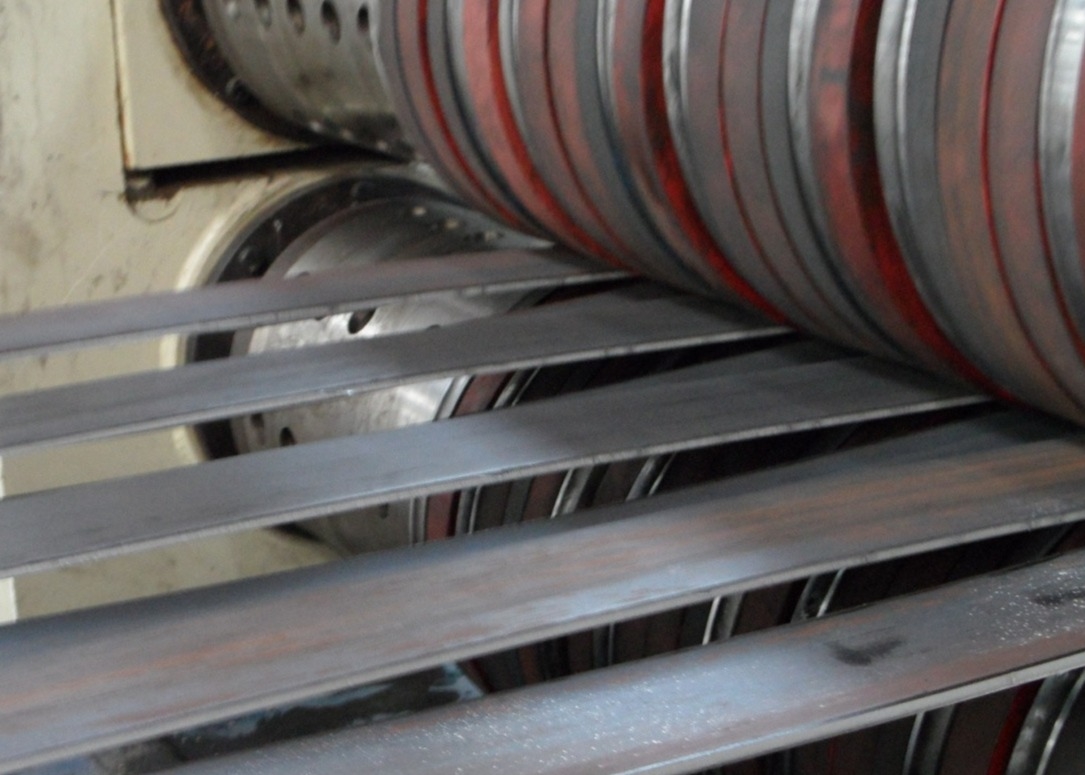

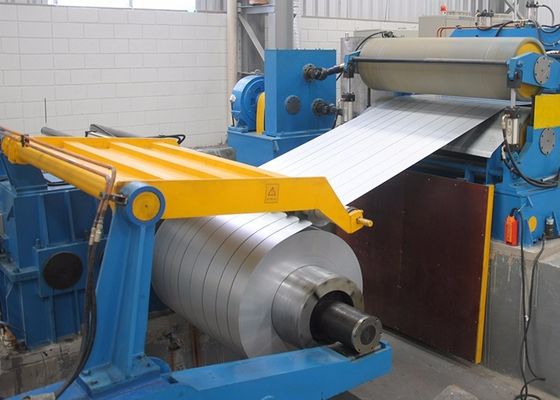

ZSL-6×1500-Slitting Line Metal Strip Coil Slitter Man-Machine Interaction Convenience
I. Design, manufacture, check and installation of the product line should refer to the following standards:
|
(1)JB/T 10678-2006 Sheet uncoiling leveling cut production line (2)JB/T 1829-1997 Metal Forming Machinery General Requirements GB 3766-2001 Hydraulic System General Specification
GB/T 14404-2011 Plate Shearing Machine Accuracy JB/T 3164-2007 Technical Specification for roller plate leveler JB/T 1465-2010 Basic Parameter of roll plate leveler
|
II. General Technical Requirements for Production Lines:
The processing precision of the production line is in accordance with the relevant requirements of the “main technical parameters”. The seller is established on the basis of satisfying the buyer’s requirements and can make appropriate adjustments to the contents specified in the specification.
There is no abnormal vibration and noise for the product line and it should be in accordance with the requirements of the related state standards.
When hydraulic components and pressure station are normally operated and maintained according to Specifications, we make sure that it’s no leakage or natural damage. The replacement or maintenance should be supplied for the user in time.
Welding Requirements:
Bead appearance of all the weld assemblies should be uniform in height and width. The connection between the weld assemblies and the parent metals should be transitioned smoothly. Getting rid of the splash and grinding are necessary to make the surface waviness nice and symmetry. There is no crack, cold joint, slag inclusion, flame breakthrough, weld beading, undercut and air hole, etc. on the welded joint.
The appearance of the product line should be painted according to the user’s requirements.
Appearance of the paints:
Oil film should be equal and there is no hanging stream, orange peel and pin-hole air bubble on it. Painting dressing surface shouldn’t show any trace of white.
Manufacture Requirements for Product Quality:
All equipments should be designed and manufactured according to the State Quality Standards System.
The purchaser has the right to check the drawing supplied by the supplier and supervise the manufacture process at any time.
III. Idea of products designing:
Reliability: the designing of machinery have high reliability, it can make sure about the equipments working normally and continuously.
Safety: the machines, hydraulic and electrical system of the whole line have reliable protection and safety device. The equipments have emergency cut-off function and response device, it can emergency stop by manual or automatically.
Environmentally: kinds of hydraulic oils of the machine tools used must be recycled, avoid from leakage and environmental pollution.
Energy-saving: consider the energy consumption factors when design the equipment, using the higher transfer efficiency unit, combining product accuracy improvement, reduce the consumption.
Operation: this equipment can operation easily, and man-machine interaction convenience. Details refer to the electrical system specification.
IV. Other Model Of Slitting Line
| Model (mm) |
Plate thickness (mm) |
Plate width (mm) |
Steel coil weight (T) | Finished width (mm) | Shear article number | Shear speed(m/min) |
| 3×500 | 0.4-3 | 100-500 | 7 | ≥30 | ≤6 | 140 |
| 3×600 | 0.4-3 | 100-600 | 8 | ≥30 | ≤6 | 140 |
| 3×800 | 0.5-3 | 200-800 | 10 | ≥30 | ≤8 | 140 |
| 3×1250 | 0.5-3 | 400-1250 | 15 | ≥30 | ≤10 | 120 |
| 3×1500 | 0.5-3 | 600-1500 | 20 | ≥30 | ≤12 | 120 |
| 3×1800 | 0.5-3 | 900-1600 | 30 | ≥40 | ≤13 | 120 |
| 4×1600 | 0.5-4 | 900-1600 | 30 | ≥60 | ≤13 | 120 |
| 6×1600 | 1-6 | 900-1600 | 30 | ≥60 | ≤10 | 110 |
| 8×2000 | 2-8 | 900-2000 | 35 | ≥70 | ≤6 | 100 |
| 10×2200 | 3-10 | 900-2200 | 35 | ≥80 | ≤5 | 80 |
| 12×2200 | 3-12 | 900-2200 | 35 | ≥100 | ≤5 | 50 |
| 16×2500 | 4-16 | 900-2500 | 35 | ≥100 | ≤5 | 40 |
| 20×2500 | 6-20 | 900-2500 | 35 | ≥100 | ≤4 | 40 |
