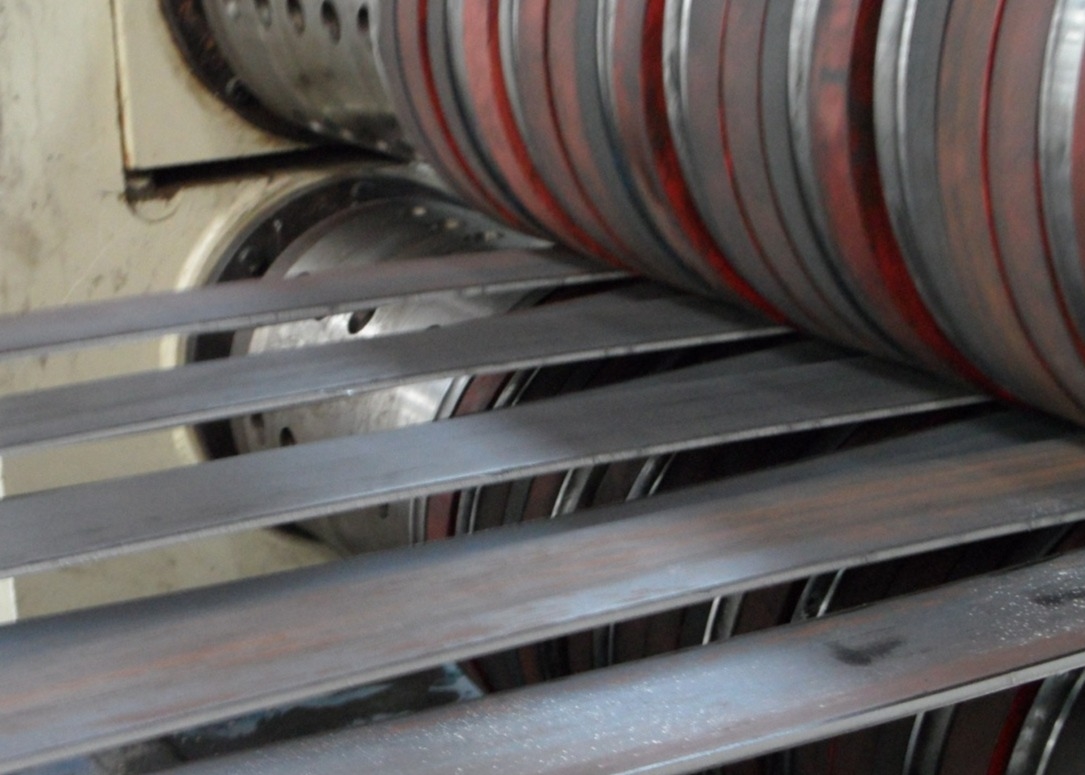

6mm 1500mm Metal Slitting Line 50 M/Min Cutting Speed

Name: 6mm 1500mm Metal Slitting Line 50 M/Min Cutting Speed
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 1650 X 4.5 mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Hebei Tengtian
Certification:	CE
Model Number:	1650 X 4.5 mm

Detail Information

Place of Origin:

China

Brand Name:

Hebei Tengtian

Certification:

Model Number:

1650 X 4.5 mm

Thickness Range:

6 Mm

Max Width:

1500mm

Material:

Metal

Cutting Currency:

±1.5 Mm

Cutting Speed:

0-50 M/min

The Loading`bearing Capacity Of The Decoiler:

20T

Cutter Motor:

60 Kw

Coiler Motor:

72 Kw

Highlight:

High Light

Highlight:

50m/min Metal Slitting Machine

50m/min Metal Slitting Line

Metal Strip Coil Slitter

Trading Information

Minimum Order Quantity:

Price:

$100000 to $1 million

Packaging Details:

container

Delivery Time:

1 month

Payment Terms:

L/C,,T/T

Supply Ability:

Product Description

50 M/Min Metal Slitting Line Man Machine Interaction Convenience

Product Specifications

Attribute	Value
Thickness Range	6 mm
Max Width	1500mm
Material	Metal
Cutting Currency	±1.5 mm
Cutting Speed	0-50 m/min
Loading Capacity of Decoiler	20T
Cutter Motor	60 kw
Coiler Motor	72 kw

Product Description

ZSL-6 ×1500-Slitting Line Metal Strip Coil Slitter

Design and Manufacturing Standards

JB/T 10678-2006 Sheet uncoiling leveling cut production line
JB/T 1829-1997 Metal Forming Machinery General Requirements
GB 3766-2001 Hydraulic System General Specification
GB/T 5226.1-2008 Industrial electric equipment of Machine General Specification
JB/T 8609-1997 Hydraulic Machinery Welding Technical Requirements
GB/T 14404-2011 Plate Shearing Machine Accuracy
JB/T 3164-2007 Technical Specification for roller plate leveler
JB/T 1465-2010 Basic Parameter of roll plate leveler
YB/T 4056-2006 Technical specification for roller plate leveler of Metal Plate

General Technical Requirements

The processing precision of the production line meets all relevant requirements specified in the main technical parameters. The manufacturer can make appropriate adjustments to the specification contents while satisfying buyer requirements.

The product line operates without abnormal vibration or noise, complying with relevant state standards. Hydraulic components and pressure stations are leak-proof when properly maintained, with timely replacement or maintenance services available.

Welding Requirements

All weld assemblies feature uniform bead appearance with smooth transitions to parent metals. Surfaces are free of splash, cracks, cold joints, slag inclusions, and other defects, with proper grinding for symmetry and waviness.

Painting Requirements

Paint application features equal oil film thickness without hanging streams, orange peel, or pin-hole bubbles. Dressed surfaces show no white traces, with color options available per user requirements.

Quality Assurance

All equipment is designed and manufactured according to State Quality Standards. Buyers retain rights to review supplier drawings and supervise manufacturing processes at any stage.

Design Principles

Reliability: Machinery design ensures continuous normal operation with high reliability
Safety: Comprehensive protection systems with emergency cut-off functions for both manual and automatic stopping
Environmental: Hydraulic oils are recycled to prevent leakage and pollution
Energy-saving: High-efficiency units reduce consumption while improving product accuracy
Operation: User-friendly design with convenient man-machine interaction

Available Models

Model (mm)	Plate Thickness (mm)	Plate Width (mm)	Steel Coil Weight (T)	Finished Width (mm)	Shear Article Number	Shear Speed (m/min)
3×500	0.4-3	100-500	7	≥30	≤6	140
3×600	0.4-3	100-600	8	≥30	≤6	140
3×800	0.5-3	200-800	10	≥30	≤8	140
3×1250	0.5-3	400-1250	15	≥30	≤10	120
3×1500	0.5-3	600-1500	20	≥30	≤12	120
3×1800	0.5-3	900-1600	30	≥40	≤13	120
4×1600	0.5-4	900-1600	30	≥60	≤13	120
6×1600	1-6	900-1600	30	≥60	≤10	110
8×2000	2-8	900-2000	35	≥70	≤6	100
10×2200	3-10	900-2200	35	≥80	≤5	80
12×2200	3-12	900-2200	35	≥100	≤5	50
16×2500	4-16	900-2500	35	≥100	≤5	40
20×2500	6-20	900-2500	35	≥100	≤4	40
