High Yield Cold Saw Cutting GI Steel Tube Making Machine

Name: High Yield Cold Saw Cutting GI Steel Tube Making Machine
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG219
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	HG219

Detail Information

Place of Origin:

Hebei

Brand Name:

TengTian

Certification:

CE, ISO9001, BV

Model Number:

HG219

Name:

High Yield Cold Saw Cutting GI Steel Tube Making Machine For Round Pipe Machine

Applicable Materials:

Carbon Steel

Cutting Method:

Cold Saw

Equipment Specification:

Customer Specified

Forming Method:

Roller Forming

Speed:

20-45 M/min

Warranty:

One Year

Material:

GI Carbon Steel

Forming Type:

Direct Forming

Work Shop:

150 X 16 M, H＞5m ( Crane To Ground )

Highlight:

High Light

Highlight:

High Yield galvanized pipe making machine

Cold Saw galvanized pipe making machine

Round galvanized steel pipe making machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

High Yield Cold Saw Cutting GI Round Galvanized Pipe Making Machine

Product Specifications

Attribute	Value
Name	High Yield Cold Saw Cutting GI Steel Tube Making Machine for Round Pipe Machine
Applicable materials	Carbon Steel
Cutting method	Cold Saw
Equipment Specification	customer specified
Forming method	Roller Forming
Speed	20-45 m/min
Warranty	One year
Material	GI carbon Steel
Forming type	direct forming
Work shop	150 x 16 m, H＞5m (crane to ground)

Product Overview

The High Yield Cold Saw Cutting GI Steel Tube Making Machine is essential for infrastructure construction projects worldwide. The finished pipes are used in building materials, decoration, new energy, and other fields. This machine offers low investment with high returns, making it ideal for companies entering the steel industry.

Standard Models & Specifications

No.	Model	Pipe Size	Thickness	Speed(m/min)	Capacity(KW)	HF(KW)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	400	100*16
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	400	100*16
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	500	100*16
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	600	150*16

Key Components

Uncoiler: Features double expansion and cantilever mandrels with pneumatic system for expanding, contracting and braking
Straightener & Leveler: Flattens strip steel heads and tails for proper shear and welding preparation
Automatic Shear and Welding: Cuts irregular tape parts and welds coil ends together
Feeder and Punching Machine: Automatically feeds steel strip to punching position with automatic mold changing
Forming and Sizing: Roller forms steel strip into round/square pipe with servo motor size adjustment
Cutting Machine: Cold saw cutting with ±1mm accuracy, high-power servo, and imported linear guide rail

Complete Equipment List

No.	Component
1	Uncoiler
2	Straightener & Leveler
3	Automatic shear and welding
4	Accumulator
5	Roller forming and sizing part
6	Cold saw
7	Runout table
8	Automatic packing and palletizing

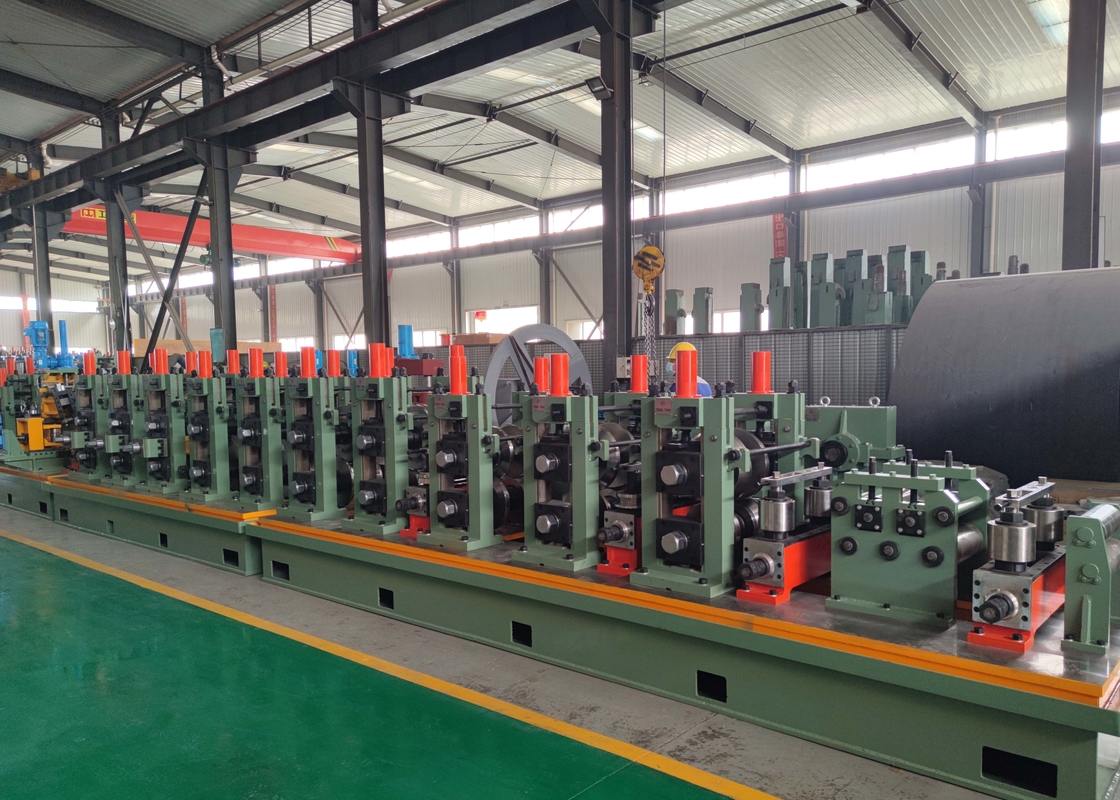

Factory Images
