Steel Tube Making Machine
>
Galvanized Thin Wall Steel Tube Making Machine 100 M/Min

Galvanized Thin Wall Steel Tube Making Machine 100 M/Min

Product Details:
Place of Origin: Hebei
Brand Name: TengTian
Certification: CE
Model Number: HG
Detail Information
Place of Origin:
Hebei
Brand Name:
TengTian
Certification:
CE
Model Number:
HG
Name:
Galvanized Thin Wall Steel Production Line 100 M/Min Steel Tube Making Machine
Materials:
Galvanized
Equipment Specification:
Customer Determined
Forming Method:
Roller Forming Tube Machine
Speed:
100 M/min
Warranty:
One Year
Material:
Low Carbon HRC
Forming Type:
Direct Forming
Work Shop:
100x18 M, H>3m ( Crane To Ground )
Highlight:

High Light

Highlight:

Galvanized steel pipe manufacturing machine

,

Thin Wall steel pipe manufacturing machine

,

Thin Wall steel pipe making machine

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
120 work days
Payment Terms:
L/C,T/T
Supply Ability:
50 Sets/Year
Product Description
Galvanized Thin Wall Steel Pipe Manufacturing Machine Production Line 100 M/Min
Product Specifications
Attribute Value
Name Galvanized Thin Wall Steel Production Line 100 M/Min Steel Tube Making Machine
Materials Galvanized
Equipment Specification Customer determined
Forming method Roller Forming Tube Machine
Speed 100 m/min
Warranty One year
Material Low carbon HRC
Forming type Direct forming
Work shop 100x18 m, H>3m (crane to ground)
Standard Product Models
No. Model Pipe Size Thickness Speed (m/min) Capacity (KW) HF (KW) Area (LxW in Metres)
1 HG20 ø8 - ø20 mm 0.3 - 1.5 mm 30 - 150 210 100 40*12
2 HG32 ø10 - ø32 mm 0.4 - 2.0 mm 30 - 150 300 150 40*12
3 HG50 ø16 - ø50 mm 0.7 -2.5 mm 30 - 150 410 200 60*12
4 HG60 ø22 - ø60 mm 0.9 - 3.0 mm 30 - 150 410 200 60*12
5 HG76 Ø25 - ø76 mm 1 - 4 mm 30 - 120 580 300 80*16
6 HG89 Ø32 - ø89 mm 1 - 4.5 mm 30 - 100 660 300 100*16
7 HG114 Ø45 - ø114 mm 1.5 -5 mm 30 - 80 920 400 100*16
8 HG140 Ø50 - ø140 mm 1.5 - 5.5 mm 30 - 80 920 400 100*16
9 HG165 Ø60 - ø165 mm 2 - 6 mm 30 - 60 1100 500 100*16
10 HG219 Ø114 - ø219mm 3 - 8 mm 20 - 45 1400 600 150*16
11 HG273 Ø114 - ø273mm 4 - 12 mm 15 - 30 2100 800 160*18
12 HG325 Ø165 - ø325 mm 4 - 14 mm 10 - 30 2500 1000 200*24
13 HG426 Ø165 - ø426 mm 4 - 16 mm 8 - 25 2900 1200 250*24
14 HG508 Ø219 - ø508 mm 5 - 18 mm 5 - 18 3400 1600 300*24
15 HG610 Ø355 - ø610 mm 5 - 18 mm 5 - 18 3700 1600 300*24
16 HG760 Ø426 - ø760 mm 5 - 20 mm 5 - 20 4300 1800 300*24
Product Overview
The Galvanized Thin Wall Steel Production Line features adjustable size capabilities and high compressive strength. This versatile machine is widely used in multiple industries including:
  • Automotive and railway vehicle manufacturing
  • Building construction (doors, windows, steel structures)
  • Transportation infrastructure (highway guardrails)
  • Electrical cabinets and shelving systems
  • Containers and steel formwork
  • Solar panel support structures
  • Shipbuilding and bridge construction
  • Agricultural machinery and furniture production
  • Municipal construction projects
Equipment Components
Uncoiler: Features single cone winding with double expansion and cantilever mandrels. Includes pneumatic system for mandrel expansion, contraction, and braking.
Straightener & Leveler: Prepares coil steel for processing by flattening strip heads and tails, ensuring proper alignment for subsequent welding operations.
Automatic Shear and Welding: Removes irregular tape sections and welds coil ends together for continuous operation.
Forming and Sizing: Shapes steel strip into round, square, or rectangular tubes with adjustable dimensions.
Cold Saw: Provides hydraulic cutting with ±5mm precision, featuring high-power servo drive and imported rack/pinion transmission.
Complete System Components
No. Component Name
1 Uncoiler
2 Straightener & leveler
3 Automatic shear and welding
4 Accumulator
5 Forming and sizing
6 Cold saw
7 Runout table
8 Automatic blanking and blocking

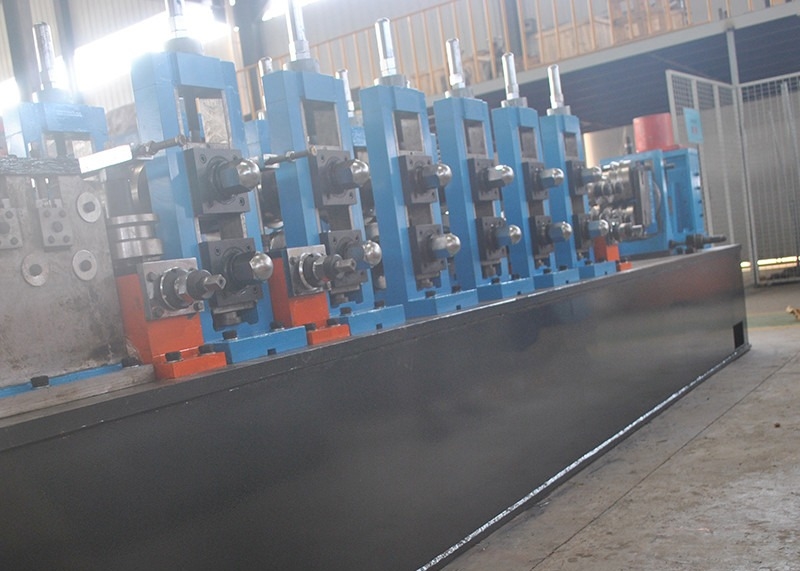

Factory Images
