6m-18m Length Welded HF Tube Mill 0-20m/Min Forming Speed
Product Specifications
| Attribute |
Value |
| Product Name |
6m-18m Length Welded Hf Tube Mill 0-20m/Min Forming Speed |
| High Frequency Power |
100KW-1000KW |
| Forming Speed |
0-20m/min |
| Pipe Length |
6m-18m |
| Forming Method |
Roll Forming |
| Voltage |
380V/50Hz/3Phase |
| Pipe Thickness |
0.5mm-50mm |
Product Overview

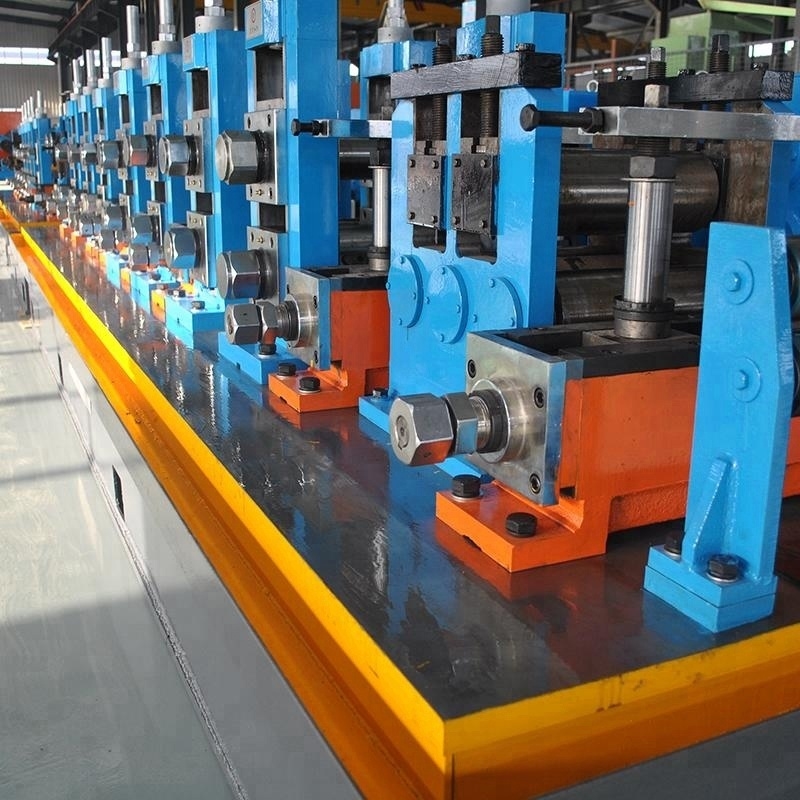

The Welded Pipe Mill is a high-efficiency welded pipe forming system designed for pipe production and tube forming operations. This industrial equipment produces welded pipes with thickness ranging from 0.5mm to 50mm and lengths from 6m to 18m. Featuring AC frequency conversion drive and a forming speed of 0-20m/min, the system includes an advanced PLC control system for highly automated production and superior forming quality.
Key Features
- Product Type: Welded Pipe Mill
- Forming Method: Roll Forming
- High Frequency Power: 100KW-1000KW
- Welding Speed: 0-25m/min
- Welding Method: High Frequency Induction Welding
Technical Parameters
| Parameter |
Value |
| Welding Speed |
0-25m/min |
| Control System |
PLC |
| Cooling System |
Water Cooling |
| Pipe Length |
6m-18m |
| Pipe Diameter |
6mm-720mm |
| Material Compatibility |
Carbon Steel, Alloy Steel, Stainless Steel |
| Forming Speed |
0-20m/min |
| Forming Method |
Roll Forming |
| Welding Method |
High Frequency Induction Welding |
| High Frequency Power |
100KW-1000KW |
Industrial Applications
This Welded Pipe Mill is widely used in power plants, petrochemical projects, chemical processing, and metallurgical applications. Certified by CE, ISO9000, and BV standards, it delivers high-precision welded pipes with exceptional production efficiency. The system supports various materials including carbon steel, alloy steel, and stainless steel, making it a versatile solution for diverse industrial requirements.
Customization Options
Hebeitengtian offers comprehensive customization services for welded pipe fabrication equipment, including:
- Custom designs for specific material requirements (carbon steel, alloy steel, stainless steel)
- Adjustable pipe diameters (6mm-720mm) and lengths (6m-18m)
- Production line design, fabrication, installation, and maintenance services
- High frequency induction welding technology for superior pipe quality
With CE, ISO9000, and BV certifications, Hebeitengtian provides reliable and cost-effective solutions for all welded pipe production needs.
Support & Services
Our technical support team is available 24/7 for product setup, operation guidance, and troubleshooting. We provide comprehensive services including installation, repair, and extended warranty options to ensure optimal performance of your Welded Pipe Mill.
Packaging & Shipping
The Welded Pipe Mill is securely packaged in waterproof materials and heavy-duty cardboard or wooden crates, then strapped to pallets for safe transportation. We offer flexible shipping options including ground, air, and sea freight to meet your specific requirements.
Frequently Asked Questions
What is the brand name of the Welded Pipe Mill?
The brand name is Hebeitengtian.
What certifications does the Welded Pipe Mill have?
CE, ISO9000, and BV certifications.
What is the minimum order quantity?
Minimum order quantity is 1 unit.
How long is the delivery time?
Standard delivery time is 1 month.
