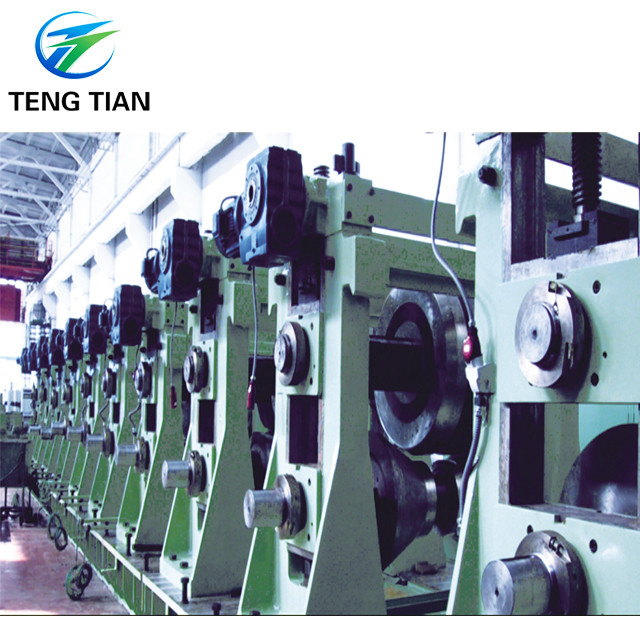

HG508 MS Steel Tube Making Machine for Round and Square Pipes

Name: HG508 MS Steel Tube Making Machine for Round and Square Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG508
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE, ISO9001
Model Number:	HG508

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE, ISO9001

Model Number:

HG508

Material Width:

100-300mm

Cutting Length:

Any Length

Control System:

PLC

Roller Stations:

18-20 Stations

Cutting System:

Hydraulic Cutting

Cutting Tolerance:

±2mm

Highlight:

High Light

Highlight:

MS steel tube making machine

Round steel tube making machine

Square steel pipe making machine

Trading Information

Minimum Order Quantity:

Price:

$100000 to $1 million

Delivery Time:

300days

Payment Terms:

CIF

Supply Ability:

30 SETS PER YEAR

Product Description

HG508 MS Steel Tube Making Machine For Round Pipe And Square Tube

Product Specifications

Attribute	Value
Material Width	100-300mm
Cutting Length	Any Length
Control System	PLC
Roller Stations	18-20 Stations
Cutting System	Hydraulic Cutting
Cutting Tolerance	±2mm

Product Overview

The HG 508x16 high frequency welded pipe production line manufactures welded steel pipes ranging from Φ219mm-Φ508mm with thickness of 4.0-16.0mm, and square pipes from 170x170-400x400mm with thickness of 4.0-16mm. Incorporating advanced global pipe making technology, our innovative production line design offers both economic and practical solutions.

Machine Specifications

Raw Material:

Material Quality	Q195, Q235B, Q355B, Galvanized Steel, MS, CR, HR
Mechanical Properties	σb≤500Mpa, σs≤325MPa
Strip Width	680-1600mm
Strip Thickness	4.0-16mm
Coil ID	Φ508-610mm
Coil OD	Φ1200mm-2100mm
Coil Weight	20.0T

Finished Product Specifications

Pipe Size	Round Pipe: φ219-φ508mm (Thickness: 4.0-16mm) Square Pipe: 170x170-400x400mm (Thickness: 4.0-15mm)
Length	4-6m
Application	Structure
