HG273 High Frequency Welded Pipe Mill 165-273mm Diameter 30m/min

Name: HG273 High Frequency Welded Pipe Mill 165-273mm Diameter 30m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG273
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHIAN
Brand Name:	TENGTIAN
Certification:	ISO9001,CE
Model Number:	HG273

Detail Information

Place of Origin:

CHIAN

Brand Name:

TENGTIAN

Certification:

ISO9001,CE

Model Number:

HG273

Product Name:

High Frequency Welded Pipe Mill Forming Speed 30m/Min Diameter 273mm

Key Words:

High Frequency Welded Pipe Mill

Diameter Range:

165mm-273mm

Wall Thickness Range:

6mm-12mm

Forming Speed:

15-30m/min

Voltage:

380V

Welding Power:

600KW

Welding Method:

High Frequency

Condition:

New

Warranty:

1 Year

Keyword:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

ss high frequency welded pipe mill

273mm high frequency welded pipe mill

273mm stainless steel tube mills

Trading Information

Minimum Order Quantity:

1 SET

Price:

$100000 to $1 million

Packaging Details:

Standard export package

Delivery Time:

3 months

Payment Terms:

L/C,T/T

Supply Ability:

30 sets per year

Product Description

High Frequency Welded Pipe Mill Forming Speed 30m/Min Diameter 273mm

Product Specifications

Attribute	Value
Diameter Range	165mm-273mm
Wall Thickness Range	6mm-12mm
Forming Speed	15-30m/min
Voltage	380V
Welding Power	600KW
Welding Method	High Frequency
Condition	New
Warranty	1 year

Product Description

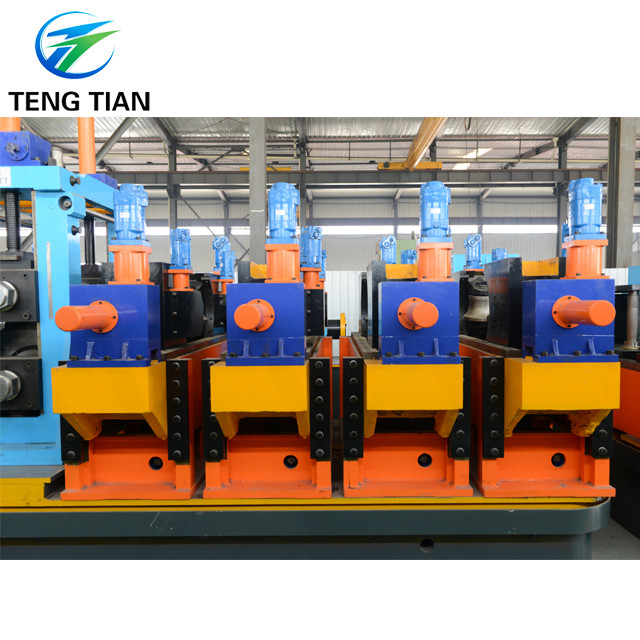

The HG 273 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of 165-273mm in diameter and 6-12mm in wall thickness. Featuring advanced roll pass design, this production line manufactures high-quality welded steel pipes with precision assembly. The forming speed reaches 15-30 meters per minute.

Material Specifications

Standard	International standard tube mill machine
Material	Galvanized steel
Outer Diameter of Coils	Φ165mm-Φ273mm
Forming Speed	Max 30m/min

Key Features

Product Name	HG273 High Frequency Welded Tube Mill
Voltage	380V/50Hz/3Phase
Welding Power	600KW
Type	High Frequency Welded Tube Mill
Cooling System	Water Cooling

Technical Specifications

Model	Specification(mm)	Thickness(mm)	Forming Speed(m/min)	Main Engine(KW)	Power(KW)	Area(m2)
HG32	Φ10-Φ32	0.4-1.5	30-120	250	100	12*40
HG50	Φ16-Φ76	0.7-2.5	30-120	400	150	12*60
HG76	Φ25-Φ76	1-4	30-100	400	300	16*80
HG89	Φ32-Φ89	1-4.5	30-80	500	300	16*100
HG114	Φ45-Φ114	1.5-5(3-7)	30-60	400	300	16*100
HG165	Φ60-Φ165	3-7(4-10)	30-50	600	400	16*100
HG219	Φ114-Φ219	4-8(5-16)	20-40	800	500	16*150
HG273	Φ114-Φ273	4-10(5-16)	15-30	1000	600	18*160
HG325	Φ165-Φ325	4-10(4-14)	10-30	1200	600	24*180
HG426	Φ165-Φ426	4-12.7(4-16)	8-25	1400	800	24*180
HG528	Φ219-Φ508	4-16	8-20	2000	1000	24*180

Working Process

Coil Car
Uncoiler
Pinching and Leveling
Shearing and Butt-welding
Loop Storage
Edge Moving
Forming
Welding
IF Annealing
Water Cooling
Online NDT Treating
Sizing
Cutting
Straightening
End-facing and beveling
Hydrostatic Testing
Product Inspection
Weight and Measuring
Painting and Marking
Storage
Packing

Packing and Shipping

The HG 273 High Frequency Welded Pipe Mill is packaged in secure, weatherproof containers designed to protect against shock, vibration, and moisture during transportation. Special packing materials ensure product safety during shipping. Each shipment includes an inspection certificate with the responsible inspector's name and signature.

Support and Services

On-site engineer for installation and operator training
One year quality guarantee with lifetime repair service
Pre-sale services including workshop and production output design
After-sale services including installation, training, and technical support
Option for extended engineer support (several months to 1 year)
Complete project design for stainless steel/carbon steel pipe production
Responsibility for loading and shipping arrangements

Quality Warranty

Our technical personnel will provide on-site debugging, maintenance, and training. When used according to specifications, the equipment carries a 12-month warranty from arrival date. For quality-related issues during normal operation, we provide free repair or replacement of damaged parts.

Frequently Asked Questions

Q1: What is the brand name of Max diameter 273mm High Frequency Welded Pipe Mill?

A1: The brand name is TENGTIAN.

Q2: What is the model number?

A2: The model number is HG273.

Q3: What wall thickness can the HG273 produce?

A3: 6mm to 12mm (custom thickness available).

Q4: Where is the place of origin?

A4: Hebei, China.

Q5: What certifications does the HG273 have?

A5: ISO and CE certified.

Q6: What is the minimum order quantity?

A6: 1 SET.
