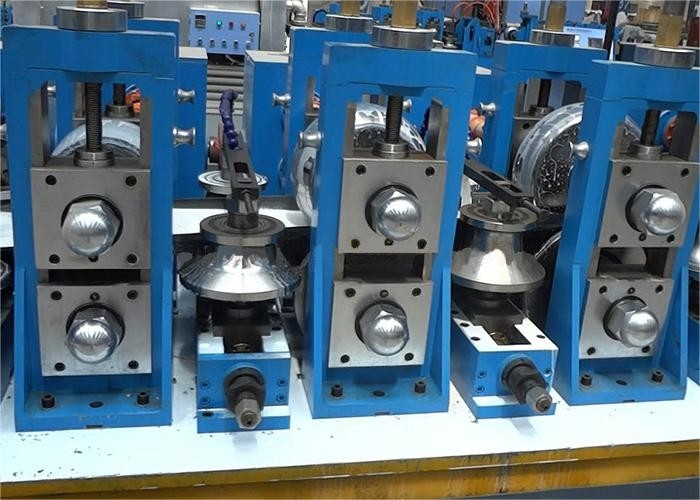

4.5mm High Frequency Welded Pipe Mill 380V 50Hz 32-89mm
4.5mm High Frequency Welded Pipe Mill 380V 50Hz 32-89mm
  • 4.5mm High Frequency Welded Pipe Mill 380V 50Hz 32-89mm
  • 4.5mm High Frequency Welded Pipe Mill 380V 50Hz 32-89mm
  • 4.5mm High Frequency Welded Pipe Mill 380V 50Hz 32-89mm

4.5mm High Frequency Welded Pipe Mill 380V 50Hz 32-89mm

Product Details:
Place of Origin: CHIAN
Brand Name: TENGTIAN
Certification: ISO CE
Model Number: HG89
Detail Information
Place of Origin:
CHIAN
Brand Name:
TENGTIAN
Certification:
ISO CE
Model Number:
HG89
Product Name:
High Frequency Welded Pipe Mill 4.5mm Thickness Stainless Steel Tube Mills High Frequency Welded 380V 50Hz
Key Words:
High Frequency Welded Pipe Mill
Forming Step:
7+5 Stand
Tube Diameter:
32mm-89mm
Tube Thickness:
1mm-4.5mm
Voltage:
380V/50Hz/3Phase
Welding Power:
300KW
Forming Speed:
30-80 M/min
Weight:
20T
Warranty:
One Year
Keywords:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

hfw stainless steel tube mills

,

380v stainless steel tube mills

,

stainless high frequency welded pipe mill

Trading Information
Minimum Order Quantity:
1 SET
Price:
$100000 to $1 million
Packaging Details:
Standard export package
Delivery Time:
3 months
Payment Terms:
L/C,T/T
Product Description
4.5mm Thickness Stainless Steel Tube Mills High Frequency Welded 380V 50Hz
Product Specifications
Attribute Value
Forming Step 7+5 Stand
Tube Diameter 32mm-89mm
Tube Thickness 1mm-4.5mm
Voltage 380V/50Hz/3Phase
Welding Power 300KW
Forming Speed 30-80 m/min
Weight 20T
Warranty One year
Product Description

The TENGTIAN High Frequency Welded Pipe Mill is a premium tube shaping and forming machine designed for producing high-quality welded pipes with diameters ranging from 32mm to 89mm and wall thicknesses from 1mm to 4.5mm. This CE and ISO9000 certified machine features advanced roll pass design for superior machining quality and high precision assembly.

Material Specifications
Standard International standard tube mill machine
Material Galvanized steel
Mechanical Properties σb≤520Mpa, σs≤365MPa
Key Features
  • Double-radius hole style design for improved efficiency
  • Water cooling system for optimal temperature control
  • High frequency welding technology (300KW power)
  • Forming speed: 30-80 m/min
  • CE and ISO9000 certified
Technical Specifications
Model Specification(mm) Thickness(mm) Forming Speed(m/min) Main Engine(KW) Power(KW)
HG32 Φ10-Φ32 0.4-1.5 30-120 250 100
HG50 Φ16-Φ76 0.7-2.5 30-120 400 150
HG76 Φ25-Φ76 1-4 30-100 400 300
HG89 Φ32-Φ89 1-4.5 30-80 500 300
Working Process
strip steel to coil → uncoiler → leveler → flattener → shear and welder → storage material unit → formed, welding, cooling, accurate pipe Dia. size → accurate pipe length size, cutting → end facing → inspection → package
Applications

Ideal for producing pipes from carbon steel, stainless steel, and alloy steel. Suitable for various industrial applications requiring high-quality welded pipes with precise dimensions.

Packing and Shipping

Machines are securely packaged in weatherproof containers with special shock-absorbing materials. Each shipment includes an inspection certificate signed by the responsible inspector.

Support and Services
  • On-site installation and operator training
  • One year quality guarantee with free repair parts (excluding human error)
  • Pre-sales services including workshop and production output design
  • Option for extended technical support (engineer available for several months to one year)
  • Responsible for loading and shipping arrangements
Frequently Asked Questions
Q: What is the brand name of this machine?
A: The brand name is TENGTIAN.
Q: What is the model number?
A: The model number is HG89.
Q: What certifications does this machine have?
A: It is CE and ISO9000 certified.
4.5mm High Frequency Welded Pipe Mill 380V 50Hz 32-89mm 0 4.5mm High Frequency Welded Pipe Mill 380V 50Hz 32-89mm 1 4.5mm High Frequency Welded Pipe Mill 380V 50Hz 32-89mm 2
