| Product Name: | High Frequency Welded Pipe Mill 4.5mm Thickness Stainless Steel Tube Mills High Frequency Welded 380V 50Hz | Key Words: | High Frequency Welded Pipe Mill |
|---|---|---|---|
| Forming Step: | 7+5 Stand | Tube Diameter: | 32mm-89mm |
| Tube Thickness: | 1mm-4.5mm | Voltage: | 380V/50Hz/3Phase |
| Welding Power: | 300KW | Forming Speed: | 30-80 M/min |
| Weight: | 20T | Warranty: | One Year |
| Keywords: | High Frequency Welded Pipe Mill | ||
| Highlight: | hfw stainless steel tube mills,380v stainless steel tube mills,stainless high frequency welded pipe mill |
||
4.5mm thickness High Frequency Welded Pipe Mill with 380V/50Hz

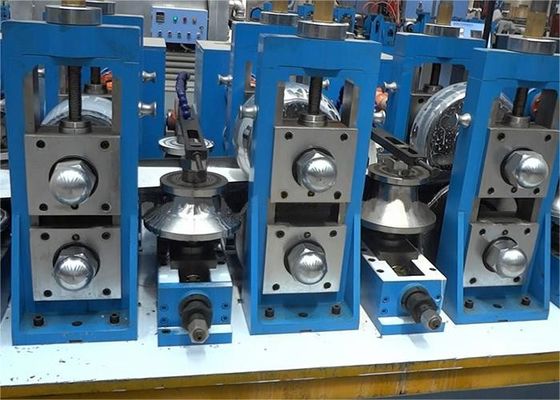

TENGTIAN Tube Mill Machine is a high-quality tube shaping and forming machine for producing tubes and pipes of different sizes.
4.5mm Thickness High-Frequency Welded Pipe Production Line is designed to produce welded pipes of Ф219-Ф508mm in diameter and 1-4.5mm in wall thickness. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.This machine is CE and ISO9000 certified, and has a minimum order quantity of 1. It is packed in special packaging for safe delivery within one month. Payment terms are negotiable.
According to the designing guideline of improving the operating character & environment and the safety & producing character , reducing the cost of the roller to guarantee high efficiency,4.5mm Thickness High-Frequency Welded Pipe Production Line adopts the double-radius hole style of design .
| Standard | International standard tube mill machine |
| Material | Galvanized steel |
| Mechanical properties | σb≤520Mpa,σs≤365MPa |
| Outer Diameter of Coils | Φ32mm-Φ89mm |
| Coil Weight | 20T |
| Forming Speed | 30-80m/min |
| Thickness Range | 1mm-4.5mm |
| Product Name: | 4.5mm Thickness High Frequency Welded Pipe Mill Max Diameter 89mm |
| Voltage | 380V/50Hz/3Phase |
| Welding Power | 300KW |
| Welding Method | High Frequency |
| Type | High Frequency Welded Tube Mil |
| Cooling System | Water Cooling |
| Model | Specification(mm) | Thickness(mm) | Forming Speed(m/min) | Main Engine(KW) | Power(KW) | Area(m2) |
| HG32 | Φ10-Φ32 | 0.4-1.5 | 30-120 | 250 | 100 | 12*40 |
| HG50 | Φ16-Φ76 | 0.7-2.5 | 30-120 | 400 | 150 | 12*60 |
| HG76 | Φ25-Φ76 | 1-4 | 30-100 | 400 | 300 | 16*80 |
| HG89 | Φ32-Φ89 | 1-4.5 | 30-80 | 500 | 300 | 16*100 |
| HG114 | Φ45-Φ114 | 1.5-5(3-7) | 30-60 | 400 | 300 | 16*100 |
| HG165 | Φ60-Φ165 | 3-7(4-10) | 30-50 | 600 | 400 | 16*100 |
| HG219 | Φ114-Φ219 | 4-8(5-16) | 20-40 | 800 | 500 | 16*150 |
| HG273 | Φ114-Φ273 | 4-10(5-16) | 15-30 | 1000 | 600 | 18*160 |
| HG325 | Φ165-Φ325 | 4-10(4-14) | 10-30 | 1200 | 600 | 24*180 |
| HG426 | Φ165-Φ426 | 4-12.7(4-16) | 8-25 | 1400 | 800 | 24*180 |
| HG528 | Φ219-Φ508 | 4-16 | 8-20 | 2000 | 1000 | 24*180 |
The TENGTIAN High Frequency Welded Pipe Mill Model Number 89 is a reliable and powerful machine designed for producing pipes of different diameters and materials with superior quality. It is equipped with advanced high-frequency welding technology and offers a wide range of welding applications. This machine has been certified with ISO and CE standards, and can be ordered in minimum quantities of one set. The delivery time is two to three months, and payment terms are LC and TT. The product is packed in standard export packages, and provides a one-year warranty.
TENGTIAN High Frequency Welded Pipe Mill Model Number 89 is ideal for welding pipes of carbon steel, stainless steel, and alloy steel. It has a power supply of 380V/50Hz/3Phase and offers a diameter range of 32mm to 89mm. The machine employs high-frequency welding technology to ensure superior quality products.
4.5mm Thickness High-Frequency Welded Pipe Mill is packaged and shipped in secure, weatherproof containers. The containers are designed to protect the product from shock, vibration, and moisture during transportation. Special packing materials are used to ensure the product is safe during shipping. The product is shipped with an inspection certificate, which includes the name and signature of the responsible inspector.
4.5mm Thickness High-Frequency Welded Pipe Mill Technical Support and Service:
1) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3) We supply the pre-sell and after-sell service.
Pre-sell service: workshop design, and production output design
After-sell service: installation and training, and the skilled engineer for working.
4) We can also sent the engineer working for you several months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5) We supply the pre-sell service Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6) We will be responsible for the loading and shipping.
Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.
Q1:What is the brand name of 4.5mm Thickness High-Frequency Welded Pipe Mill ?
A1:The brand name of it is TENGTIAN.
Q2:What is the model number of 4.5mm Thickness High-Frequency Welded Pipe Mill ?
A2:The model number of High Frequency Welded Pipe Mill is HG 89.
Q3:What is the width of the welded pipe that 4.5mm Thickness High-Frequency Welded Pipe Mill can produce?
A3:From 1mm to 4.5mm.We can make the thickness according to the customer's requirement.
Q4:Where is the place of origin of 4.5mm Thickness High-Frequency Welded Pipe Mill ?
A4:The place of origin of High Frequency Welded Pipe Mill is HeBei,China.
Q5:What kinds of certification does 4.5mm Thickness High-Frequency Welded Pipe Mill?
A5:High Frequency Welded Pipe Mill has ISO CE certification.
Q6:What is the minimum order quantity of High Frequency Welded Pipe Mill?
A6:The minimum order quantity of 4.5mm Thickness High-Frequency Welded Pipe Mill
is 1 SET.
Q7:Only 380V can this4.5mm Thickness High-Frequency Welded Pipe Mill operate?
A7:Actually,we can customize the power of the machine according to customer needs.
