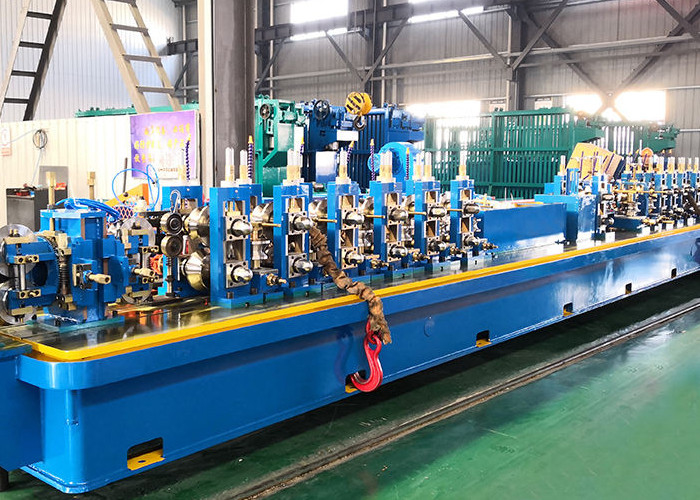

219mm High Precision Welded Pipe Mill for 4mm-8mm Tubes
219mm High Precision Welded Pipe Mill for 4mm-8mm Tubes
  • 219mm High Precision Welded Pipe Mill for 4mm-8mm Tubes
  • 219mm High Precision Welded Pipe Mill for 4mm-8mm Tubes
  • 219mm High Precision Welded Pipe Mill for 4mm-8mm Tubes

219mm High Precision Welded Pipe Mill for 4mm-8mm Tubes

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: ISO CE
Model Number: HG219
Detail Information
Place of Origin:
China
Brand Name:
TENGTIAN
Certification:
ISO CE
Model Number:
HG219
Product Name:
219mm Round Tube High Precision Welded Pipe Mill Diameter 4mm-8mm
Key Words:
High Precision Welded Pipe Mill
Forming Speed:
20-40m/min
Diameter Range:
114mm-219mm
Thickness Range:
4mm-8mm
Pipe Length:
6m
Welding Power:
500KW
Voltage:
380V/50Hz/3Phase
Error:
±0.05mm
Warranty:
One Year
Keyword:
Precision Tube Mill
Highlight:

High Light

Highlight:

219mm precision tube mill

,

Welded Round precision tube mill

,

219mm tube mill machine

Trading Information
Minimum Order Quantity:
1 SET
Price:
$100000 to $1 million
Packaging Details:
Standard export package
Delivery Time:
3 months
Payment Terms:
L/C,T/T
Supply Ability:
25
Product Description
219mm Round Tube High Precision Welded Pipe Mill Diameter 4mm-8mm
Product Overview
TENGTIAN 219mm Round Tube High Precision Welded Pipe Mill Machine is a high-quality tube shaping and forming machine for producing tubes and pipes of different sizes. This CE and ISO9000 certified machine features a minimum order quantity of 1, with special packaging for safe delivery within one month.
Key Specifications
Attribute Value
Forming Speed 20-40m/min
Diameter Range 114mm-219mm
Thickness Range 4mm-8mm
Pipe Length 6m
Welding Power 500KW
Voltage 380V/50Hz/3Phase
Error Tolerance ±0.05mm
Warranty One year
Product Features
This high precision welded pipe mill is designed to shape metal and other materials into tubes with exceptional accuracy (±0.05mm tolerance). Suitable for various materials including carbon steel, stainless steel, copper, and aluminum.
  • Roll forming process for consistent quality
  • 100% Eddy Current Test inspection
  • Multiple surface treatment options available
  • Standard 6m pipe length
  • ISO and CE certified
Technical Parameters
Parameter Value
Material Carbon Steel, Stainless Steel, Copper, Aluminum
Surface Treatment Pickling, Passivation, Polishing, Anodizing, Plating, Coating
Application Automotive, Aerospace, Medical, Electronics, Furniture
MOQ 1 Set
Working Process
Coil Car→Uncoiler→Pinching and Leveling→Shearing and Butt-welding→Loop Storage→Edge Moving→Forming→Welding→IF Annealing→Water Cooling→Online NDT Treating→Sizing→Cutting→Straightening→End-facing and beveling→Hydrostatic Testing→Product Inspection→Weight and Measuring→Painting and Marking→Storage→Packing
219mm High Precision Welded Pipe Mill for 4mm-8mm Tubes 0
Support and Services
We provide comprehensive technical support including installation, maintenance, and repair services. Our experienced engineers offer customized solutions, on-site training, and remote troubleshooting.
Packing and Shipping
  • Securely packaged in wooden crates or boxes
  • Clearly labeled with part number and description
  • Shipped via ground or air freight
  • Fully insured shipments
Frequently Asked Questions
Q: What is the brand name of this Precision Tube Mill?
A: The brand name is TENGTIAN.
Q: What is the model number?
A: The model number is 219.
Q: Where is this machine produced?
A: It is produced in China.
Q: Can this machine operate on voltages other than 380V?
A: Yes, we can customize the power requirements according to customer needs.
219mm High Precision Welded Pipe Mill for 4mm-8mm Tubes 1 219mm High Precision Welded Pipe Mill for 4mm-8mm Tubes 2 219mm High Precision Welded Pipe Mill for 4mm-8mm Tubes 3
