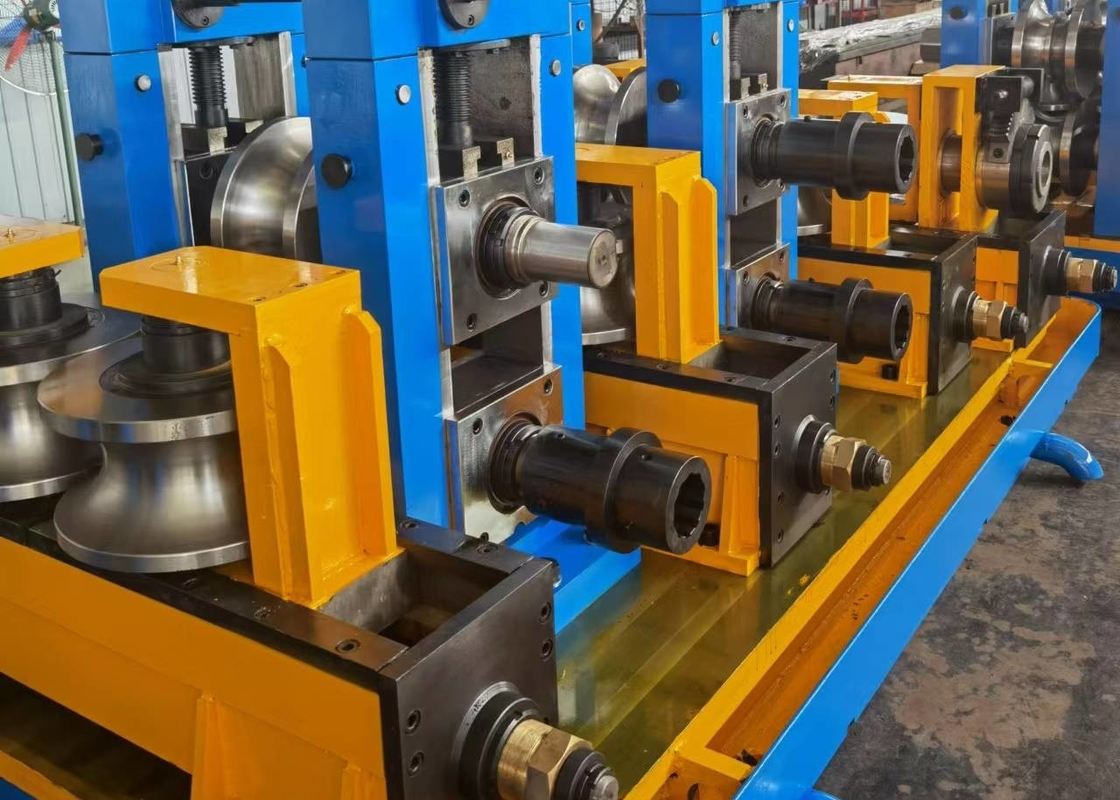

Precision Tube Mill for 25.4-76mm Carbon Steel Pipes
  • Precision Tube Mill for 25.4-76mm Carbon Steel Pipes
  • Precision Tube Mill for 25.4-76mm Carbon Steel Pipes
  • Precision Tube Mill for 25.4-76mm Carbon Steel Pipes
  • Precision Tube Mill for 25.4-76mm Carbon Steel Pipes
  • Precision Tube Mill for 25.4-76mm Carbon Steel Pipes
  • Precision Tube Mill for 25.4-76mm Carbon Steel Pipes
  • Precision Tube Mill for 25.4-76mm Carbon Steel Pipes

Precision Tube Mill for 25.4-76mm Carbon Steel Pipes

Product Details:
Place of Origin: Shijiazhuang China
Brand Name: Tengtian
Certification: CE,ISO9001,BV
Model Number: HG76
Detail Information
Place of Origin:
Shijiazhuang China
Brand Name:
Tengtian
Certification:
CE,ISO9001,BV
Model Number:
HG76
Product Name:
Precision Tube Mill With Mechanical Properties Of Sigma B Le 380Mpa And Sigma S Le 275MPa
Diameter:
25.4-76 Mm
Power:
380V, 50Hz, 3 Phase
Keyword:
Precision Tube Mill
Control System:
PLC
Voltage:
380V/50Hz
Pipe Diameter:
25.4-76mm
Plate Thickness:
0.9-5mmm
Adjustment Ty:
By Turbine Worm
Product:
Round Pipe And Square Pipe
Production Speed:
40-100m/min
Warranty:
1 Year
Roller Material:
Cr12MoV
Adjustment Type:
By Turbine Worm
Key Word:
Precision Tube Mill
Highlight:

High Light

Highlight:

professional precision tube mill

,

high speed precision tube mill

,

tube mill machine high speed precision

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
Standard Export Packing
Delivery Time:
90 days
Payment Terms:
L/C,T/T
Supply Ability:
25 sets yearly
Product Description
Precision Tube Mill with Mechanical Properties of σb ≤ 380Mpa and σs ≤ 275MPa
Product Specifications
Attribute Value
Diameter 25.4-76 mm
Power 380V, 50Hz, 3 Phase
Control System PLC
Pipe Diameter 25.4-76mm
Plate Thickness 0.9-5mm
Adjustment Type By turbine worm
Production Speed 40-100m/min
Warranty 1 year
Roller Material Cr12MoV
Carbon Steel Pipe Roll Forming Precision Tube Mill

Our OEM Carbon Steel Pipe Roll Forming Precision Tube Mill is designed for manufacturing welded steel pipes with high precision. Incorporating advanced pipe making technology from domestic and international sources, we can produce tubes of various sizes and shapes according to customer requirements.

Material Specifications
Standard: YB189-64
Material: Low carbon steel and low alloy constructional steel
Mechanical properties: σb ≤ 380Mpa, σs ≤ 275MPa
Strip width: 80-400mm
Strip thickness: 2.0-5.0mm
I.D of Coils: Φ508mm
O.D of Coils: φ1800mm
Coil Weight: ≤5T
Welded Pipe Specifications
Tube size: 25.4mm-76mm
Pipe thickness: 2.0-5.0mm
Finish pipe length: 4-8m
Cut length accuracy: ±2mm
Forming speed: 30-80m/min
Technological Process
  • Strip steel to coil
  • Uncoiler
  • Shear welder
  • Storage material unit
  • Forming, welding, cooling
  • Accurate pipe diameter sizing
  • Accurate pipe length sizing and cutting
  • Inspection
  • Packaging
ERW Tube Mill Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20
Precision Tube Mill for 25.4-76mm Carbon Steel Pipes 0 Precision Tube Mill for 25.4-76mm Carbon Steel Pipes 1
