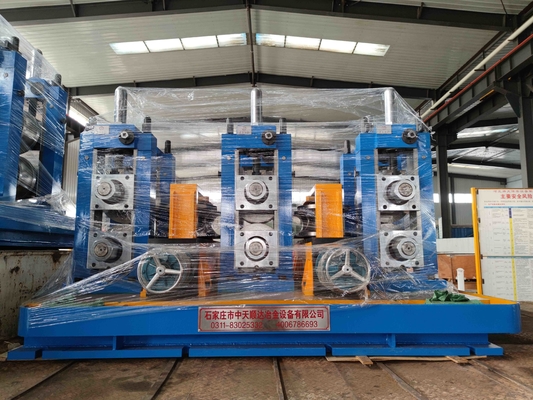

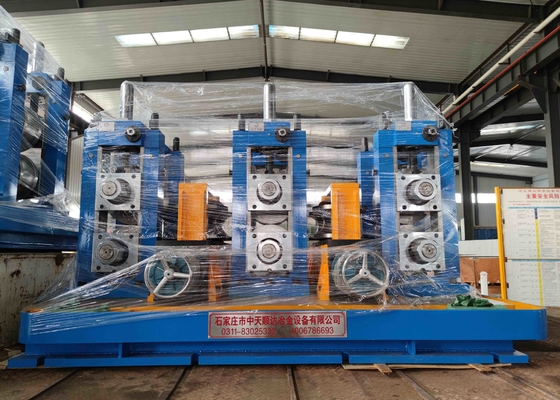

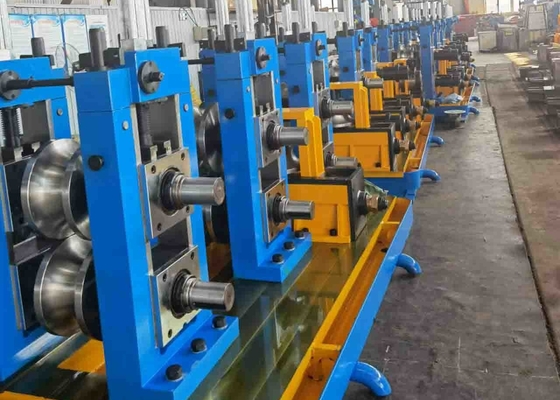

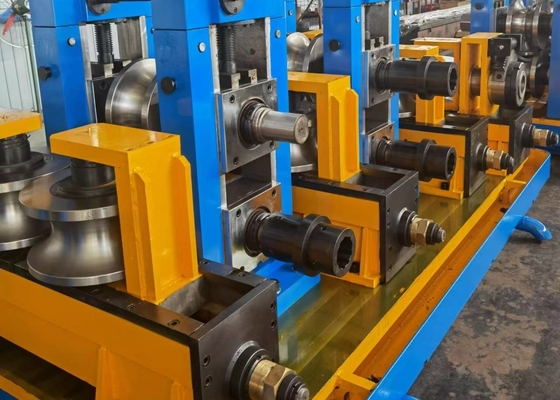

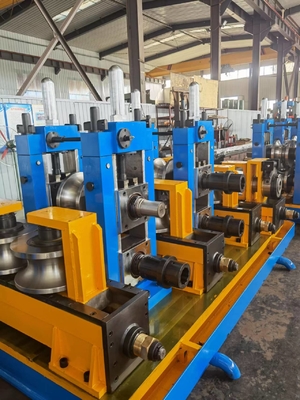

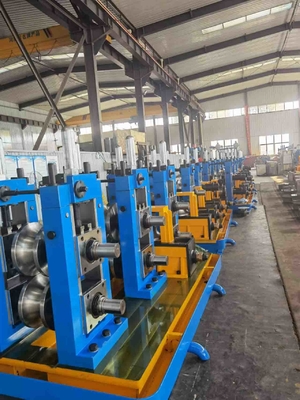

Precision Tube Mill with Mechanical Properties of sigma b le 380Mpa and sigma s le 275MPa

Precision Tube Mill with Mechanical Properties of sigma b le 380Mpa and sigma s le 275MPa
Precision Tube Mill with Mechanical Properties of sigma b le 380Mpa and sigma s le 275MPa Precision Tube Mill with Mechanical Properties of sigma b le 380Mpa and sigma s le 275MPa Precision Tube Mill with Mechanical Properties of sigma b le 380Mpa and sigma s le 275MPa Precision Tube Mill with Mechanical Properties of sigma b le 380Mpa and sigma s le 275MPa Precision Tube Mill with Mechanical Properties of sigma b le 380Mpa and sigma s le 275MPa Precision Tube Mill with Mechanical Properties of sigma b le 380Mpa and sigma s le 275MPa

Large Image :  Precision Tube Mill with Mechanical Properties of sigma b le 380Mpa and sigma s le 275MPa

Product Details:
Place of Origin: Shijiazhuang China
Brand Name: Tengtian
Certification: CE,ISO9001,BV
Model Number: HG76
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $100000 to $1 million
Packaging Details: Standard Export Packing
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 25 sets yearly
Contact Now
Detailed Product Description
Product Name: Precision Tube Mill With Mechanical Properties Of Sigma B Le 380Mpa And Sigma S Le 275MPa Diameter: 25.4-76 Mm
Power: 380V, 50Hz, 3 Phase Keyword: Precision Tube Mill
Control System: PLC Voltage: 380V/50Hz
Pipe Diameter: 25.4-76mm Plate Thickness: 0.9-5mmm
Adjustment Ty: By Turbine Worm Product: Round Pipe And Square Pipe
Production Speed: 40-100m/min Warranty: 1 Year
Roller Material: Cr12MoV Adjustment Type: By Turbine Worm
Key Word: Precision Tube Mill
Highlight:

professional precision tube mill

,

high speed precision tube mill

,

tube mill machine high speed precision

Carbon Steel Pipe Roll Forming Precision Tube Mill

Product Description:

OEM Carbon Steel Pipe Roll Forming Precision Tube Mill is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, can product different size,shape tube and ensure the tube precision. Pipe thickness: 2.0-5.0mm,we has different model tube mill machine,also can design according to customer different require.



Main Parameters and Specifications:

Material Specifications

Conforming to the YB189-64 standard
Material Low carbon steel and low alloy constructional steel
Mechanical properties σb≤380Mpa,σs≤275MPa
strip width 80～400mm
strip thickness 2.0～5.0mm
I.D of Coils Φ508mm
O.D of Coils φ1800mm
Coil Weight

≤5T

















Welded Pipe Specification

 tube size 25.4mm-76mm
pipe thickness 2.0-5.0mm
Finish pipe length 4-8m
Cut length accuracy ±2mm
Forming speed

30-80m/min













Technological process

strip steel to coil→uncoiler →shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

ERW Tube Mill Other Model



Model Diameter Range Pipe Thickness Line Speed(m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20



Precision Tube Mill with Mechanical Properties of sigma b le 380Mpa and sigma s le 275MPa 0



 Precision Tube Mill with Mechanical Properties of sigma b le 380Mpa and sigma s le 275MPa 1
