High Precision Tube Mill HG273 for φ114-273mm Welded Pipes

Name: High Precision Tube Mill HG273 for φ114-273mm Welded Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG273
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	ISO CE
Model Number:	HG273

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

ISO CE

Model Number:

HG273

Product Name:

High Precision Tube Mill For Welded Pipes Phi 114- 273mm In Hotels Manufacturing Plant Construction Works Energy Mining

Key Word:

High Precision Pipe Rolling Mill

Model:

HG273

Specification:

φ114mm-φ273mm

Pipe Thickness:

6-12mm

Forming Speed:

15-30m/min

Power:

600KW

Voltage:

380V

Keyword:

Precision Tube Mill

Highlight:

High Light

Highlight:

273mm diameter pipe rolling mill

high precision pipe rolling mill

tube mill machine with accumulator

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Standard export package

Delivery Time:

3 months

Payment Terms:

L/C,T/T

Product Description

High Precision Tube Mill for Welded Pipes φ114-273mm

Industrial-Grade Pipe Forming Equipment for Manufacturing Plants, Construction, and Energy Sectors

Product Specifications

Attribute	Value
Model	HG273
Diameter Range	φ114mm-φ273mm
Pipe Thickness	6-12mm
Forming Speed	15-30m/min
Power	600KW
Voltage	380V

Product Overview

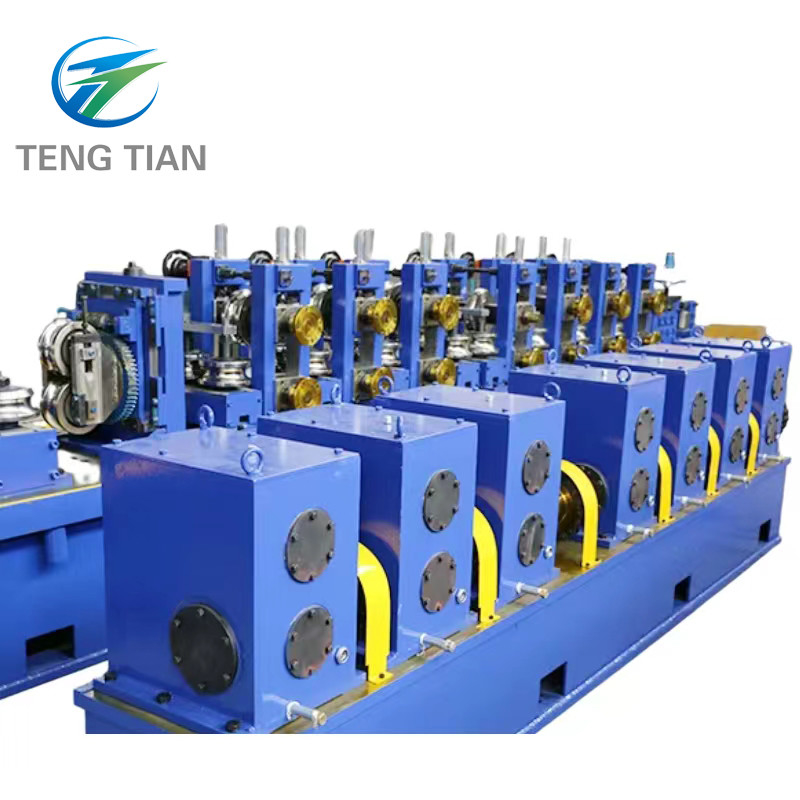

The 273mm Diameter High Precision Pipe Rolling Mill with Accumulator is an advanced tube forming system designed for manufacturing precision welded pipes. This industrial-grade equipment produces high-accuracy tubes for diverse applications including construction, energy, mining, and manufacturing plants.

Key Features

Feature	Detail
Forming Process	Roll Forming
Inspection	100% Eddy Current Test
Material Compatibility	Carbon Steel, Stainless Steel, Copper, Aluminum
Tolerance	±0.05mm
Standard Length	6m

Production Process

material(steel coil) → uncoiler → shear and welder → horizontal accumulator → forming mill → HF solid welder → sizing mill → roughly straightening → cut off machine → run out table

Customization Options

Brand: TENGTIAN
Certification: ISO CE
Delivery Time: 2-3 months
Packaging: Standard export package
Payment Terms: LC/TT

Technical Support & Services

On-site engineer support for installation and operator training

1-year quality guarantee with lifetime repair support

Pre-sales services including workshop and production output design

Extended engineer support available for production optimization

Comprehensive project design services for pipe manufacturing

Full responsibility for loading and shipping arrangements
