High Precision Tube Mill Machine 45-114mm Diameter 30-60m/min
High Precision Tube Mill Machine 45-114mm Diameter 30-60m/min
  • High Precision Tube Mill Machine 45-114mm Diameter 30-60m/min
  • High Precision Tube Mill Machine 45-114mm Diameter 30-60m/min
  • High Precision Tube Mill Machine 45-114mm Diameter 30-60m/min
  • High Precision Tube Mill Machine 45-114mm Diameter 30-60m/min

High Precision Tube Mill Machine 45-114mm Diameter 30-60m/min

Product Details:
Place of Origin: China HeBei
Brand Name: TengTian
Certification: ISO CE
Model Number: HG114
Detail Information
Place of Origin:
China HeBei
Brand Name:
TengTian
Certification:
ISO CE
Model Number:
HG114
Product Name:
High Precision Pipe And Tube Mill Machine With FF Foming System
Key Words:
High Precision Pipe And Tube Mill Machine
Pipe Diameter:
45mm-114mm
Pipe Thickness:
1.5mm-5.0mm
Forming Speed:
30-60m/min
Engine:
400KW
Power:
300KW
Dimension:
100m*16m*2m
Color:
Customized
After-sale Service:
Oversea Service
Highlight:

High Light

Highlight:

FF Foming System steel pipe mill

,

High Precision Tube Mill Machine

,

High Precision steel pipe mill

Trading Information
Minimum Order Quantity:
1set
Price:
$100000 to $1 million
Packaging Details:
Standard export package
Delivery Time:
3 months
Payment Terms:
L/C,T/T
Product Description
High Precision Pipe And Tube Mill Machine With FF Forming System
Product Specifications
Attribute Value
Product Name High Precision Pipe And Tube Mill Machine With FF Forming System
Pipe Diameter 45mm-114mm
Pipe Thickness 1.5mm-5.0mm
Forming Speed 30-60m/min
Engine 400KW
Power 300KW
Dimension 100m*16m*2m
Color Customized
After-sale service Oversea service
Product Overview

The TengTian High Precision Pipe and Tube Mill Machine is essential equipment for tube manufacturing, shaping, and forming. Designed with a wall thickness of 2mm and PLC control system, it reaches speeds up to 100m/min. Chrome-plated rollers ensure durability, while the 50 Hz frequency makes it suitable for most industrial applications.

Key Features
  • Minimum Order Quantity: 1 Set
  • Forming Process: Roll Forming
  • Quality Inspection: 100% Eddy Current Test
  • Applications: Automotive, Aerospace, Medical, Electronics, Furniture
  • Standard Length: 6-12m
Technical Parameters
Model Diameter(mm) Thickness(mm) Forming Speed(m/min) Main Engine(KW) Power(KW) Area(m²)
HG32 Φ10-Φ32 0.4-1.5 30-120 250 100 12*40
HG50 Φ16-Φ76 0.7-2.5 30-120 400 150 12*60
HG76 Φ25-Φ76 1-4 30-100 400 300 16*80
HG89 Φ32-Φ89 1-4.5 30-80 500 300 16*100
HG114 Φ45-Φ114 1.5-5(3-7) 30-60 400 300 16*100
Working Process
Coil Car → Uncoiler → Pinching and Leveling → Shearing and Butt-welding → Loop Storage → Edge Moving → Forming → Welding → IF Annealing → Water Cooling → Online NDT Treating → Sizing → Cutting → Straightening → End-facing and beveling → Hydrostatic Testing → Product Inspection → Weight and Measuring → Painting and Marking → Storage → Packing
Packaging and Shipping
  • Engineer provided for installation and operator training
  • One year quality guarantee with life-long repair service
  • Pre-sale services including workshop and production output design
  • Option for extended engineer support (several months to 1 year)
  • Complete project design services for stainless/carbon steel pipe production
  • Responsible for loading and shipping arrangements
Support and Services

TENGTIAN is China's leading Tube Mill Machine brand, CE and ISO9001 certified. Our machines offer efficient, cost-effective tubing manufacturing with high quality output, low power consumption, and fast forming speeds. Standard features include:

  • Minimum Order Quantity: 1 unit
  • Packaging: Wooden box or container
  • Delivery Time: 240 days
  • Payment Terms: FOB
  • Annual Production Capacity: 30 sets
  • Power Supply: 380V/50Hz
  • Customizable tube diameters

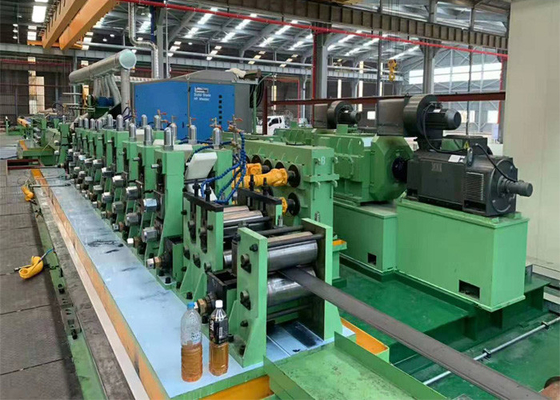

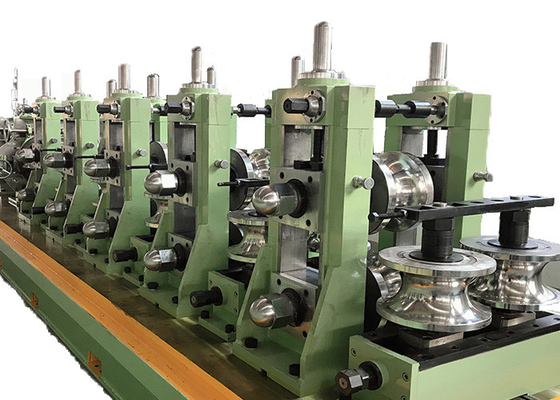

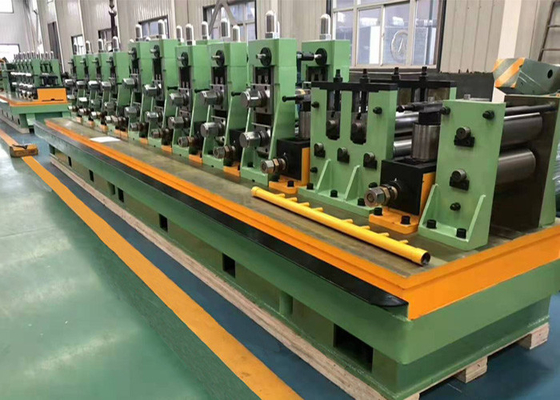

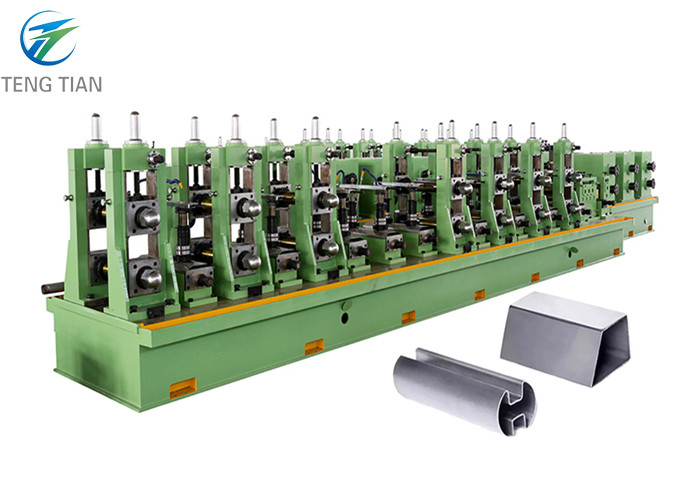

High Precision Tube Mill Machine 45-114mm Diameter 30-60m/min 0 High Precision Tube Mill Machine 45-114mm Diameter 30-60m/min 1 High Precision Tube Mill Machine 45-114mm Diameter 30-60m/min 2 High Precision Tube Mill Machine 45-114mm Diameter 30-60m/min 3
