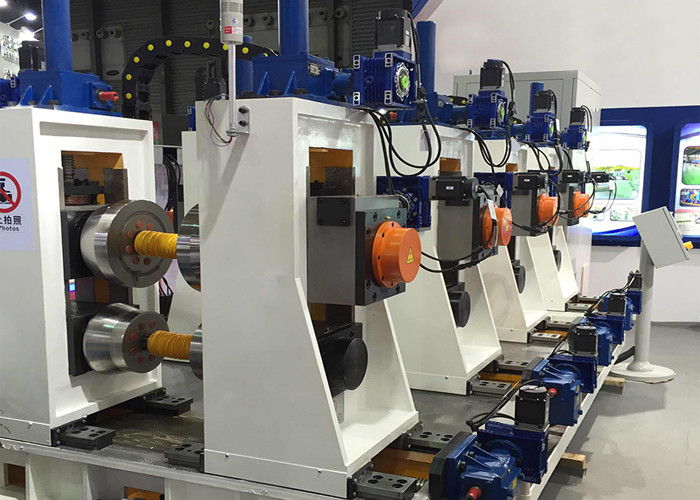

Customized Automatic Welded Pipe Machine for Square Tubes 2-6mm

Name: Customized Automatic Welded Pipe Machine for Square Tubes 2-6mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG140
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China HeBei
Brand Name:	TengTian
Certification:	ISO CE
Model Number:	HG140

Detail Information

Place of Origin:

China HeBei

Brand Name:

TengTian

Certification:

ISO CE

Model Number:

HG140

Product Name:

Customized Automatic Welded Pipe Machine Low Power Consumption

Key Words:

Customized Automatic Welded Pipe Machine

Technology:

FF Forming

Tube Shape:

Square

Tube Thickness:

2mm-6mm

Pipe Length:

Weight:

20000kg

Advantage:

Easy To Operate

Warranty:

One Year

After Sale Service:

Overseas Service

Highlight:

High Light

Highlight:

Customized pipe mill machine

Customized Automatic Welded Pipe Machine

Low Power Consumption pipe mill machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Standard export package

Delivery Time:

3 months

Payment Terms:

L/C,T/T

Product Description

Customized Automatic Welded Pipe Machine Low Power Consumption Automatic Tube Mill

Product Specifications

Attribute	Value
Product Name	Customized Automatic Welded Pipe Machine Low Power Consumption
Technology	FF Forming
Tube Shape	Square
Tube Thickness	2mm-6mm
Pipe Length	6m
Weight	20000kg
Advantage	Easy to operate
Warranty	One year
After sale service	Overseas Service

Product Overview

TENGTIAN Automatic Tube Mill Machine is an automated tubular manufacturer designed to efficiently produce steel tubing of custom sizes with automatic operation. This solution provides reliable and efficient roll forming of steel tubing with consistent quality, fast production rates, and great precision.

Key benefits include reduced labor costs, improved accuracy, and streamlined production processes. The machine ensures reliable, durable performance while being easy to operate, making it cost-effective for manufacturing operations.

Technical Specifications

Model	Diameter(mm)	Thickness(mm)	Forming Speed(m/min)	Main Engine(KW)	Power(KW)	Area(m²)
HG32	Φ10-Φ32	0.4-1.5	30-120	250	100	12*40
HG50	Φ16-Φ76	0.7-2.5	30-120	400	150	12*60
HG76	Φ25-Φ76	1-4	30-100	400	300	16*80
HG89	Φ32-Φ89	1-4.5	30-80	500	300	16*100
HG114	Φ45-Φ114	1.5-5(3-7)	30-60	400	300	16*100
HG165	Φ60-Φ165	3-7(4-10)	30-50	600	400	16*100
HG219	Φ114-Φ219	4-8(5-16)	20-40	800	500	16*150
HG273	Φ114-Φ273	4-10(5-16)	15-30	1000	600	18*160
HG325	Φ165-Φ325	4-10(4-14)	10-30	1200	600	24*180
HG426	Φ165-Φ426	4-12.7(4-16)	8-25	1400	800	24*180
HG528	Φ219-Φ508	4-16	8-20	2000	1000	24*180

Key Features

Highly Automated Tubing Manufacturer
Automatic Welded Pipe Machine
Precision Roll Forming System
Low Power Consumption Operation

Applications

This high-performance automated tube mill provides superior forming accuracy and speed for various materials including steel, aluminum, and copper. Certified CE and ISO9001, it's ideal for:

Construction industry applications
Automotive component manufacturing
Industrial equipment production
Custom profile fabrication

Working Process

Coil Car
Uncoiler
Pinching and Leveling
Shearing and Butt-welding
Loop Storage
Edge Moving
Forming
Welding
IF Annealing
Water Cooling
Online NDT Treating
Sizing
Cutting
Straightening
End-facing and beveling
Hydrostatic Testing
Product Inspection
Weight and Measuring
Painting and Marking
Storage
Packing

Packing and Shipping

Securely packaged in wooden crates or boxes
Clear labeling with part number, description, and quantity
Shipping via ground or air freight based on size and weight
Full value insurance on all shipments

Support and Services

On-site engineer for installation and operator training
One year quality guarantee with lifetime repair support
Pre-sales services including workshop and production design
Extended engineer support available for production optimization

Frequently Asked Questions

What's the application of the Automatic Welded Pipe Machine?

The machine produces building materials pipe used for construction, drainage, energy supply, and various profiles including extruded and cold bending applications.

How about the welded pipe size for diameter and wall thickness?

Carbon steel pipe diameter can be customized from 25-606mm with wall thickness 0.5-25mm for different applications.

What's the raw material (strip) width apply in welded pipe forming line?

We customize machines to requirements, with suitable steel strip width from 100mm to 1000mm, or designed to your specifications.

How about the after-sales service, including installation, commissioning and training?

We provide operation manuals and video tutorials, with free training at our plant. Technicians can be sent to your site (expenses covered by your company).
