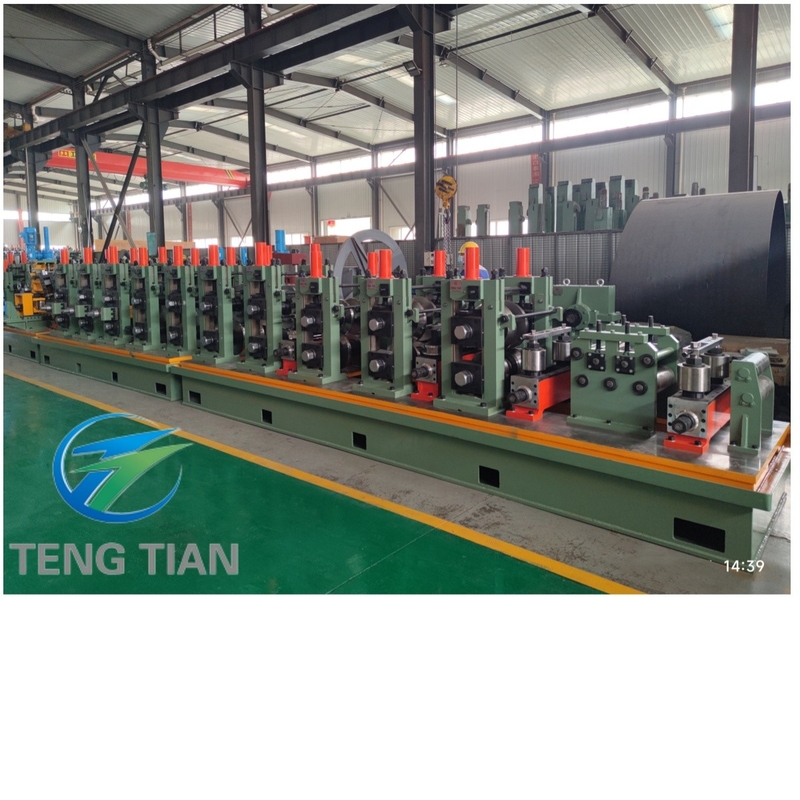

Automatic Tube Mill for Steel Pipe Production 10-508mm

Product Details:

Place of Origin:	China
Brand Name:	TengTian
Certification:	CE,BV,ISO
Model Number:	F75

Detail Information

Place of Origin:

China

Brand Name:

TengTian

Certification:

CE,BV,ISO

Model Number:

F75

Product:

Automatic Tube Mill

Key Word:

Automatic Steel Tube Making Machine

Power Supply:

380V/50Hz

Other Pipe:

Square Pipe

Application:

Tube Production

Spec:

Custom

Cutting Method:

Cold Saw

Welding Type:

High Frequency Welding

Production Period:

3 Month

Material:

Carbon Steel, Stainless Steel, Galvanized Steel

Highlight:

High Light

Highlight:

Straight Seam Welded tube mill machine

User Friendly Automatic Tube Mill

Straight Seam Welded Automatic Tube Mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

nude packing of Tube Mill Machine, motor covered with wooded case

Delivery Time:

90 days

Payment Terms:

T/T,L/C

Product Description

Straight Seam Welded Automatic Tube Mill Machine with Quick Switching

Product Specifications

Attribute	Value
Product	Automatic Tube Mill
Power Supply	380V/50Hz
Other Pipe	Square pipe
Application	Tube Production
Spec	Custom
Cutting Method	Cold saw
Welding Type	High frequency welding
Production Period	3 months
Material	Carbon steel, stainless steel, galvanized steel

Product Description

The Straight Seam Welded Automatic Tube Mill features advanced technical characteristics, utilizing the world's most advanced FFX/FF forming system. Designed with German COPRA roll forming software, this unit ensures stable forming, excellent steel surface quality, and easy specification changes.

Key Specifications

Pipe diameter: Ø10mm - Ø508mm
Wall thickness: 0.7mm - 16mm

Model Series

Model	Spec.	Thickness	Forming Speed	Main Section Capacity	Solid Welder	Area
HG75	Ø22-Ø75	1-4(mm)	max 100 (m/min)	400 kw	300 kw	16x80(m³)

Production Lines

No.	Model	Thickness(mm)	Specification(mm)	Speed(m/min)	Main Engine(kw)	Power(kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160

Working Process

Strip steel to coil → Uncoiler → Shear welder → Storage material unit → Formed, welding, cooling, accurate pipe diameter size → Accurate pipe length size, cutting → Inspection → Package
