Automatic Tube Mill for 30x30-100x100mm Square Pipes High Frequency Welding

Name: Automatic Tube Mill for 30x30-100x100mm Square Pipes High Frequency Welding
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG100
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shijiazhuang China
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG100

Detail Information

Place of Origin:

Shijiazhuang China

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG100

Other Pipe:

Square Pipe

Cutting Method:

Cold Saw

Size:

Customized

Pipe Thickness:

4-12mm

Welding Type:

High Frequency Welding

Welding Method:

High Frequency Welding

Pipe Shape:

Square Rectangular And Profile Pipe

Tube Shape:

Square And Rectangular

Running Speed:

Max. 60 M / Min

Rollers:

Include

Application:

Tube Production

Processing Accuracy:

High

Product Size:

Customer Specified

Motor Power:

22KW

Forming Speed:

High Speed

Highlight:

High Light

Highlight:

100x100mm Tube Mill

DFT Tube Mill

DFT Automatic Tube Mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Standard Export Packing

Delivery Time:

120 days

Payment Terms:

L/C,T/T

Product Description

30x30-100x100mm Square Pipes Automatic Tube Mill With DFT Technology

Product Specifications

Attribute	Value
Other Pipe	square pipe
Cutting Method	cold saw
Size	Customized
Pipe Thickness	4-12mm
Welding Type	High Frequency Welding
Welding Method	High Frequency Welding
Pipe Shape	square rectangular and profile pipe
Tube Shape	square and rectangular
Running Speed	Max. 60 m / min
Rollers	include
Application	Tube Production
Processing Accuracy	High
Product Size	customer specified
Motor Power	22KW
Forming Speed	High Speed

Product Overview

The HG100 Automatic Tube Mill is engineered to produce high-quality square pipes ranging from 30x30mm to 100x100mm with thicknesses of 1-3mm. This precision machine utilizes advanced roll pass design and high-frequency welding technology to deliver superior pipe quality with excellent dimensional accuracy.

Key Features

Direct Forming Square Pipe Mill technology
Capable of producing pipes up to 100x100mm
Fully automated operation for consistent quality
High-speed forming up to 90m/min for 2mm thickness
Works with carbon steel and galvanized steel materials
Double-radius hole design for enhanced efficiency

Technical Specifications

Material Specifications:

- Standard: International standard tube mill machine

- Material: Galvanized steel

- Mechanical properties: σb≤520Mpa, σs≤365MPa

- Strip Width: 120-400mm

- Strip Thickness: 1-3mm

- Coil Dimensions: Φ508mm inner, Φ1300-2000mm outer

- Coil Weight: ≤3T

Pipe Specifications:

- Pipe Diameter: Square pipe 50x50-100x100mm

- Length: 3-6m

- Pipe-cutting Precision: 0-6mm

- Forming Speed: max 90m/min for 2mm thickness

Working Process

1. Strip steel to coil

2. Uncoiler

3. End straightener

4. Flattener

5. Shear welder

6. Storage material unit

7. Forming, welding, cooling

8. Accurate pipe diameter sizing

9. Accurate pipe length sizing and cutting

10. Inspection

11. Packaging

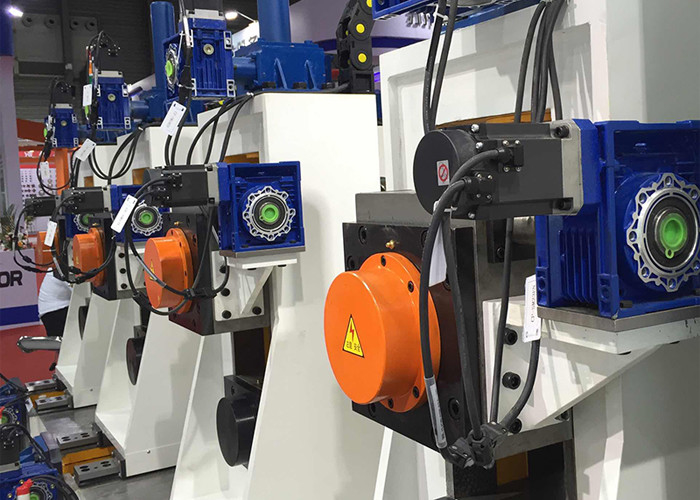

Machine Images
