Home > products >

High Frequency ERW Steel Pipe Production Line 30-130 m/min

Name: High Frequency ERW Steel Pipe Production Line 30-130 m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG20
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	ISO CE
Model Number:	HG20

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

ISO CE

Model Number:

HG20

Features:

FFX

Product:

High Frequency Erw Mill Tube Steel Pipe Production Line

Keyword:

Steel Pipe Production Line

Material:

Speed:

30-130 M/min

Thickness:

0.2-1.0 Mm

Motor:

110 KW

Application:

Architecture, Construction

Certificate:

CE, ISO

Shape:

Square

Highlight:

High Light

Highlight:

High Frequency Steel Pipe Production Line

Erw Mill Steel Pipe Production Line

Tube Steel Pipe Production Line

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

naked package of machine, motors covered with wood case

Delivery Time:

90 days

Payment Terms:

L/C,T/T

Supply Ability:

50 set per year

Product Description

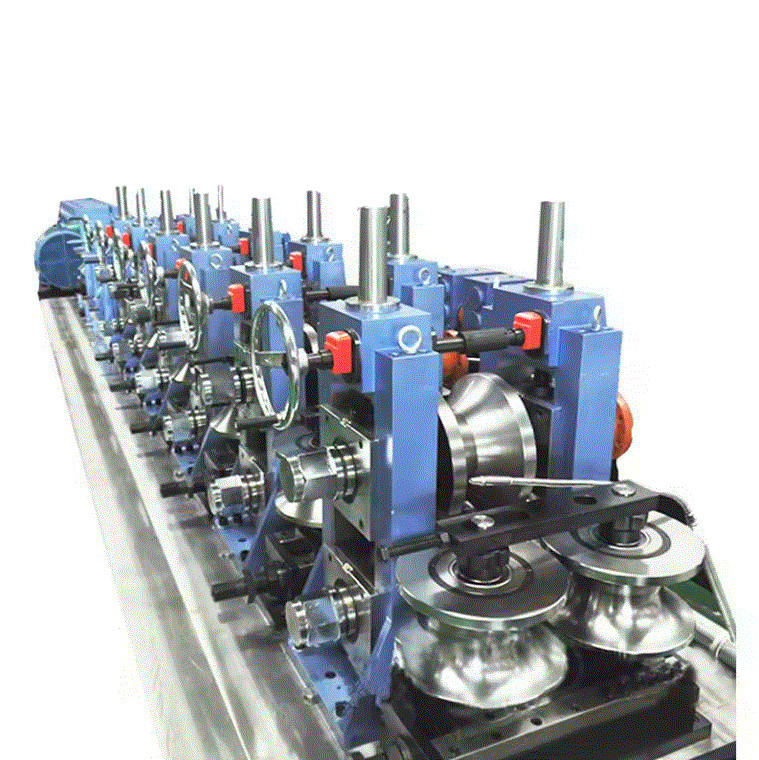

High Frequency ERW Mill Tube Steel Pipe Production Line

Product Overview

This advanced High Frequency ERW Mill Tube Steel Pipe Production Line is designed for architectural and construction applications, featuring cutting-edge technology and reliable performance.

Key Specifications

Attribute	Value
Material	Stainless Steel
Production Speed	30-130 m/min
Thickness Range	0.2-1.0 mm
Motor Power	110 KW
Applications	Architecture, Construction
Certifications	CE, ISO
Forming System	FFX Technology
Pipe Shape	Square

Technical Features

Advanced FFX forming system for superior pipe quality
German COPRA roll forming design software for precision engineering
Stable forming process with excellent surface quality
Easy specification changes for flexible production
Reliable equipment with mature production technology

Production Process

Step 1 - Coils: Carbon steel coils prepared for pipe production

Step 2 - Uncoiler: Steel coil is loaded onto the uncoiler

Step 3 - Leveler: Coil stock is precisely leveled

Step 4 - Mill: Flat steel is formed into pipe through a series of rolls

Step 5 - Mill Rollers: Precision rolls shape the pipe to specifications

Step 6 - Welder: Electric Resistance Welder completes the pipe formation

Step 7 - Scarfer: Seam is smoothed for uniform surface quality

Step 8 - Saw: Finished pipe is cut to required lengths

Technical Parameters

Pipe Diameter: φ10-φ508mm

Wall Thickness: 0.7mm -16mm

Power Supply: 200KW

Speed Range: 30-120 m/min

Warranty: 1 Year

Main Feature: Direct Forming Tube Mill Galvanized Steel Tube Mill Production Line
