Square Tube Mill
>

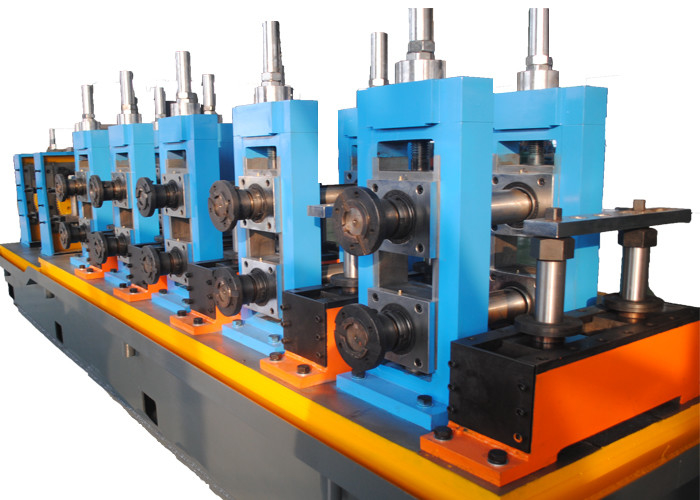

ISO9001 Square Tube Mill for 60X60-120x120mm Steel Pipes 20-50m/min

ISO9001 Square Tube Mill for 60X60-120x120mm Steel Pipes 20-50m/min

Product Details:
Place of Origin: Shijiazhuang China
Brand Name: Tengtian
Certification: CE,ISO9001, BV
Model Number: HG120
Detail Information
Place of Origin:
Shijiazhuang China
Brand Name:
Tengtian
Certification:
CE,ISO9001, BV
Model Number:
HG120
Product_Certification:
ISO9001
Applicable Materials:
Q235
Coil Weight:
≤2.5T
Product_Material:
Steel
Accumulator:
Horizontal Accumulator
Production Speed:
20-50 M/min
Pipe Wall Thickness:
0.7-4mm
Thickness Range:
0.7-4.0mm
Steel Strip Thickness:
0.7-4.0 Mm
Cutting:
Cold Saw
Pipe Material:
Carbon Steel
Useful Life:
30 Years For Steel Tube Mill
Energy Supply Pipe:
1-10m/min
Molding Speed:
20-50m/min
Cutting Method:
Cold Saw Or Hot Saw
Highlight:

High Light

Highlight:

Manual Or Automatically Square Tube Mill

,

120x120mm Square Tube Mill

,

Steel Welded Square Tube Mill

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Standard Export Packing
Delivery Time:
100 days
Payment Terms:
L/C,T/T
Product Description
Manual Or Automatically 60X60-120x120mm Square Tube Mill Steel Welded Pipe Production Line
Product Specifications
Attribute Value
Product Certification ISO9001
Applicable Materials Q235
Coil Weight ≤2.5T
Product Material Steel
Accumulator Horizontal Accumulator
Production Speed 20-50 m/min
Pipe Wall Thickness 0.7-4mm
Thickness Range 0.7-4.0mm
Steel Strip Thickness 0.7-4.0 mm
Cutting Cold Saw
Pipe Material Carbon Steel
Useful Life 30 years for Steel Tube Mill
Energy Supply Pipe 1-10m/min
Molding Speed 20-50m/min
Cutting Method Cold Saw or Hot Saw
Detailed Product Description
Feature Manual Or Automatic
Other Pipe Round, Square And Rectangular Pipe
Max Size 60X60-120x120Mm
Thickness 0.5 - 4.0 Mm
Length 6 M - 12 M
Rollers Include
Warranty One Year
Main Parameters and Specifications
Material Specifications
Material low carbon steel galvanize and carbon steel tube
Mechanical properties σb≤520Mpa, σs≤340MPa
Strip width 240 - 480 mm
Strip thickness 0.5 - 4.0 mm
I.D of Coils 508 mm
O.D of Coils 1800 mm
Coil Weight ≤ 3T
Welded Pipe Specification
Pipe Diameter 60X60 mm-120x120mm
Pipe thickness 1.0 - 3.5 mm
Finish pipe length 6 m
Cut length accuracy ± 2 mm
Forming speed 40 - 100 m/min
Workshop Requirements

100 m X 8 m, at least 5m high

Note: You can modify it according to the actual length of the workshop
