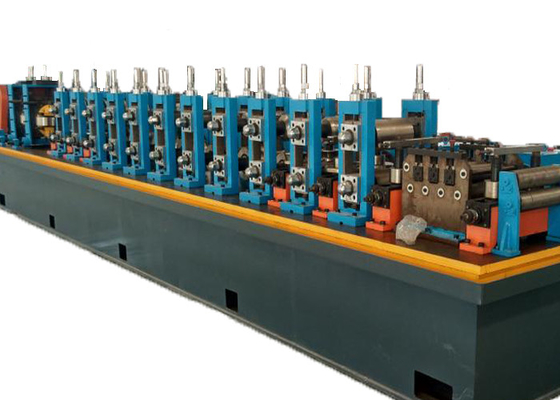

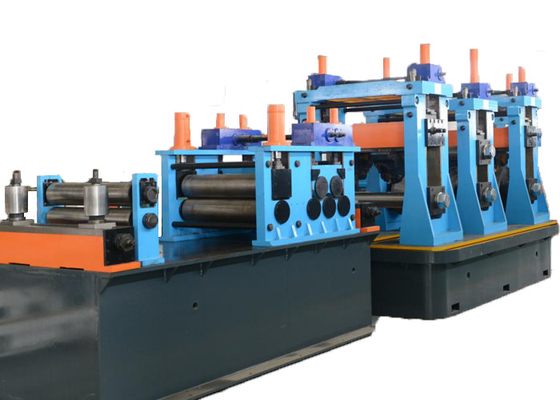

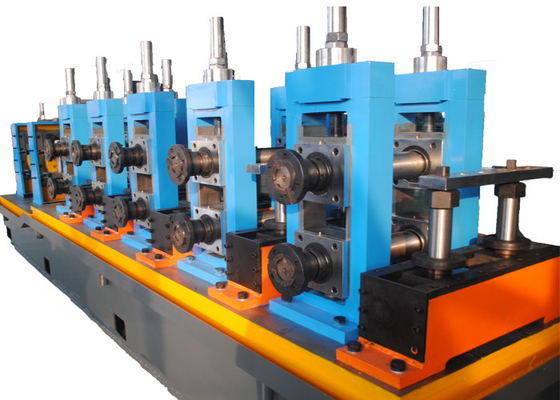

Manual Or Automatically 60X60-120x120mm Square Tube Mill Steel Welded Pipe Production Line

Large Image : Manual Or Automatically 60X60-120x120mm Square Tube Mill Steel Welded Pipe Production Line

Product Details:

Place of Origin:	Shijiazhuang China
Brand Name:	Tengtian
Certification:	CE,ISO9001, BV
Model Number:	HG120

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$100000 to $1 million
Packaging Details:	Standard Export Packing
Delivery Time:	100 days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product_Certification:	ISO9001	Applicable Materials:	Q235
Coil Weight:	≤2.5T	Product_Material:	Steel
Accumulator:	Horizontal Accumulator	Production Speed:	20-50 M/min
Pipe Wall Thickness:	0.7-4mm	Thickness Range:	0.7-4.0mm
Steel Strip Thickness:	0.7-4.0 Mm	Cutting:	Cold Saw
Pipe Material:	Carbon Steel	Useful Life:	30 Years For Steel Tube Mill
Energy Supply Pipe:	1-10m/min	Molding Speed:	20-50m/min
Cutting Method:	Cold Saw Or Hot Saw
Highlight:	Manual Or Automatically Square Tube Mill , 120x120mm Square Tube Mill , Steel Welded Square Tube Mill

Detailed Product Description

Production Name:	Manual Or Automatic 60X60Mm Steel Welded Pipe Production Line Square Tube Mill Machine	Model:	60X60-120x120
Feature:	Manual Or Automatic	Other Pipe:	Round ,square And Rectangular Pipe
Max Size:	60X60-120x120Mm	Thickness:	0 . 5 - 4 . 0 Mm
Length:	6 M - 12 M	Rollers:	Include
Warranty:	One Year	Key Words:	Manual Or Automatic 60X60mm-120x120 Steel Welded Pipe Production Line

Manual Or Automatic 60X60Mm Steel Welded Pipe Production Line Main Parameters and Specifications:

⑴ Material Specifications:

Material	low carbon steel galvanize and crabon steel tube
Mechanical properties	σb≤520Mpa,σs≤340MPa
strip width	240 - 480 mm
strip thickness	0 . 5 - 4 . 0 mm
I.D of Coils	508 mm
O.D of Coils	1800 mm
Coil Weight	≤ 3T

⑵ Welded Pipe Specification

Pipe Diameter	60X60 mm-120x120mm
pipe thickness	1 . 0 - 3 . 5 mm
Finish pipe length	6 m
Cut length accuracy	± 2 mm
Forming speed	40 - 100 m/min

⑶ workshop require : 100 m X 8 m ,at least 5m high

Notice:You can modify it according to the actual length of the workshop

Our Workshop:

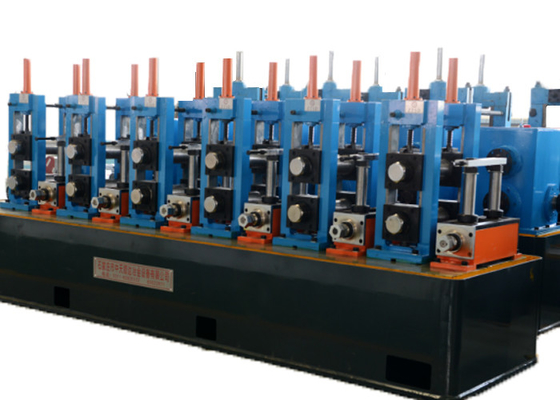

Manual Or Automatically 60X60Mm Square Tube Mill Steel Welded Pipe Production Line 1

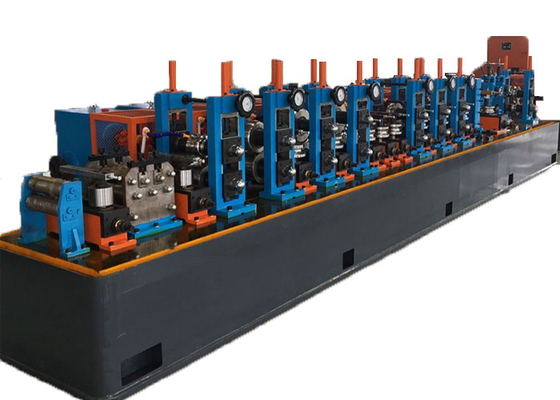

Manual Or Automatically 60X60Mm Square Tube Mill Steel Welded Pipe Production Line 2
