114mm Square Pipe Making Machine 60m/Min High-Frequency Welding

Name: 114mm Square Pipe Making Machine 60m/Min High-Frequency Welding
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG114
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shijiazhuang China
Brand Name:	Tengtian
Certification:	CE,ISO9001, BV
Model Number:	HG114

Detail Information

Place of Origin:

Shijiazhuang China

Brand Name:

Tengtian

Certification:

CE,ISO9001, BV

Model Number:

HG114

Tube_Size:

Customizable

Tube Size:

40x40—90x90mm

Speed:

≤2.5T

Voltage:

Customizable

Diameter:

32-114mm

Coil_Width:

Customizable

Welding:

Hi-frequency Welding

Tolerance:

0.7-4.0mm

Round Pipe Diameter:

0.7-4.0 Mm

Type Of Welding:

High Frequency Welding

Power_Source:

Electric

Strip Thickness:

1.0-5.0mm

Line Speed:

Max.100m/min

Keywords:

20-50m/min

Function:

Cold Saw Or Hot Saw

Highlight:

High Light

Highlight:

fast Forming Square Pipe Making Machine

60m/Min Square Pipe Making Machine

114.0mm Square Pipe Making Machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Standard Export Packing

Delivery Time:

90 days

Payment Terms:

L/C,T/T

Product Description

114.0mm Square Pipe Making Machine Max Forming Speed 60m/Min

Key Specifications

Attribute	Value
Tube Size Range	40x40—90x90mm (Square/Rectangular), 32-114mm (Round)
Wall Thickness	1.0-5.0mm
Maximum Line Speed	100m/min
Welding Type	High frequency welding
Power Source	Electric (Customizable Voltage)
Cutting Method	Cold Saw or Hot Saw

Product Overview

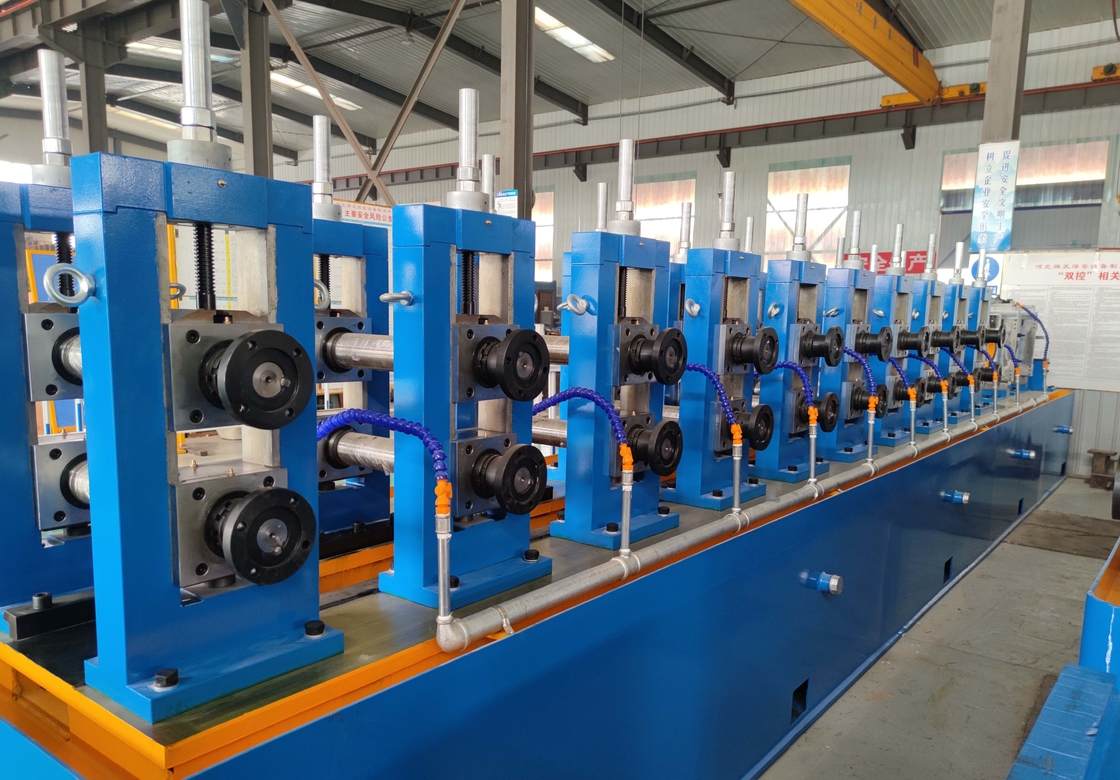

The HG114 High-Frequency Welded Pipe Mill Line is engineered to produce precision welded pipes with diameters ranging from 50-114.0mm and wall thicknesses from 1.0-5.0mm. This versatile system also manufactures square, rectangular, and deformed pipes of corresponding sizes. Featuring advanced roll pass design, this production line delivers superior quality welded steel pipes with exceptional machining precision.

Available Models

Model	Thickness (mm)	Specification (mm)	Speed (m/min)	Main Power (kw)
H20	0.3-1	8-20	30-120	55
H32	0.3-2.0	12-32	30-120	75
H50	0.8-2.5	16-50	30-110	110
H60	0.8-3	20-60	30-100	132
H76	1-3	12-76	30-100	320
H89	1-4	32-89	30-80	350
HG114	1.5-5	45-114	30-60	400

Production Process

Loading car → Uncoil → Cutting and Welding
Accumulator → Forming
HF welding → Anneal welder → Deburring
Cooling → Sizing → Straightening
STD Cold-cutting saw → Transmitting
Hydrostatic testing → End facer → Straightener
Packing → Storage

Comprehensive Service Package

Installation & Training: Our engineers will install the equipment and train your operators
Warranty: 1-year quality guarantee with lifetime repair support
Pre-Sale Services: Workshop design and production output planning
After-Sale Support: Ongoing technical assistance and skilled engineer deployment
Project Design: Complete project planning for stainless/carbon steel pipe production
Logistics: Full responsibility for loading and shipping arrangements

Product Name: Square Pipe Making Machine Max Forming Speed 60m/Min Pipe Diameter 114.3mm Square Tube Mill

Pipe Material: Carbon Steel

Power: 1500KW

Speed Range: 20 - 60m/Min

Pipe Shapes: Round, Square & Rectangular

Round Pipe Diameter: 33.4mm-114.3mm
