Adjustable Steel Pipe Production Line 76-219mm 50M/Min

Name: Adjustable Steel Pipe Production Line 76-219mm 50M/Min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG219
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shijiazhuang China
Brand Name:	Tengtian
Certification:	CE,ISO9001, BV
Model Number:	HG219

Detail Information

Place of Origin:

Shijiazhuang China

Brand Name:

Tengtian

Certification:

CE,ISO9001, BV

Model Number:

HG219

Mill Name:

Easy To Adjustable Size Max 219mm 50M/Min Steel Pipe Production Line

Warrenty:

12 Months

Production Capacity:

1000-2000kg/h

Decoiler Type:

Hydraulic

Payment:

By TT

Production Process:

Forming, Welding, Sizing, Straightening, Cutting

Working Speed:

40m/min

Color:

According To Customer Requirements

Pipe Thickness Range:

1.0-6.0mm

Application:

Section Steel Pipe, Steel Profile

Operating Environment:

In The Workshop

Voltage:

Customize

Production Length:

3-12m

Highlight:

High Light

Highlight:

219mm Steel Tube Milling Machine

Adjustable Size Steel Tube Milling Machine

50M/Min Steel Tube Milling Machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Standard Export Packing

Delivery Time:

140 days

Payment Terms:

L/C,T/T

Product Description

Easy To Adjustable Size Max 219mm 50M/Min Steel Pipe Production Line

Product Specifications

Attribute	Value
Mill Name	Easy To Adjustable Size Max 219mm 50M/Min Steel Pipe Production Line
Warranty	12 months
Production Capacity	1000-2000kg/h
Decoiler Type	Hydraulic
Payment	By TT
Production Process	Forming, Welding, Sizing, Straightening, Cutting
Working Speed	40m/min
Color	According to customer requirements
Pipe Thickness Range	1.0-6.0mm
Application	Section Steel Pipe, Steel Profile
Operating Environment	In the Workshop
Voltage	Customize
Production Length	3-12m

Detailed Product Description

Production Name: East to Adjust Size Max 219mm 120mM/Min Steel Tube Milling Machine

Application: Natural Gas, Drain Pipe, 3 NB Tube Production

Voltage: 380V

Pipe Diameter: 76mm-219mm

Thickness: 1.0-6mm

Speed: 50m/min

This steel pipe production line is designed to produce round pipe (Diaφ76-219mm, thickness 3-9mm). Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

Material Specifications

Standard	Conforming to the YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤520Mpa, σs≤340MPa
Strip width	230～690mm
Strip thickness	1.0～6.0mm
I.D of Coils	φ508～φ610mm
O.D of Coils	φ1000～φ2000mm
Coil Weight	≤12T

Production Line Specifications

Round Pipe Diameter	φ76～φ219mm
Pipe thickness	1.0-6.0mm
Finish pipe length	8-12m
Cut length accuracy	±1.5mm
Forming speed	20-50m/min

Power, Water & Air Supply Requirements

Category	Specification
Power	Approx. 600KW
Power Source	380V/60Hz/3phases
Circulation Cooling Water	Flow: 20T/h～30 T/h Pool Volume: 30m³
Compressed Air	Flow: 5m³/min Pressure: 5～11kg/cm²

Workshop Requirements

6m wide, 70m long, at least 5m high from Ceiling Rails to Ground.

Technical Documentation Provided

Instruction Manual (provided at the time of a month before delivery time)
Inspection Certificate (provided at the delivery time)
Loading Order (Provided at the delivery time)
Layout Drawing (provided at the time of a month before delivery time)
Ground Base Drawing (provided at the time of a month before delivery time)
Electrical Principle Diagram
Overall Assembly Drawing of every unit of the line
Part Diagram of Vulnerable Parts

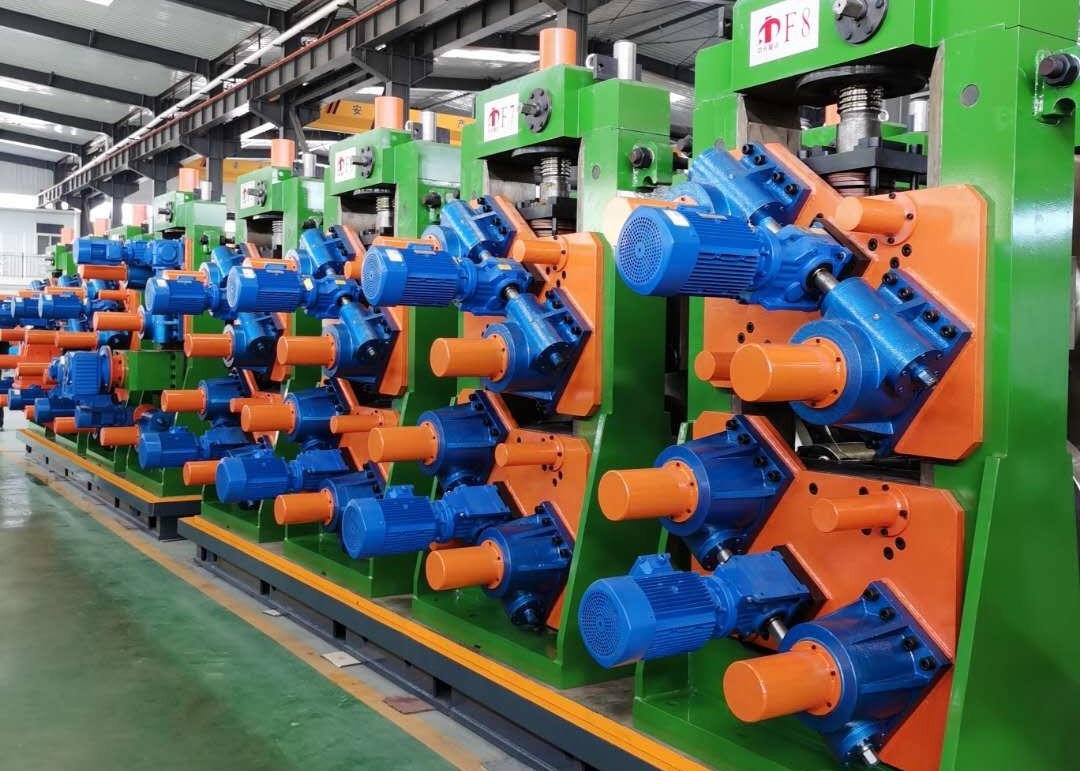

Product Exhibition
