Adjustable Steel Pipe Production Line 76-219mm 50M/Min
Adjustable Steel Pipe Production Line 76-219mm 50M/Min
  • Adjustable Steel Pipe Production Line 76-219mm 50M/Min
  • Adjustable Steel Pipe Production Line 76-219mm 50M/Min
  • Adjustable Steel Pipe Production Line 76-219mm 50M/Min
  • Adjustable Steel Pipe Production Line 76-219mm 50M/Min

Adjustable Steel Pipe Production Line 76-219mm 50M/Min

Product Details:
Place of Origin: Shijiazhuang China
Brand Name: Tengtian
Certification: CE,ISO9001, BV
Model Number: HG219
Detail Information
Place of Origin:
Shijiazhuang China
Brand Name:
Tengtian
Certification:
CE,ISO9001, BV
Model Number:
HG219
Mill Name:
Easy To Adjustable Size Max 219mm 50M/Min Steel Pipe Production Line
Warrenty:
12 Months
Production Capacity:
1000-2000kg/h
Decoiler Type:
Hydraulic
Payment:
By TT
Production Process:
Forming, Welding, Sizing, Straightening, Cutting
Working Speed:
40m/min
Color:
According To Customer Requirements
Pipe Thickness Range:
1.0-6.0mm
Application:
Section Steel Pipe, Steel Profile
Operating Environment:
In The Workshop
Voltage:
Customize
Production Length:
3-12m
Highlight:

High Light

Highlight:

219mm Steel Tube Milling Machine

,

Adjustable Size Steel Tube Milling Machine

,

50M/Min Steel Tube Milling Machine

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Standard Export Packing
Delivery Time:
140 days
Payment Terms:
L/C,T/T
Product Description
Easy To Adjustable Size Max 219mm 50M/Min Steel Pipe Production Line
Product Specifications
Attribute Value
Mill Name Easy To Adjustable Size Max 219mm 50M/Min Steel Pipe Production Line
Warranty 12 months
Production Capacity 1000-2000kg/h
Decoiler Type Hydraulic
Payment By TT
Production Process Forming, Welding, Sizing, Straightening, Cutting
Working Speed 40m/min
Color According to customer requirements
Pipe Thickness Range 1.0-6.0mm
Application Section Steel Pipe, Steel Profile
Operating Environment In the Workshop
Voltage Customize
Production Length 3-12m
Detailed Product Description
Production Name: East to Adjust Size Max 219mm 120mM/Min Steel Tube Milling Machine
Application: Natural Gas, Drain Pipe, 3 NB Tube Production
Voltage: 380V
Pipe Diameter: 76mm-219mm
Thickness: 1.0-6mm
Speed: 50m/min

This steel pipe production line is designed to produce round pipe (Diaφ76-219mm, thickness 3-9mm). Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

Material Specifications
Standard Conforming to the YB189-64 standard
Material Low carbon steel and low alloy constructional steel
Mechanical properties σb≤520Mpa, σs≤340MPa
Strip width 230～690mm
Strip thickness 1.0～6.0mm
I.D of Coils φ508～φ610mm
O.D of Coils φ1000～φ2000mm
Coil Weight ≤12T
Production Line Specifications
Round Pipe Diameter φ76～φ219mm
Pipe thickness 1.0-6.0mm
Finish pipe length 8-12m
Cut length accuracy ±1.5mm
Forming speed 20-50m/min
Power, Water & Air Supply Requirements
Category Specification
Power Approx. 600KW
Power Source 380V/60Hz/3phases
Circulation Cooling Water Flow: 20T/h～30 T/h
Pool Volume: 30m³
Compressed Air Flow: 5m³/min
Pressure: 5～11kg/cm²
Workshop Requirements

6m wide, 70m long, at least 5m high from Ceiling Rails to Ground.

Technical Documentation Provided
  • Instruction Manual (provided at the time of a month before delivery time)
  • Inspection Certificate (provided at the delivery time)
  • Loading Order (Provided at the delivery time)
  • Layout Drawing (provided at the time of a month before delivery time)
  • Ground Base Drawing (provided at the time of a month before delivery time)
  • Electrical Principle Diagram
  • Overall Assembly Drawing of every unit of the line
  • Part Diagram of Vulnerable Parts
Product Exhibition

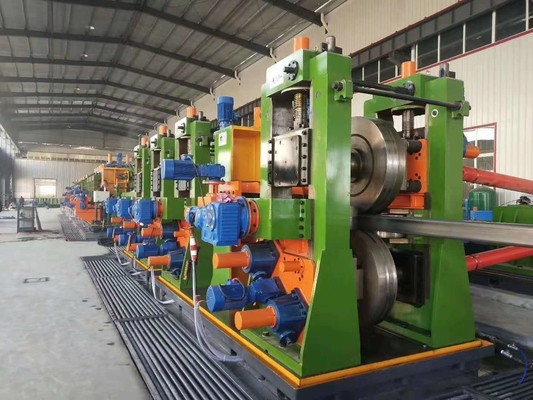

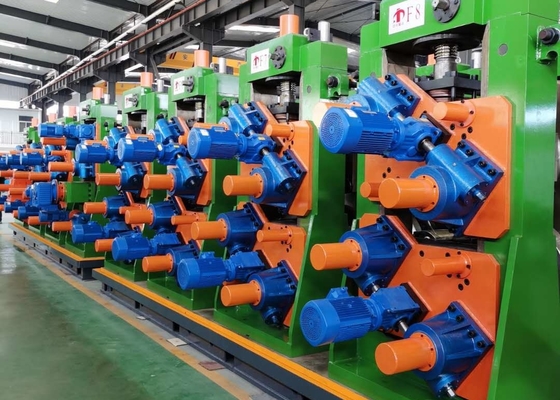

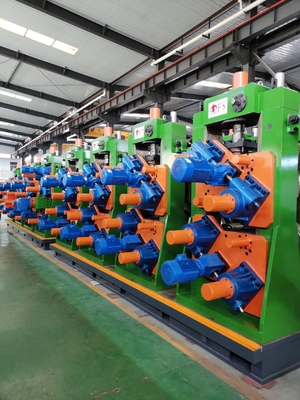

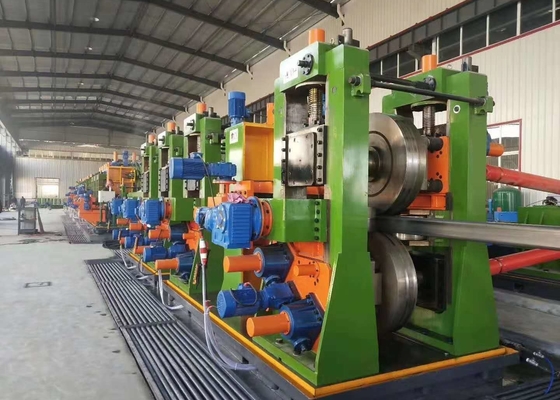

Adjustable Steel Pipe Production Line 76-219mm 50M/Min 0 Adjustable Steel Pipe Production Line 76-219mm 50M/Min 1
