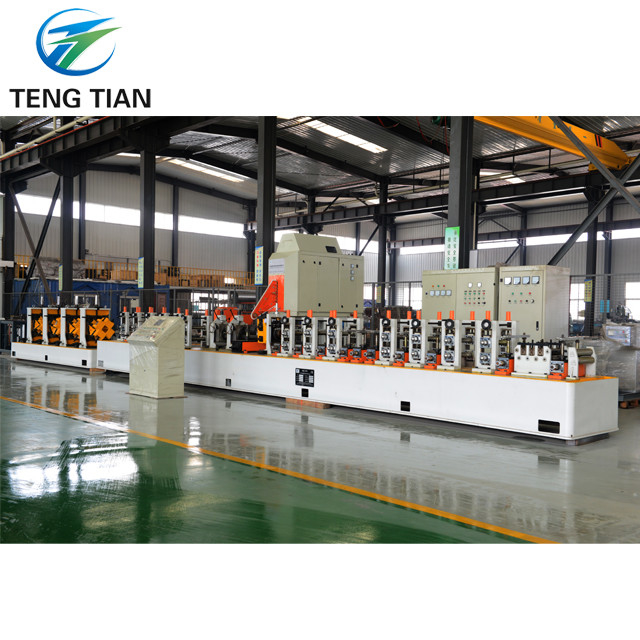

Carbon Steel Welded Pipe Mill for 15-60mm Diameter Pipes

Product Details:

Place of Origin:	China
Brand Name:	tengtian
Certification:	BV,CE, ISO9001
Model Number:	50

Detail Information

Place of Origin:

China

Brand Name:

tengtian

Certification:

BV,CE, ISO9001

Model Number:

Product Name:

Carbon Steel Industry Pipe Production Line/tube Mill Machines Thick Pipe Production

Color:

White

Pipe Length:

4-8 M

To-length Accuracy:

0-6 Mm

Material:

Low Carbon Steel

Diameter:

15-60 Mm

Usage:

Steel Construction

Keyword:

Welded Pipe Mill

Highlight:

High Light

Highlight:

Tube Mill machines production line

Thick pipe production line

Industry Pipe production line

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

plastic film winding, wooded case for electric components

Delivery Time:

90 days

Payment Terms:

L/C,T/T

Supply Ability:

26 of each year

Product Description

Carbon Steel Industry Pipe Production Line / Tube Mill Machines Thick Pipe Production

Product Specifications

Attribute	Value
Product name	Carbon steel industry pipe production line/tube mill machines thick pipe production
Color	White
Pipe Length	4-8 m
To-length Accuracy	0-6 mm
Material	Low carbon steel
Diameter	15-60 mm
Usage	Steel construction

Equipment Specifications

4.1 Uncoiled

Firmer Diameter of Coil, mm	480～600
Outer Diameter of Coil, mm	Max 1800
Width of strip, mm	45～150
Weight of Coil, max, ton	2
Structure	Double-mackerel
Drum Expansion	Pneumatic
Swivel	Manual

4.2 Semi-auto Shear Welder

Shearing Width, mm	45～150
Thickness of Strip, mm	0.6～3.25
Welding Speed, m/min	0.59～0.9
Moving of Torch	DC Servo Motor
Clanking of Strip During Welding	Manual
Shearing of Strip	Pneumatic
Welding of Strip	CO2 Shield Welder CO2
Adjust of Up and Down	Manual

4.3 Pinch Roll Assembly

Feeding Speed, max, m/min	300
Up and Down of Pinch Roll	Pneumatic
Material of Pinch Roll	GCr15
Height Guide Roll Assay	1
Entry Guide Roll Assay	1
Motor, kW	11

4.4 Cage Accumulator

Dimensions, m

8×3.5

4.5 Forming and Sizing Mill

Material	Low carbon steel & low alloy steel σb≤500Mpa σs≤300Mpa
Diameter of Pipe, mm	16～50
Thickness of Strip, mm	0.6～3.25 (for round pipe) 0.6～2.5 (for square and rectangular pipe)
Width of Strip, mm	45～145
Main Motor Power, kW	2×55
H.F.Power, kW	200KW
Forming Mode	Roll forming
Stand	Portal style
Forming Speed, m/min	Max 80
Entry Guide	1
No. Of forming stands	Horizontal 6, Vertical 6
No. Of sizing stands	Horizontal 6, Vertical 6
Seam Guide Roll Stand	1
Squeeze Roll Stand	1
Bead Scraper	2
Cooling Zone	1
Driving Roll Shaft Diameter, mm	40Cr, Φ55
Side Roll Shaft Diameter, mm	40Cr, Φ35
Turks Head	4-roll style, 2
Reduction Gear Box	Bevel Gear Box
Driving System	BS Euro herm

4.6 Flying Saw

Outer Diameter of Pipe, max, mm	50
Wall Thickness, max, mm	3.5
Cut-to-length, m	4～8
Cutting Motor Power, kW	AC 15
Traveling Motor Power, kW	DC 15
Cutting Accuracy, mm	0～6
Control	Computer
