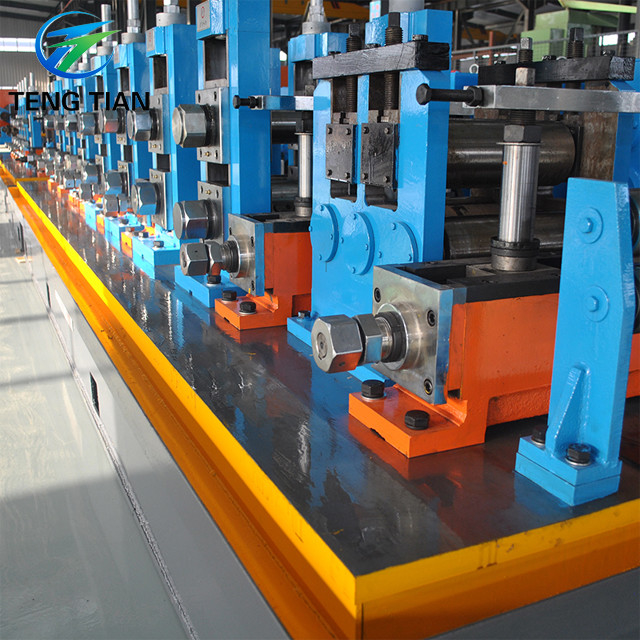

76mm ERW Pipe Mill with Quick Roller Change 20-100m/min

Name: 76mm ERW Pipe Mill with Quick Roller Change 20-100m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG219
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shijiazhuang China
Brand Name:	Tengtian
Certification:	CE,ISO9001, BV
Model Number:	HG219

Detail Information

Place of Origin:

Shijiazhuang China

Brand Name:

Tengtian

Certification:

CE,ISO9001, BV

Model Number:

HG219

Product Name:

Φ76 Quick Roller Change Welded Pipe Equipment Production Line Precision

Max Size:

76mm

Pipe End Shape:

Plain End, Beveled End, Threaded End

Condition:

New

Voltage:

380V/50Hz/3Ph

Pipe Length:

6m - 12m

Welding Type:

H.F Solid Welder

Production Speed:

20m/min - 100m/min

Machine Name:

ERW Pipe Mill

Keywords:

Pipe Production Line Precision

Highlight:

High Light

Highlight:

Quick Roller change welded pipe equipment

φ76 welded pipe equipment production line

76mm precision tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Standard Export Packing

Delivery Time:

100 days

Payment Terms:

L/C,T/T

Supply Ability:

20 Sets/Yearly

Product Description

Φ76 Quick Roller Change Welded Pipe Equipment Production Line Precision

Product Specifications

Attribute	Value
Product Name	Φ76 Quick Roller Change Welded Pipe Equipment Production Line Precision
Max Size	76mm
Pipe End Shape	Plain End, Beveled End, Threaded End
Condition	New
Voltage	380V/50Hz/3Ph
Pipe Length	6m - 12m
Welding Type	H.F solid welder
Production Speed	20m/min - 100m/min
Machine Name	ERW Pipe Mill

Machine Introduction

This equipment features quick roller change capability, significantly reducing mold replacement time to approximately 30 minutes - an 80% time savings compared to conventional systems. All molds include protective organ covers to prevent iron filings contamination. The precision-scaled handwheel and pneumatic pull-away mechanism enhance operational efficiency. The integrated drag device further reduces pipe changeover time for operators.

Production Process

Loading car
Uncoil
Cutting and Welding
Accumulator
Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening
STD Cold-cutting saw
Transmitting
Hydrostatic testing
End facer
Straightener
Packing
Storage

Certifications

Model Specifications

Serial No.	Model	Thickness (mm)	Specification (mm)	Speed (m/min)	Main Engine (kw)	Power (kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Manufacturing Capabilities

Our company possesses strong technical expertise and business capabilities supported by a dynamic team. Through continuous improvement efforts, we have secured significant domestic market share and successfully exported to numerous countries including Korea, Vietnam, Indonesia, South Africa, and Kazakhstan.
