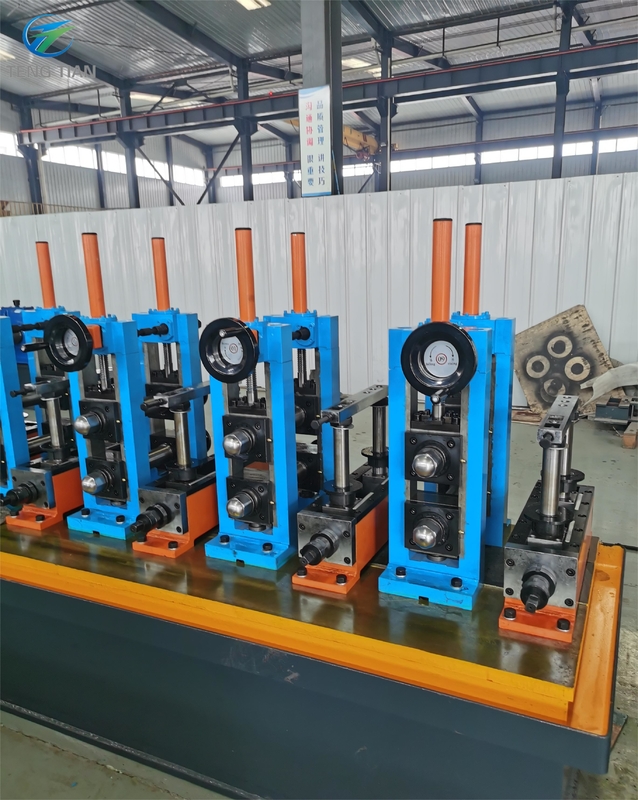

Precision Tube Mill for Round Square Rectangular Pipes 25-89mm

Product Details:

Place of Origin:	China
Brand Name:	Tengtian
Certification:	CE,ISO9001, BV
Model Number:	89

Detail Information

Place of Origin:

China

Brand Name:

Tengtian

Certification:

CE,ISO9001, BV

Model Number:

Product Name:

High-Precision Pipe Making Machine Precision Tube Mill For Low-Carbon And Low-Alloy Steel Pipes

Keyword:

Precision Tube Mill

Thickness:

1.2-4.0mm

Steel ID:

350-460 Mm

Weight:

4000kg

Pipe:

Round Square Rectangle

Usage:

Construction

HF:

300KW

Pipe Thickness:

1.5-4.0mm

Pipe Diamete:

25-89mm

Section Shape:

Round,square,rectangular

Cutting Saw:

Cold Saw & Friction Saw Cutting

Keywords:

Color Blue Machine Precision Tube Mill

Special Require:

Can Design According To The Customer

Feature:

Precision

Roller Material:

Cr12MoV

Production Name:

Precision Tube Mill

Control System:

PLC

Voltage:

380V

Forming Process:

Roll Forming

Product:

Square Pipe And Round Pipe

Highlight:

High Light

Highlight:

Round Precision Steel Tube Mill

Round Precision Steel Tube Production Line

Pipe Making Machine Tube Mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

plastic film winding, wooded case for electric components

Delivery Time:

90 days

Supply Ability:

26 Line of Year

Product Description

High-Precision Pipe Making Machine Precision Tube Mill

For Low-Carbon and Low-Alloy Steel Pipes

Product Type: Precision Tube Mill

Material Compatibility: Low-carbon steel, low-alloy steel

Thickness Range: 1.2-4.0mm

Pipe Diameter: 25-89mm

Section Shapes: Round, square, rectangular

Cutting System: Cold Saw & Friction Saw Cutting

Control System: PLC

Voltage: 380V

Forming Process: Roll Forming

Machine Weight: 4000kg

Product Overview

The HG89 High-Frequency Welded Pipe Mill Line is engineered for precision manufacturing of round pipes (φ25~φ89mm), square pipes, and rectangular pipes. Featuring advanced roll pass design, this production line delivers welded steel pipes with exceptional quality and dimensional accuracy.

Key Features

High-precision forming and welding for consistent pipe quality
Versatile production of round, square, and rectangular pipe profiles
Robust construction with Cr12MoV rollers for extended service life
PLC control system for reliable operation and precise control
Customizable configurations to meet specific production requirements

Technical Specifications

Material: Low carbon steel and low alloy constructional steel

Mechanical Properties: σb≤520Mpa, σs≤340MPa

Strip Thickness: 1.1～4.0mm

Coil Specifications: Inner Diameter: φ480～φ510mm, Outer Diameter: φ1000～φ1600mm

Max Coil Weight: ≤4.5T

Pipe Wall Thickness: 1.1～4mm

Cutting Length: 6～12m

Cutting Precision: ±1.5mm

Forming Speed: 20～80m/min

Product Gallery

Customization Options

This Precision Tube Mill can be customized according to specific customer requirements, including specialized configurations for unique production needs or material specifications.
