High Precision Steel Tube Mill Erw Welded Pipe Making Machinery

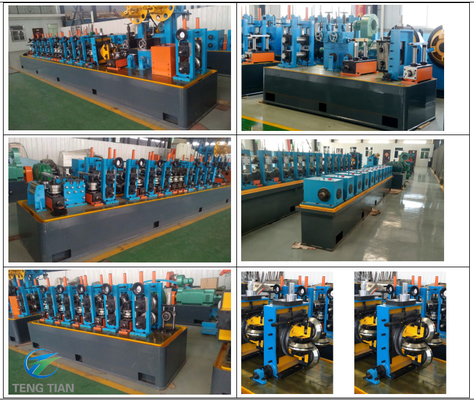

Large Image : High Precision Steel Tube Mill Erw Welded Pipe Making Machinery

Product Details:

Place of Origin:	China
Brand Name:	Tengtian
Certification:	CE,ISO9001, BV
Model Number:	HG89

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$100000 to $1 million
Packaging Details:	plastic film winding, wooded case for electric components
Delivery Time:	90 days
Supply Ability:	26 Line of Year

Contact Now

Detailed Product Description

Product:	High Precision Steel Tube Mill Erw Welded Pipe Making Machinery	Keyword:	Welding Pipe Unit ERW
Material:	Carbon Steel Galvanized	Diameter:	32-89 Mm
Thickness:	1-4.5mm	Speed:	30-80 M/min
HF:	300KW	Area:	16x100 ㎡
Keyword:	Precision Tube Mill
Highlight:	High Precision Pipe Making Machinery , High Precision Steel Tube Mill , Erw precision tube mill

High Precision Steel Tube Mill Erw Welded Pipe Making Machinery

item	high precision steel tube mill erw welded pipe making machinery
Applicable Industries	Hotels, Manufacturing Plant, Construction Works, Energy & Mining
Showroom Location	United States, Italy, Pakistan, India, Russia, Thailand, Tajikistan
Video Outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Ordinary Product
Warranty of Core Components	1 Year
Core Components	Engine, Gearbox, Motor, Gear
Condition	New
Type	Pipe Production Line
Pipe Material	Carbon steel
Application	Energy Supply Pipe
Production Capacity	30-80m/min
Place of Origin	Hebei, China
Brand Name	Tengtian
Voltage	380V
Power	300KW
Dimension(LWH)	40m3m2m
Weight	20000kg
Warranty	1 Year
Key Selling Points	High-accuracy
After-sales Service Provided	Engineers
Pipe Length	6-12m
Pipe Diameter	32-89mm
Pipe Thickness	1-4.5 mm
Welding Method	High Frequency Welding
Material	Carbon Steel, Stainless Steel, Alloy Steel
Service Treatment	Pickling, Passivation, Polishing, Anodizing, Plating, Coating
Forming Process	Roll Forming

Material (steel coil)→uncoiler→pinching and leveling→shear and welder→horizontal (or cage) accumulator→forming mill→HF soild welder→external burr removing→IF annealing→heat treatment→air cooling→water cooling→sizing mill→rounghly straightening (turkey head)→cut off machine→run out table
