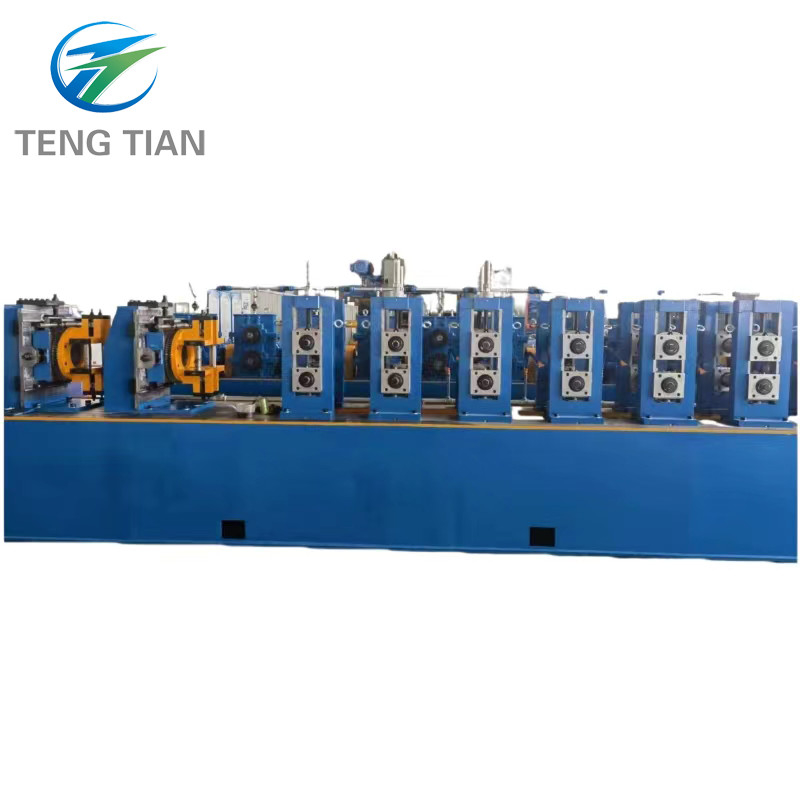

High Frequency Welded Pipe Mill for Carbon Steel 60-127mm Round Pipe

Name: High Frequency Welded Pipe Mill for Carbon Steel 60-127mm Round Pipe
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG127
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shijiazhuang China
Brand Name:	Tengtian
Certification:	CE,ISO9001, BV
Model Number:	HG127

Detail Information

Place of Origin:

Shijiazhuang China

Brand Name:

Tengtian

Certification:

CE,ISO9001, BV

Model Number:

HG127

Features:

High Precision, Stable Performance, Easy Operation

Machine Name:

High Frequency Welded Pipe Mill For Carbon Steel Pipeline 60-127mm Round Pipe

Length:

3-6m

Tube Thickness:

1.5-4.0mm

Forming Line Speed:

Max 90 M/min

Color:

As Our Standard Or Order By User

Coil Inner Diameter:

Φ508mm

Forming Speed:

30-90m/min

Pipe Shape:

Square,Rectangular

Product Speed:

Max 90m/min

Speed:

30 To 90 Meters Per Minute

Key Word:

High Frequency Welding Pipe Mill

Product Name:

High Frequency Welded Pipe Mill For Carbon Steel Pipeline 60-127mm Round Pipe

Hf Welder Power:

350 KW

Roller Materoal:

Cr12/SKD11

Cutting Method:

Cold Saw Cutting

Outer Diameter:

1000-1600mm

Round Pipe Thickness:

1.5mm～6.0mm

Square Tube:

12mm X 12mm, 70mmx70mm

Welding Type:

High Frequency Welding

Cutting Length Precision:

±3mm

Pipe Material:

Carbon Steel, Stainless Steel, Galvanized Steel

Thickness:

1.5-6.0mm

Welding Method:

High Frequency Induction Welding

Highlight:

High Light

Highlight:

127mm High Frequency Welded Pipe Mill

Carbon Steel Pipeline tube mill equipment

Round 60mm tube mill equipment

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Standard Export Packing

Delivery Time:

90 days

Payment Terms:

L/C,T/T

Supply Ability:

20 Sets/Yearly

Product Description

High Frequency Welded Pipe Mill For Carbon Steel Pipeline 60-127mm Round Pipe

Product Specifications

Attribute	Value
Length	3-6m
Tube Thickness	1.5-4.0mm
Forming Line Speed	Max 90 m/min
Coil Inner Diameter	Φ508mm
Forming Speed	30-90m/min
Pipe Shape	Square, Rectangular
HF Welder Power	350 KW
Roller Material	Cr12/SKD11
Cutting Method	Cold Saw Cutting
Cutting Length Precision	±3mm
Pipe Material	Carbon Steel, Stainless Steel, Galvanized Steel
Welding Method	High Frequency Induction Welding

Product Description

The HG127 High-Frequency Welded Pipe Production Line is designed to produce welded round pipes of Ф60～127mm in diameter and 1.5～4.0mm in wall thickness, as well as 50×50--100×100mm square pipes with thickness from 1.5-4.0mm. Featuring roll pass design, this production line manufactures welded steel pipes with excellent quality machining and high precision assembly.

Technical Parameters

Power: Approx. 800KW
Power Source: 380V/50Hz/3phases
Circulation Cooling Water: Flow 30T/h～40 T/h, Pool Volume 60m³
Compressed Air: Flow 5m³/min, Pressure 5～7kg/cm²

Model Specifications

Model	Diameter Range	Pipe Thickness	Molding Speed (m/min)	Motor Power (KW)
HG20	8-20MM	0.3-1MM	30-120	55
HG32	12-32MM	0.3-2.0MM	30-120	75
HG50	16-50MM	0.8-2.5MM	30-110	110
HG60	20-60MM	0.8-3MM	30-100	132
HG76	12-76MM	1-3MM	30-100	320
HG89	32-89MM	1-4MM	30-80	350
HG114	45-114MM	1.5-5.0MM	30-60	400

Key Features

High precision manufacturing
Stable performance
Easy operation
Versatile pipe shape production
Efficient high frequency welding

Company Overview

Our company specializes in the production of pipe mills, slitting lines, cold roll forming, and stainless steel pipe mill equipment. With strong technical capabilities and a vibrant team, we have expanded our market presence domestically and internationally, exporting to Korea, Vietnam, Indonesia, South Africa, Kazakhstan, and other countries.

Certifications

Our Services

On-site installation and operator training by our engineers
One year quality guarantee with life-long repair service
Pre-sale services including workshop and production output design
After-sale services including installation, training, and technical support
Option for extended engineer support to improve output and reduce costs
Complete project design for stainless steel/carbon steel pipe production
Responsible for loading and shipping arrangements

Production Equipment

Global Presence

Our equipment has been exported to dozens of countries including Egypt, Greece, South Korea, Vietnam, Indonesia, and South Africa, receiving positive feedback from customers worldwide.
