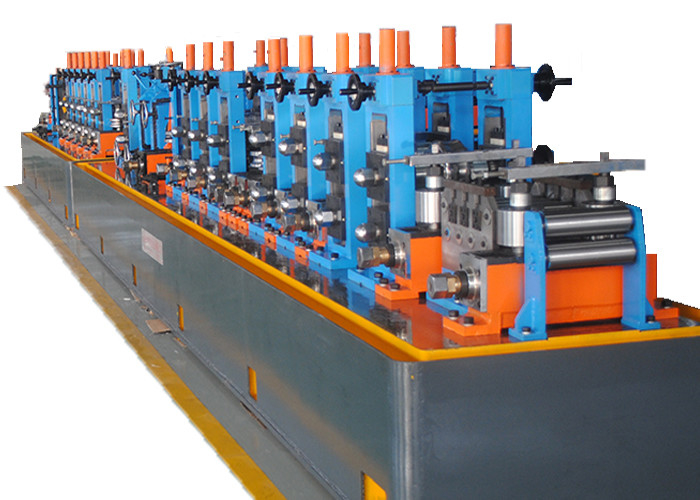

Carbon Steel Tube Mill Machine for Round and Square Pipes 80m/min

Name: Carbon Steel Tube Mill Machine for Round and Square Pipes 80m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG127
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shijiazhuang China
Brand Name:	Tengtian
Certification:	CE,ISO9001, BV
Model Number:	HG127

Detail Information

Place of Origin:

Shijiazhuang China

Brand Name:

Tengtian

Certification:

CE,ISO9001, BV

Model Number:

HG127

Control System:

PLC

Pipe Material:

Carbon Steel

Item:

Tube Mill Machine

Type Of Forming:

Forming By Rollers

Line Speed:

80m/min

Dimension:

100m*10m*5m

Length:

6 - 12 M

Running Speed:

Max. 80 M / Min

Pipe Thickness:

1.0-4.0mm

Finish:

Square Pipe

Welding Method:

HF-Welding

Production Capacity:

80m/min

Cutting Type:

Flying Computer Saw

Application:

API Pipe, BS Standard Pipe

Highlight:

High Light

Highlight:

Round Pipes Tube Mill Machine

Square Pipes Tube Mill Machine

Carbon Steel Tube Mill Machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Standard Export Packing

Delivery Time:

90 days

Payment Terms:

L/C,T/T

Supply Ability:

20 Sets/Yearly

Product Description

Carbon Steel Tube Mill Machine For Round And Square Pipes

High-performance tube mill machine with maximum speed of 80m/min for producing round and square carbon steel pipes.

Key Specifications

Attribute	Value
Control System	PLC
Pipe Material	Carbon Steel
Type Of Forming	Forming by rollers
Line Speed	80m/min
Pipe Thickness	1.0-4.0mm
Welding Method	HF-Welding
Cutting Type	Flying computer saw
Application	API pipe, BS standard pipe

Product Description

HG127 High-Frequency Welded Pipe Production Line is designed to produce welded round pipes of Ф60～127mm in diameter and 1.5～4.0mm in wall thickness as well as 45×45--100×100mm square pipes with thickness from 1.5-3.5mm.

Technical Parameters

Power	Power Volume	Approx. 800KW
Power Source	380V/50Hz/3phases
Circulation Cooling Water	Flow	30T/h～40 T/h
Pool Volume	60m³
Compressed Air	Flow	5m³/min
Pressure	5～7kg/cm²

Model Specifications

Model	Diameter Range	Pipe Thickness	Molding Speed (m/min)	Motor Power (KW)
HG20	8-20MM	0.3-1MM	30-120	55
HG32	12-32MM	0.3-2.0MM	30-120	75
HG50	16-50MM	0.8-2.5MM	30-110	110
HG60	20-60MM	0.8-3MM	30-100	132
HG76	12-76MM	1-3MM	30-100	320

Our Services

On-site installation and operator training by our engineers
One year quality guarantee with life guarantee repair
Pre-sell services including workshop and production output design
After-sell services including installation, training, and technical support
Option for extended engineer support (several months to 1 year)
Complete project design for stainless steel/carbon steel pipe production
Full responsibility for loading and shipping

Company Overview

We specialize in pipe mill production with advanced technology, exporting to dozens of countries worldwide. Our machines are manufactured to Japanese standards with excellent market reputation.

Certifications

Production Facilities

Global Presence

Our equipment has been exported to Egypt, Greece, South Korea, Vietnam, Indonesia, South Africa and other countries, receiving favorable feedback from customers worldwide.
