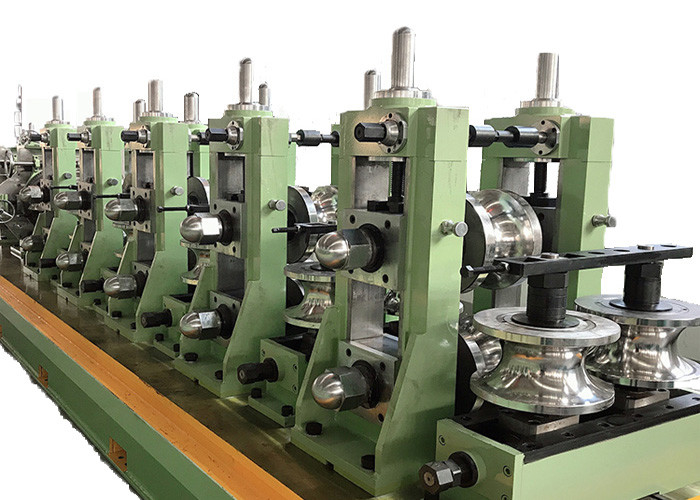

HG63 Tube Mill Machine for Square and Round Pipe Manufacturing

Name: HG63 Tube Mill Machine for Square and Round Pipe Manufacturing
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shijiazhuang China
Brand Name:	Tengtian
Certification:	CE,ISO9001, BV
Model Number:	HG60

Detail Information

Place of Origin:

Shijiazhuang China

Brand Name:

Tengtian

Certification:

CE,ISO9001, BV

Model Number:

HG60

Forming Method:

Direct Forming

Production Name:

Tube Mill Machine

Item:

Tube Mill Machine

Pipe Shape:

Square Pipe

Roll Position Changing:

Control By PLC

Power Supply:

380v,50HZ, 3 Phase

Guarantee Time:

One Year

Other Pipe:

Rectangle Pipe And Square Pipe

Key Words:

Tube Mill Machine

Warranty:

1 Year

Product:

Round Pipe And Square Pipe

Roller Material:

45# Steel

Highlight:

High Light

Highlight:

HG63 Tube Mill Machine

High Frequency Straight Welded Pipe Mill

Accurate ss tube mill machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Standard Export Packing

Delivery Time:

90 days

Payment Terms:

L/C,T/T

Supply Ability:

20 Sets/Yearly

Product Description

HG63 High Frequency Straight Welded Pipe Mill

Product Specifications

Attribute	Value
Forming Method	Direct forming
Production Name	Tube Mill Machine
Pipe Shape	Square pipe, rectangle pipe, round pipe
Roll Position Changing	Control by PLC
Power Supply	380V, 50HZ, 3 Phase
Warranty	1 year
Roller Material	45# Steel

Product Overview

The HG63 high frequency straight welded pipe mill line manufactures welded steel pipes with diameters of 25-63.5mm and thicknesses of 0.8-3.2mm. Capable of producing square pipes from 20x20mm to 50x50mm with thicknesses of 0.8-3.2mm. Our innovative design combines advanced domestic and international pipe making technology to create an economical yet practical production line.

Production Process

Scroll up
Uncoil
Flattening
End Shear & Butt Welding
Accumulator
Forming
High-frequency induction welding
Removing external burr
Cooling
Sizing
Cutting
Checking & Collecting
Accessing Warehouse

Production Flow Chart

Available Models

Model	Diameter Range	Pipe Thickness	Molding Speed (m/min)	Motor Power (KW)	Mechanical Area (m³)
HG20	8-20MM	0.3-1MM	30-120	55	7×50
HG32	12-32MM	0.3-2.0MM	30-120	75	7×50
HG50	16-50MM	0.8-2.5MM	30-110	110	7×60
HG60	20-60MM	0.8-3MM	30-100	132	7×65
HG76	12-76MM	1-3MM	30-100	320	8×80
HG89	32-89MM	1-4MM	30-80	350	8×80
HG114	45-114MM	1.5-5.0MM	30-60	400	10×100
HG165	60-165MM	3-7MM	30-50	600	10×110
HG219	114-219MM	4-8MM	20-40	800	12×150
HG273	114-273MM	4-10MM	15-30	1000	18×160
HG325	165-325MM	4-12MM	10-30	1200	18×180
HG426	165-426MM	4-16MM	8-25	1400	18×180
HG508	219-508MM	4-20MM	8-20	2000	21×180

Our Services

On-site engineer for installation and operator training
One year quality guarantee with lifetime repair support
Pre-sale services including workshop and production output design
After-sale services including installation, training, and technical support
Option for extended engineer support (several months to 1 year)
Complete project design for stainless steel/carbon steel pipe production
Responsible for loading and shipping arrangements

Company Overview

Our company specializes in pipe mill production with strong technical capabilities and a vibrant team. Our machines are manufactured to Japanese standards with advanced configurations and stable quality, achieving world-leading performance. We serve domestic markets and export to Korea, Vietnam, Indonesia, South Africa, Kazakhstan, and other countries.

Certifications

Production Equipment

Global Presence

Our equipment has been exported to Egypt, Greece, South Korea, Vietnam, Indonesia, South Africa, and other countries, receiving positive feedback from customers worldwide.
