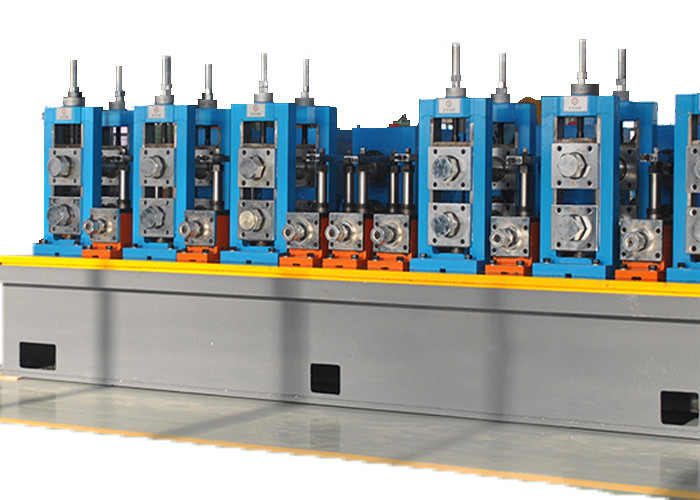

HG63 High Frequency Straight Welded Pipe Mill for Accurate Pipe Manufacturing Line
Product Specifications
| Attribute |
Value |
| Thickness Range |
1.0-4.0mm |
| Usage |
Tube Mill |
| Round Pipe Diameter |
25-102mm |
| Welding Method |
HF-Welding |
| Forming Speed |
max 80 m / min |
| Worm Gearing |
Max.80m/min |
| Roll Position Changing |
Control by PLC |
| Type Of Welding |
High frequency welding |
| Power Source |
Electric |
| Warranty |
One year |
| Control System |
PLC |
Product Overview
HGK102 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of Ф32-102mm in diameter and 0.6～3.0mm in wall thickness, as well as square pipe 25x25-80x80mm, thickness 0.6-2.5mm, and square/rectangular pipes and deformed pipes of corresponding sizes.
The production line features roll pass design for manufacturing welded steel pipes with excellent quality machining and high precision assembly. Following design guidelines that improve operational characteristics, environment, safety, and production efficiency while reducing roller costs, the HG50 production line adopts a double-radius hole style design.
Production Process
- Scroll up
- Uncoil
- Flattening
- End Shear & Butt Welding
- Accumulator
- Forming
- High-frequency induction welding
- Removing external burr
- Cooling
- Sizing
- Cutting
- Checking & Collecting
- Accessing Warehouse
Production Flow Chart
ERW Tube Mill Models
| Model |
Diameter Range |
Pipe Thickness |
Molding speed(m/min) |
Motor Power(KW) |
Mechanical area (m³) |
| HG20 |
8-20MM |
0.3-1MM |
30-120 |
55 |
7×50 |
| HG32 |
12-32MM |
0.3-2.0MM |
30-120 |
75 |
7×50 |
| HG50 |
16-50MM |
0.8-2.5MM |
30-110 |
110 |
7×60 |
| HG60 |
20-60MM |
0.8-3MM |
30-100 |
132 |
7×65 |
| HG76 |
12-76MM |
1-3MM |
30-100 |
320 |
8×80 |
| HG89 |
32-89MM |
1-4MM |
30-80 |
350 |
8×80 |
| HG114 |
45-114MM |
1.5-5.0MM |
30-60 |
400 |
10×100 |
| HG165 |
60-165MM |
3-7MM |
30-50 |
600 |
10×110 |
| HG219 |
114-219MM |
4-8MM |
20-40 |
800 |
12×150 |
| HG273 |
114-273MM |
4-10MM |
15-30 |
1000 |
18×160 |
| HG325 |
165-325MM |
4-12MM |
10-30 |
1200 |
18×180 |
| HG426 |
165-426MM |
4-16MM |
8-25 |
1400 |
18×180 |
| HG508 |
219-508MM |
4-20MM |
8-20 |
2000 |
21×180 |
Company Profile
Our company has strong technical capabilities, business expertise, and a dynamic team. Through continuous efforts, we've captured significant domestic market share and export to Korea, Vietnam, Indonesia, South Africa, Kazakhstan, and other countries.
Certifications
Our Services
1. Engineer dispatch for installation and operator training
2. Warranty Team: One year quality guarantee with life guarantee repair
3. Comprehensive pre-sale and after-sale services including workshop design and production output planning
4. Engineer support available for several months to improve output and reduce costs
5. Complete project design services for stainless steel/carbon steel pipe production
6. Full responsibility for loading and shipping
Global Customers
Specializing in pipe mills, slitting lines, cold roll forming, and stainless steel pipe mills, our machines incorporate advanced Japanese technology with strict manufacturing standards. Our equipment features advanced configurations, stable quality, and excellent performance with worldwide recognition.
Exhibition Highlights
Packing and Shipping
Our equipment has been exported to Egypt, Greece, South Korea, Vietnam, Indonesia, South Africa, and other countries, receiving positive feedback from customers worldwide.
