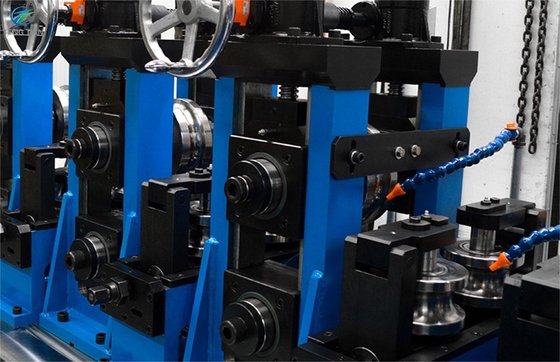

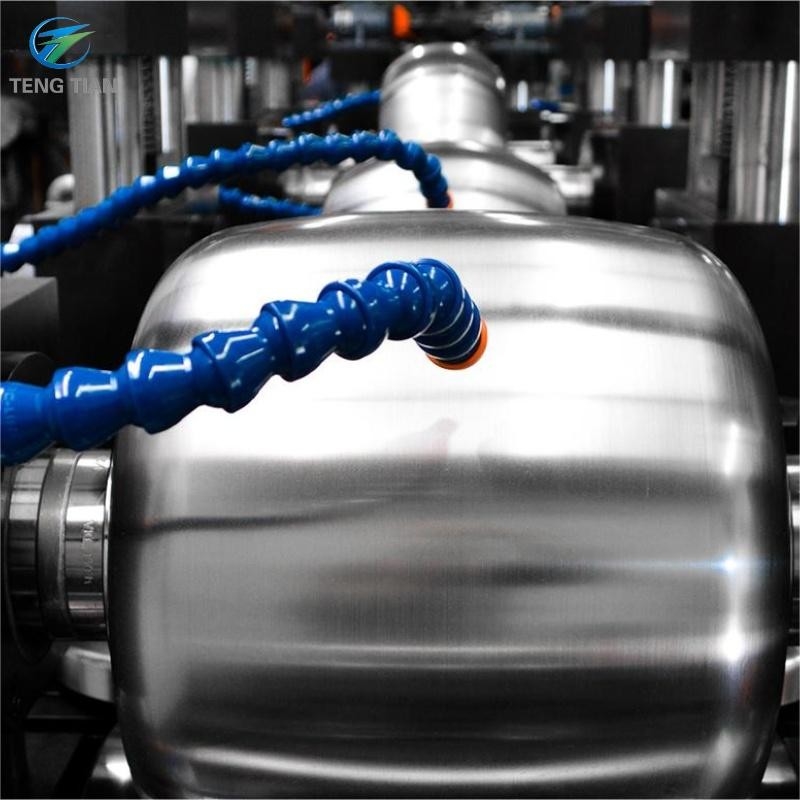

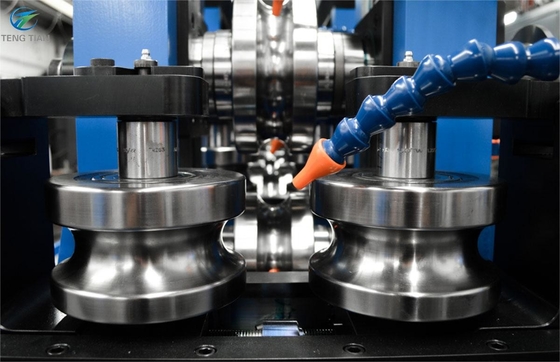

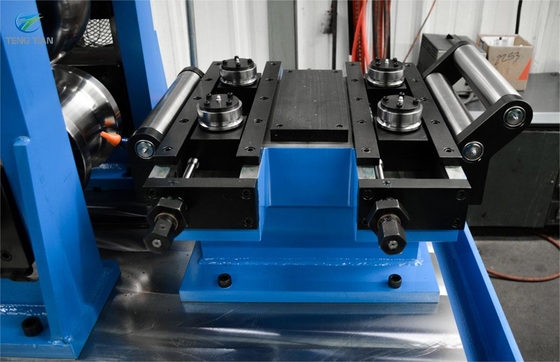

Steel Welding Production Line Square Tube Mill For Square Pipe

Large Image : Steel Welding Production Line Square Tube Mill For Square Pipe

Product Details:

Place of Origin:	China
Certification:	BV,CE,ISO
Model Number:	SS1600

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$100000 to $1 million
Packaging Details:	plastic film winding, wooded case for electric components
Delivery Time:	90 days
Payment Terms:	L/C, T/T
Supply Ability:	21 sets per year

Contact Now

Detailed Product Description

Mill Name:	Steel Welding Production Line Square Tube Mill For Square Pipe	Tube Shape:	Square
Rolling:	Include	Function:	Cold Saw Or Hot Saw
Type:	Pipe Welding Machine	Thickness:	0.3-2.0mm,1-4mm
Workshop Request:	Length, Width And Height 50m X 12m X 6m	Raw Material:	Carbon Steel Coil
Condition:	New	Materail:	Carbon Steel
Keywords:	Square Tube Mill
Highlight:	Square Pipe Tube Mill , Steel Welding Tube Mill , Square Tube Mill Production Line

Steel Welding Production Line Square Tube Mill for Square Pipe

Round Precision Steel Tube Production Line Pipe Making Machine Tube Mill

HG89 High-Frequency Welded Pipe Mill Line is designed to produce Round Pipe(φ16~φ63mm), Square Pipe(19*19~60*60mm) and Rectangular Pipe(40*20~100*50mm). Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

Material: Low carbon steel and low alloy constructional steel

Mechanical properties: σb≤520Mpa,σs≤340MPa

Strip Width: 50～300mm

Strip Thickness: 1.1～4.0mm

Steel strip coil: Inner Diameter of Coils:φ480～φ510mm

Outer Diameter of Coils:φ1000～φ1600mm

Coil Weight: ≤4.5T

Main specifications of welding pipe products:

Pipe Size: Round: φ16～φ63mm

Square: 19*19～60*60mm

Rectangular:40*20～100*50

Wall Thickness of Pipes: 1.1～4mm

Fixed Cutting length: 6～12m

Pipe-cutting Precision: ±1.5mm

Forming Speed : 20～80m/min
