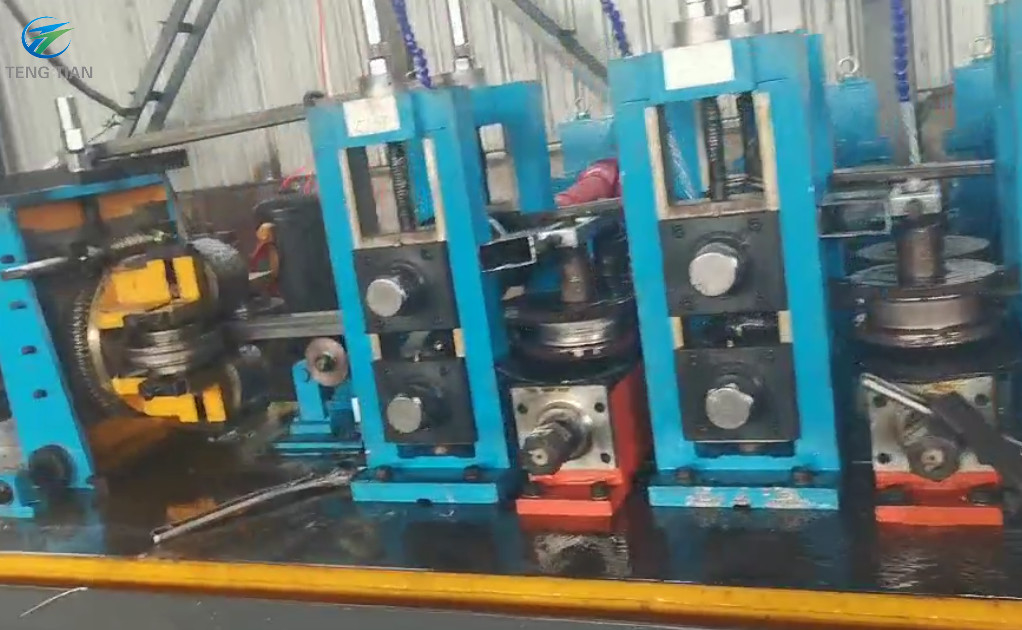

HG60 High Precision Square Tube Mill 30-100m/min Molding Speed

Name: HG60 High Precision Square Tube Mill 30-100m/min Molding Speed
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG 60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shijiazhuang China
Brand Name:	Tengtian
Certification:	CE,ISO9001, BV
Model Number:	HG 60

Detail Information

Place of Origin:

Shijiazhuang China

Brand Name:

Tengtian

Certification:

CE,ISO9001, BV

Model Number:

HG 60

Mill Name:

HG60 High Precision 30-100m/min Molding Speed Square Tube Mill

Materail:

Carbon Steel, Carbon Steel

Service:

Free Technical Consultation Online

Color:

Blue And White

Pipe Material:

HRC,CRC

Mill Speed:

30-80m/min

Feature:

High Precision; More Stable; High Speed;

Pipe Shape:

Round Square Rectangular

Raw Material:

Carbon Steel

Standard:

Conforming To The YB189-64 Standard

Shape:

Square

Length Of Tube:

6m-12m

Welding Speed:

30-100m/min

Useful Life:

20 Years For Steel Tube Mill

Highlight:

High Light

Highlight:

Molding Speed Square Tube Mill

30-100m/min Square Tube Mill

High Precision Square Tube Mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Standard Export Packing

Delivery Time:

90 days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Yearly

Product Description

HG60 High Precision 30-100m/min Molding Speed Square Tube Mill

Product Specifications

Mill Name	HG60 High Precision 30-100m/min Molding Speed Square Tube Mill
Material	Carbon Steel
Service	Free technical consultation online
Color	Blue and white
Pipe Material	HRC, CRC
Mill Speed	30-80m/min
Features	High Precision; More Stable; High Speed
Pipe Shape	Round, square, rectangular
Standard	Conforming to the YB189-64 standard
Length Of Tube	6m-12m
Welding Speed	30-100m/min
Useful Life	20 years for Steel Tube Mill

Technical Parameters

Model Number	HG60
Place of Origin	Hebei, China (Mainland)
Molding speed	30-100m/min
Pipe diameter	20-60mm
Pipe Thickness	0.8-3mm
Voltage	380V/220V
Power	132KW
Certification	ISO9001, CE, BV
Pipe shape	Rectangle, round, square
Material of Pipe	Carbon Steel, Stainless Steel and Galvanized Steel

Production Flow Chart

Product Overview

The HG60 High Precision 30-100m/min Molding Speed Square Tube Mill is designed for producing welded steel pipes from 7mm-508mm in diameter with wall thicknesses ranging from 0.4mm to 20mm. This advanced production line can manufacture various special-shaped tubes including square, rectangular, and elliptical tubes within the circular tube processing scope.

This ERW pipe production line incorporates the most advanced FFX and FF forming systems available, utilizing German COPRA rolling forming design software for precise guide roll design and verification. The unit delivers stable operation, high-quality steel surfaces, easy specification changes, and features advanced technology with reliable equipment and a perfected production process.

ERW Tube Mill Model Comparison

Model	Diameter Range	Pipe Thickness	Molding speed (m/min)	Motor Power (KW)	Mechanical area (m³)
HG20	8-20MM	0.3-1MM	30-120	55	7×50
HG32	12-32MM	0.3-2.0MM	30-120	75	7×50
HG50	16-50MM	0.8-2.5MM	30-110	110	7×60
HG60	20-60MM	0.8-3MM	30-100	132	7×65
HG76	12-76MM	1-3MM	30-100	320	8×80
HG89	32-89MM	1-4MM	30-80	350	8×80
HG114	45-114MM	1.5-5.0MM	30-60	400	10×100
HG165	60-165MM	3-7MM	30-50	600	10×110
HG219	114-219MM	4-8MM	20-40	800	12×150
HG273	114-273MM	4-10MM	15-30	1000	18×160
HG325	165-325MM	4-12MM	10-30	1200	18×180
HG426	165-426MM	4-16MM	8-25	1400	18×180
HG508	219-508MM	4-20MM	8-20	2000	21×180

Our Services

On-site engineer support for installation and operator training
One year quality guarantee with lifetime repair service
Comprehensive pre-sale and after-sale services including workshop design and production output planning
Option for extended engineer support (several months to 1 year) to optimize output and reduce waste
Complete project design services for stainless steel and carbon steel pipe production
Full responsibility for loading and shipping processes

Our Certifications

Global Reach

Our equipment has been exported to numerous countries including Egypt, Greece, South Korea, Vietnam, Indonesia, and South Africa, receiving consistently positive feedback from customers worldwide.
