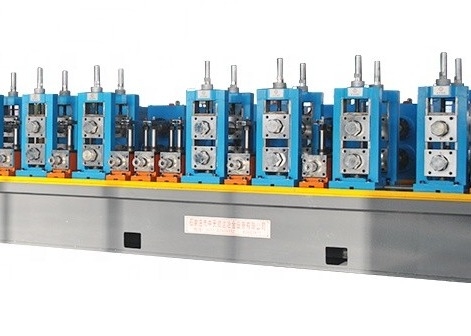

HG127 High-Speed Carbon Steel Pipe Mill 60-127mm Diameter

Name: HG127 High-Speed Carbon Steel Pipe Mill 60-127mm Diameter
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG 127
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shijiazhuang China
Brand Name:	Tengtian
Certification:	CE,ISO9001, BV
Model Number:	HG 127

Detail Information

Place of Origin:

Shijiazhuang China

Brand Name:

Tengtian

Certification:

CE,ISO9001, BV

Model Number:

HG 127

Strip Thickness:

1.5-5.0mm

Item:

High-Speed Carbon Steel Pipes With 60-127mm Diameter And 50 Times Square Tube Mill

Cutting:

Cold Saw

Forming Method:

Cold Roll Forming By Rollers

Roller Material:

Cr12MoV

Model:

HG 127

Pipe Length:

6-12m

Pipe Shape:

Rectangular,Square

Speed:

40-80m/min

Highlight:

High Light

Highlight:

50 Times Square Tube Mill

60-127mm Square Tube Mill

High Speed Square Tube Mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Standard Export Packing

Delivery Time:

90 days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Yearly

Product Description

High-Speed Carbon Steel Pipes with 60-127mm Diameter and 50 times Square Tube Mill

Product Specifications

Attribute	Value
Strip Thickness	1.5-5.0mm
Cutting Method	Cold Saw
Forming Method	Cold Roll Forming by Rollers
Roller Material	Cr12MoV
Model	HG 127
Pipe Length	6-12m
Pipe Shape	Rectangular, Square
Speed	40-80m/min

Product Description

Carbon Steel Pipeline Round Pipe with diameter 60-127mm and square pipe size 50×50-100×100mm. Maximum speed of 60m/min with blue automatic welded pipe production line.

Main Parameters and Specifications

The HG127 High-Frequency Welded Pipe Production Line produces welded round pipes of Ф60～127mm in diameter and 1.5～4.0mm in wall thickness, as well as 50×50--100×100mm square pipes with thickness from 1.5-4.0mm. Features roll pass design for high-quality welded steel pipes with precision assembling.

Power	Power Volume of the Line	Approx. 800KW
Power Source	380V/50Hz/3phases
Circulation Cooling Water	Flow	30T/h～40 T/h
	Pool Volume	60m3
Compressed Air	Flow	5m3/min
	Pressure	5～7kg/cm2

Technical Specifications

Model	Diameter Range	Pipe Thickness	Molding Speed (m/min)	Motor Power (KW)	Mechanical Area (m³)
HG20	8-20MM	0.3-1MM	30-120	55	7×50
HG32	12-32MM	0.3-2.0MM	30-120	75	7×50
HG50	16-50MM	0.8-2.5MM	30-110	110	7×60
HG60	20-60MM	0.8-3MM	30-100	132	7×65
HG76	12-76MM	1-3MM	30-100	320	8×80
HG89	32-89MM	1-4MM	30-80	350	8×80
HG114	45-114MM	1.5-5.0MM	30-60	400	10×100
HG165	60-165MM	3-7MM	30-50	600	10×110
HG219	114-219MM	4-8MM	20-40	800	12×150
HG273	114-273MM	4-10MM	15-30	1000	18×160
HG325	165-325MM	4-12MM	10-30	1200	18×180
HG426	165-426MM	4-16MM	8-25	1400	18×180
HG508	219-508MM	4-20MM	8-20	2000	21×180

About Our Company

We are a professional manufacturer with strong technical capabilities and a vibrant team. Our products have gained significant domestic market share and are exported to Korea, Vietnam, Indonesia, South Africa, Kazakhstan, and other countries.

Our Certifications

Our Services

On-site installation and operator training by our engineers
One year quality guarantee with lifetime repair service
Comprehensive pre-sale and after-sale services including workshop design and production output planning
Option for extended engineer support (several months to 1 year) to optimize production
Complete project design for stainless steel/carbon steel pipe making
Responsible for loading and shipping arrangements

Our Customers

We specialize in pipe mills, slitting lines, cold roll forming, and stainless steel pipe mills. Our machines incorporate advanced Japanese technology and are manufactured to Japanese standards, offering stable quality and excellent performance.

Exhibition Highlights

Packing and Shipping

Our equipment has been exported to Egypt, Greece, South Korea, Vietnam, Indonesia, South Africa, and other countries, receiving positive feedback from customers worldwide.
