High Performance Carbon Steel Pipe Production Line for 20-76mm Round Pipe
Product Specifications
| Attribute | Value |
| Pipe Length | Custom |
| Color | Green |
| Shape | Round/Square/Rectangle |
| Outer Diameter | 20-76mm |
| Machinery Test | Provided |
| Production Period | 3 months |
| Type of Forming | Forming by Roller |
| Material of Pipe | ST37 ST52 |
| Service Life | Long |
| Condition | New |
Product Description

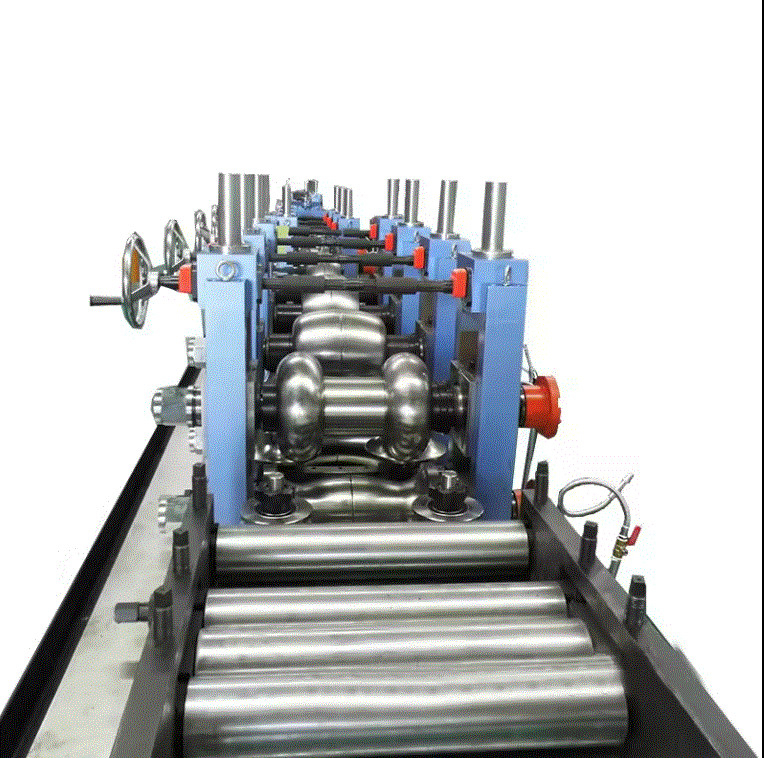

The HG76 High-Frequency Welded Pipe Mill Line is designed to produce welded pipes of Ф20～76mm in diameter with wall thickness of 1.0～3.5mm, as well as square, rectangular, and deformed pipes of corresponding sizes. Utilizing advanced roll pass design, this production line manufactures welded steel pipes with superior quality machining and high precision assembly.
Available Models
| Serial No. | Model | Thickness (mm) | Specification (mm) | Speed (m/min) | Main Engine (kw) | Power (kw) | Area |
| 1 | H20 | 0.3-1 | 8-20 | 30-120 | 55 | 60 | 7*50 |
| 2 | H32 | 0.3-2.0 | 12-32 | 30-120 | 75 | 100 | 7*50 |
| 3 | H50 | 0.8-2.5 | 16-50 | 30-110 | 110 | 150 | 7*60 |
| 4 | H60 | 0.8-3 | 20-60 | 30-100 | 132 | 200 | 7*65 |
| 5 | H76 | 1-3 | 12-76 | 30-100 | 320 | 250 | 8*80 |
| 6 | H89 | 1-4 | 32-89 | 30-80 | 350 | 300 | 8*80 |
| 7 | HG114 | 1.5-5 | 45-114 | 30-60 | 400 | 300 | 10*100 |
| 8 | HG165 | 3-7 | 60-165 | 30-50 | 600 | 400 | 10*110 |
| 9 | HG219 | 4-8 | 114-219 | 20-40 | 800 | 500 | 12*150 |
| 10 | HG273 | 4-10 | 114-273 | 15-30 | 1000 | 600 | 18*160 |
| 11 | HG325 | 4-12 | 165-325 | 10-30 | 1200 | 600 | 18*180 |
| 12 | HG426 | 4-16 | 165-426 | 8-25 | 1400 | 800 | 18*180 |
| 13 | HG508 | 4-20 | 219-508 | 8-20 | 2000 | 1000 | 21*180 |
Production Process
Loading car → Uncoil → Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening → STD Cold-cutting saw → Transmitting → hydrostatic testing → End facer → Straightener → Packing → Storage
About Our Company
Our company specializes in full automation pipe mill production with strong technical capabilities and a vibrant team. Through continuous innovation and strict quality control, we have established a dominant position in domestic markets and expanded to international markets including Korea, Vietnam, Indonesia, South Africa, and Kazakhstan.
Certifications
Our Services
- On-site engineer support for installation and operator training
- One year quality guarantee with lifetime repair service
- Comprehensive pre-sales and after-sales support including workshop design and production output planning
- Option for extended engineer support to optimize production efficiency
- Complete project design services for stainless steel and carbon steel pipe production
- Full responsibility for loading and shipping arrangements
Global Customers
Our pipe mills, slitting lines, and cold roll forming equipment are manufactured with Japanese technology standards, featuring advanced configurations and stable quality that have earned excellent market reputation worldwide.
Exhibition Highlights
Packing and Shipping
Our equipment has been successfully exported to Egypt, Greece, South Korea, Vietnam, Indonesia, South Africa, and other countries, receiving positive feedback from customers worldwide.
