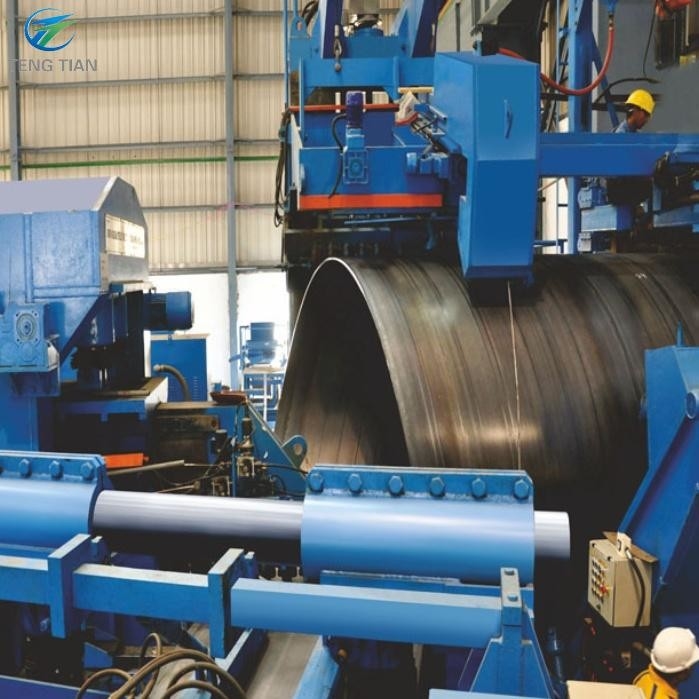

Q355 Carbon Steel Weld Pipe Mill with Water Cooling System

Name: Q355 Carbon Steel Weld Pipe Mill with Water Cooling System
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HTTS1830S
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	tengtian
Certification:	BV,CE,ISO
Model Number:	HTTS1830S

Detail Information

Place of Origin:

China

Brand Name:

tengtian

Certification:

BV,CE,ISO

Model Number:

HTTS1830S

Product Name:

Carbon Steel Q355 Weld Pipe Mill Argon Arc Welding DC1500 Welder For Water

Type Of Forming:

Forming By Rollers

Max Size:

50 X 50 - 100 X 100 Mm

Pipe Material:

Carbon Steel

Tube Thickness:

2.0-5.0mm

Cooling System:

Water Cooling

Pipe Shape:

Round, Square, Rectangle

Welding Type:

High Frequency Welding

Pipe Length:

6m-18m

Key Words:

Carbon Steel Weld Pipe Mill

Highlight:

High Light

Highlight:

Argon Arc Welding Pipe Mill

Water Pipe Mill

DC1500 Welder Pipe Mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

plastic film winding, wooded case for electric components

Delivery Time:

90 days

Supply Ability:

21 sets per year

Product Description

Carbon Steel Q355 Weld Pipe Mill Argon Arc Welding DC1500 Welder For Water

Product Specifications

Attribute	Value
Product Name	Carbon Steel Q355 Weld Pipe Mill Argon Arc Welding DC1500 Welder For Water
Type Of Forming	Forming by Rollers
Max Size	50 x 50 - 100 x 100 mm
Pipe Material	Carbon Steel
Tube Thickness	2.0-5.0mm
Cooling System	Water Cooling
Pipe Shape	Round, square, rectangle
Welding Type	High Frequency Welding
Pipe Length	6m-18m

Product Description

This Carbon Steel Q355 Weld Pipe Mill features Argon Arc Welding with DC1500 Welder and water cooling system. Designed for industrial applications including oil & gas pipelines.

Production line suitable for pipes with diameter range φ190-φ1220mm and thickness 3-24mm
Innovative design with two main machine forming lines sharing one finishing area for efficiency

Technical Parameters

Coil Materials:

OD	ø190-ø1220 mm
ID	ø600-ø760 mm
Grade	Q235B, Q355B
Wall thickness	3-24 mm
Width	500-1500 mm
Weight	≤20 Tons

Output Pipe:

Diameter	ø550-ø1830 mm
Wall thickness	5-12 mm
Length	8-12 M
Weight	Max. 6.5 Tons
Spiral distance	Max. 2200 mm
Standard	GB/T9711 GB/T5037

Production Line:

Working style	Front pendulum + discontinuous + centralized positioning
Feeding	Left/right (as order)
Forming	Three-roll bending, external control sizing
Forming angle	40°～79°
Blanking	Pendulum roll
Feeding speed	0.6-3.0 m/min
Welding speed	0.5-2.8 m/min
Welder	USA Lincoln DC1500
Welding	Single Out+In auto SAW
Productivity	Approx. 100/8 (tons/hour)
Capacity	Approx. 550 kw (include welder)
