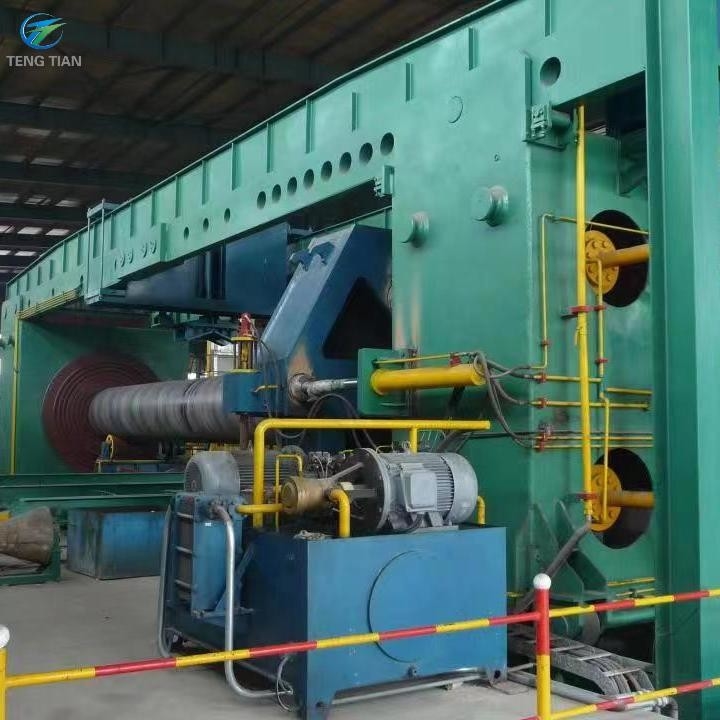

Spiral Welding Machine Pipe Mill Q235B for Oil Pipeline

Name: Spiral Welding Machine Pipe Mill Q235B for Oil Pipeline
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HTTS1220S
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	tengtian
Certification:	BV,CE,ISO
Model Number:	HTTS1220S

Detail Information

Place of Origin:

China

Brand Name:

tengtian

Certification:

BV,CE,ISO

Model Number:

HTTS1220S

Product Name:

Spiral Welding Machine Pipe Mill Q235B Front Pendulum X Ray For Oil Pipeline

Material:

Q235B

Welding Method:

Argon Arc Welding

Pipe Thickness:

4.0-16.0mm

Cutting Length:

6-12 M

Keyword:

Spiral Welding Machine Pipe Mill

Highlight:

High Light

Highlight:

Spiral Welding Machine Pipe Mill

Q235B Spiral Welding Machine Pipe Mill

Spiral steel pipe making machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

plastic film winding, wooded case for electric components

Delivery Time:

90 days

Supply Ability:

21 sets per year

Product Description

Spiral Welding Machine Pipe Mill Q235B Front Pendulum X Ray For Oil Pipeline

Product Specifications

Attribute	Value
Product Name	Spiral Welding Machine Pipe Mill Q235B Front Pendulum X Ray For Oil Pipeline
Material	Q235B
Welding Method	Argon arc welding
Pipe Thickness	4.0-16.0mm
Cutting Length	6-12 M

Spiral Welding Machine Pipe Mill

Technical Parameters

Coil Materials

OD	ø190 - ø1220 mm
ID	ø600 - ø760 mm
Grade	Q235B, Q355B
Wall thickness	6-14 mm
Width	500 - 1500 mm
Weight	≤25 Tons

Output Pipe

Diameter	ø190 - ø1220 mm
Wall thickness	6-14 mm
Length	8 - 12 M
Weight	Max. 25 Tons
Spiral distance	Max. 2200 mm
Standard	GB/T9711 GB/T5037

Production Line

Working style	Front pendulum + discontinuous + centralized positioning
Feeding	Left/right (as order)
Forming	Three-roll bending, external control sizing
Forming angle	40°～79°
Blanking	Pendulum roll
Feeding speed	0.6 -3.0 m/min
Welding speed	0.5 - 2.8 m/min
Welder	USA Lincoln DC1500
Welding	Single Out+In auto SAW
Productivity	Approx. 100/8 (tons/hour)
Capacity	Approx. 550 kw (include welder)
