ERW Pipe Mill for Welded Pipes with Precision Machining and Advanced Roll Pass Design

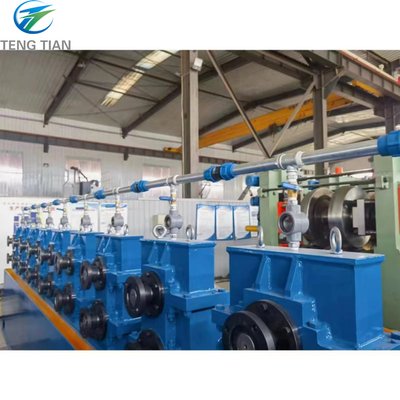

Large Image : ERW Pipe Mill for Welded Pipes with Precision Machining and Advanced Roll Pass Design

Product Details:

Place of Origin:	Shijiazhuang China
Brand Name:	Tengtian
Certification:	CE,ISO9001, BV
Model Number:	HG 114

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$100000 to $1 million
Packaging Details:	Standard Export Packing
Delivery Time:	60 days
Payment Terms:	L/C, T/T
Supply Ability:	50 Sets/Yearly

Contact Now

Detailed Product Description

Product Name:	ERW Pipe Mill For Welded Pipes With Precision Machining And Advanced Roll Pass Design	Forming Method:	FFX Forming Technology
Warranty:	1 Year	Material Type:	Steel
Pipe Shape:	Round,square	Voltage:	380V
Condition:	New	Welding Speed:	0-100m/min
Hydraulic Station:	Yes	Keyword:	ERW Pipe Mill For Welded Pipes
Highlight:	Precision Machining ERW Pipe Mill , Welded Pipes ERW Pipe Mill , ERW steel pipe manufacturing machine

HG114 High-frequency welded pipe mill line

Main Parameters and Specifications

High-Frequency Welded Pipe Mill Line is designed to produce welded pipes of 50～101.6mm in diameter and 1.0～4.0mm in wall thickness as well as square and rectangular pipes and deformed pipes of the corresponding size. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

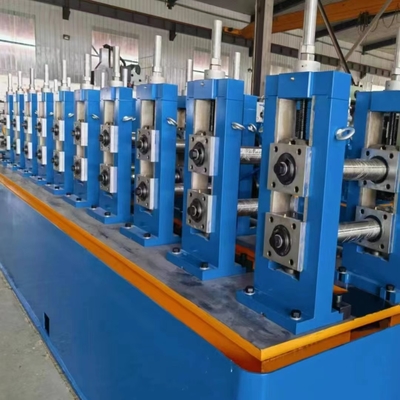

ERW Pipe Mill for Welded Pipes with Precision Machining and Advanced Roll Pass Design 0

Power	Power Volume of the Line	Approx.800KW
Power	Power Source	380V/50Hz/3phases
Circulation Cooling Water	Flow	30T/h～40 T/h
Circulation Cooling Water	Pool Volume	60m3
Compressed Air	Flow	5m3/min
Compressed Air	Pressure	5～7kg/ cm2

Model

Model	Diameter Range	Pipe Thickness	Molding speed(m/min)	Motor Power(KW)	Mechanical area (m³)
HG20	8-20MM	0.3-1MM	30-120	55	7×50
HG32	12-32MM	0.3-2.0MM	30-120	75	7×50
HG50	16-50MM	0.8-2.5MM	30-110	110	7×60
HG60	20-60MM	0.8-3MM	30-100	132	7×65
HG76	12-76MM	1-3MM	30-100	320	8×80
HG89	32-89MM	1-4MM	30-80	350	8×80
HG114	45-114MM	1.5-5.0MM	30-60	400	10×100
HG165	60-165MM	3-7MM	30-50	600	10×110
HG219	114-219MM	4-8MM	20-40	800	12×150
HG273	114-273MM	4-10MM	15-30	1000	18×160
HG325	165-325MM	4-12MM	10-30	1200	18×180
HG426	165-426MM	4-16MM	8-25	1400	18×180
HG508	219-508MM	4-20MM	8-20	2000	21×180

About us

New Full Automation

The company has a strong technical ability, strong business ability, vibrant team. Through the unremitting efforts of all staff, in recent years the company has occupied most of the domestic market, and exported to Korea, Vietnam, Indonesia, South Africa, Kazakhstan and other dozens of countries and regions, from domestic and foreign customers.

Qualification

Our Services

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .

Our customers

Our company specializes in the production of pipe mill, slitting line,cold roll forming,stainless steel pipe mill and other equipment,On the basis of the introduction of the advanced technology of Japan, the company is innovative and the machine are manufactured in strict accordance with the standard of Japan.Advanced configuration,stable quality,excellent performance,with excellent market visibility and reputation,our machine has reached the world's leading level.

Exhibition

Packing and shipping

Our equipment has been exported to dozens of countries and regions such as Egypt, Greece,South Korea,Vietnam,Indonesia,South Africa,etc.,and received favorable comments from domestic and foreign customers.
