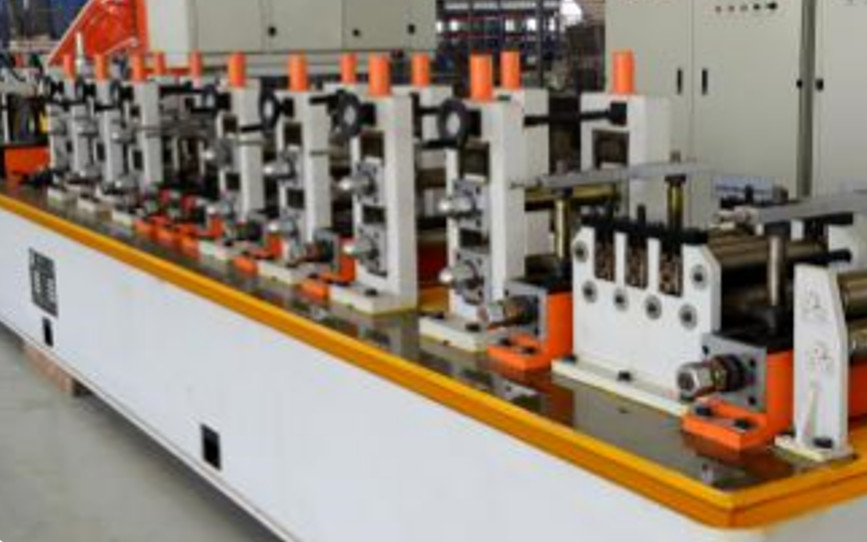

Automated High Frequency Welded Tube Mill Machine 219mm Max Diameter

Name: Automated High Frequency Welded Tube Mill Machine 219mm Max Diameter
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG219
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TengTian
Certification:	BV,CE,ISO
Model Number:	HG219

Detail Information

Place of Origin:

China

Brand Name:

TengTian

Certification:

BV,CE,ISO

Model Number:

HG219

Product Name:

Automated High Frequency Welded Tube Mill Machine

Coild:

Q235

Diameter:

219mm(max.)

Operation Mode:

Automate

Thickness:

6mm

Length:

6-9M

Weight:

8 Tons

Cutter:

Hot Saw

Runout Table:

18M

Key Word:

High Frequency Welded Tube Mill Machine

Highlight:

High Light

Highlight:

219mm tube mill machine

High Frequency Welded Tube Mill Machine

Automated Welded Tube Mill Machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

plastic film winding, wooded case for electric components

Delivery Time:

150 days

Payment Terms:

L/C,T/T

Supply Ability:

21 sets per year

Product Description

Automated High Frequency Welded Tube Mill Machine

Attribute	Value
Product Name	Automated High Frequency Welded Tube Mill Machine
Coil	Q235
Diameter	219mm (max.)
Operation Mode	Automated
Thickness	6mm
Length	6-9M
Weight	8 Tons
Cutter	Hot Saw
Runout Table	18M

Product Overview

This automated high frequency welded tube mill machine is designed for producing high-quality welded steel pipes, including round, square, and rectangular pipes. Featuring precision roll pass design, the production line delivers excellent machining quality and high assembly precision.

Material Specifications

Standard: Conforming to YB189-64 standard

Material: Low carbon steel and low alloy steel, Q235

Strip Width: 320-700mm

Strip Thickness: 1.5-6.0mm

Inner Diameter of Coils: φ470～φ510mm

Outer Diameter of Coils: Φ1000～φ1800mm

Coil Weight: ≤8T

Pipe Specifications

Pipe Size: Round Pipe: ø89-219mm | Square Pipe: 80x80 - 175x175mm

Thickness: 1.5-6.0mm

Length: 6m

Forming Speed: 20-50 m/min

Buyer-Supplied Requirements

Total Capacity: Around 850 kw

Circulation Cooling Water: Flow: 20T/h～30 T/h | Pool Volume: 30m³

Compressed Air: Flow: 5m³/min | Pressure: 5-7kg/㎡

Cable: All cable outside of machine to be supplied by buyer after machine installation

Installation service includes 2-3 engineers for commissioning. Buyer is responsible for round-trip tickets, food & accommodation, local transportation, and a technical service fee of $150 per engineer per day.
