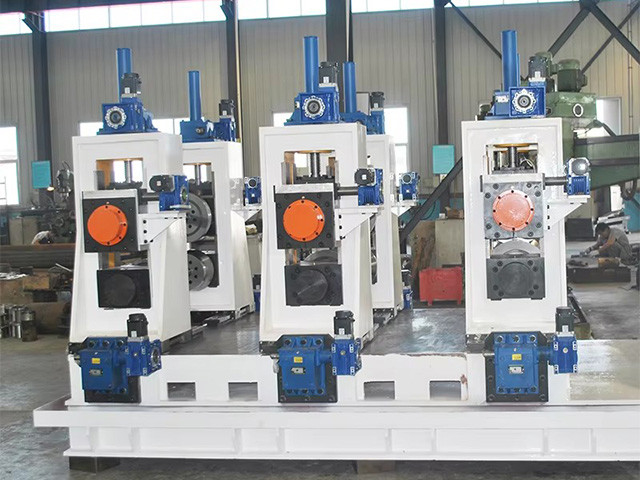

Customizable Tube Mill Machine for Q235 Steel Pipes 219mm Max

Name: Customizable Tube Mill Machine for Q235 Steel Pipes 219mm Max
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG219
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TengTian
Certification:	BV,CE,ISO
Model Number:	HG219

Detail Information

Place of Origin:

China

Brand Name:

TengTian

Certification:

BV,CE,ISO

Model Number:

HG219

Product Name:

High Efficiency Customizable Tube Mill Machine

Coild:

Q235

Diameter:

219mm(max.)

Worm Gearing:

20-50 M/min

Thickness:

6mm

Length:

6-9M

Weight:

8 Tons

Cutter:

Hot Saw

Runout Table:

18M

Key Word:

Customizable Tube Mill Machine

Highlight:

High Light

Highlight:

High Efficiency Tube Mill Machine

Customizable Tube Mill Machine

Low Noise Tube Mill Machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

plastic film winding, wooded case for electric components

Delivery Time:

150 days

Payment Terms:

L/C,T/T

Supply Ability:

21 sets per year

Product Description

Low Noise High Efficiency Customizable Tube Mill Machine

Product Specifications

Attribute	Value
Product Name	High Efficiency Customizable Tube Mill Machine
Coil	Q235
Diameter	219mm (max)
Worm Gearing	20-50 m/min
Thickness	6mm
Length	6-9M
Weight	8 Tons
Cutter	Hot Saw
Runout Table	18M

Product Description

This high efficiency customizable tube mill machine is designed to produce welded steel pipes, including round, square, and rectangular pipes. Featuring roll pass design, the production line delivers welded steel pipes with excellent quality machining and high precision assembly.

Material Specifications

Standard: Conforming to YB189-64 standard
Material: Low carbon steel and low alloy steel, Q235
Strip Width: 320-700mm
Strip Thickness: 1.5-6.0mm
Inner Diameter of Coils: φ470～φ510mm
Outer Diameter of Coils: Φ1000～φ1800mm
Coil Weight: ≤8T

Pipe Specifications

Round Pipe: ø89-219mm
Square Pipe: 80x80 - 175x175mm
Thickness: 1.5-6.0mm
Length: 6m
Forming Speed: 20-50 m/min

Buyer-Supplied Requirements

Total capacity: Around 850 kw
Circulation Cooling Water (whole system): Flow:20T/h～30 T/h, Pool Volume:30m³
Compressed Air (whole system): Flow:5m³/min, Pressure: 5-7kg/㎡
Cable: All cable outside of machine to be purchased after machine installation

We typically send 2-3 engineers to perform installation and commissioning. The buyer is responsible for providing round-trip tickets, food & accommodation, local transportation, and a technical service fee of $150 per day per engineer.
