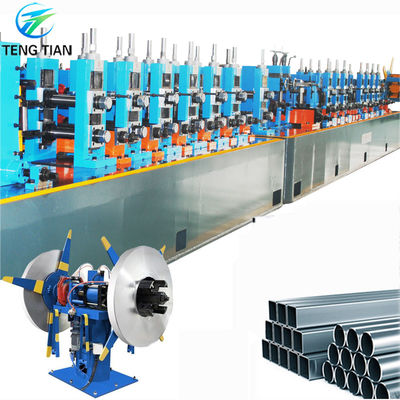

High Efficiency Multiple Uses Carbon Steel Material Steel Tube Making Machine For Infrastructure Construction
I. Introduction
For the Steel Tube Making Machine that all countries are doing infrastructure construction, cold roller mills equipment has many uses. The finished product is used in various fields such as building materials, decoration, new energy, etc., and is one of the necessary production lines for steel products. Low investment and high return, suitable for companies new to the steel industry
II. Manufacturing Tour
Step 1 - Coils
There are carbon steels that are going to be made into pipe and tube for you
Step 2 - uncoiler
The carbon steel coil is placed on the uncoiler
Step 3 - Leveler
The coil stock is leveled
Step 4 - Mill
Then it goes through a series of rolls that form the flat steel into pipe
Step 5 - Mill Rollers
Rolls form this size schedule into shape
Step 6 - Welder
An Electirc Resistance Welder Finishes the pipe or tube
Step 7 - Scarfer
The seam is “scarfed” to make the pipe or tube smooth all the way around.
Step 8 - Saw
Finally, the pipe and tube is sawed to length
III.Equipment composition
winding and unwinding reels :The Single Cone winding is of the structure of double expansion and cantilever mandrels. It contains two main parts: main body and the fixed base. The main body is equipped with pneumatic system to satisfy the needs of expanding, contracting and braking of the mandrels.
Straightener & leveler :The Straightener is main used to lead the new coil steel head feed into the leveler after uncoiler unit bring the coil into the working place. The Leveler is main used to flatten the head and trail of the strip steel and prepare for the next step shear and welding, so as to ensure the strip steel opposed flate and straight in the shear welding.
Automatic shear and welding : Used to cut off the irregular part of the tape head and tail, and align the tape tail of the previous coil with the tape head of the next coil, and weld them together.
Forming and sizing part : this part cold-bends the steel strip into a set shape. The size can be adjusted by the servo motor.
Cutting machine : It is used for material cutting of continuous non-stop cold-formed steel production line. The cutting method is hydraulic cutting. The high-power servo is equipped with a high-precision reducer and imported rack and pinion transmission. The accuracy of cutting (hole distance) is ±1mm. Install imported high-precision linear guide rail and protective cover
IV. Factory appearance
Product Details
Our Factory
Our Exhibition
Our customer Case
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
FAQ :
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
