HG426 Carbon steel material Safety and Environmental Protection Steel Tube Making Description:

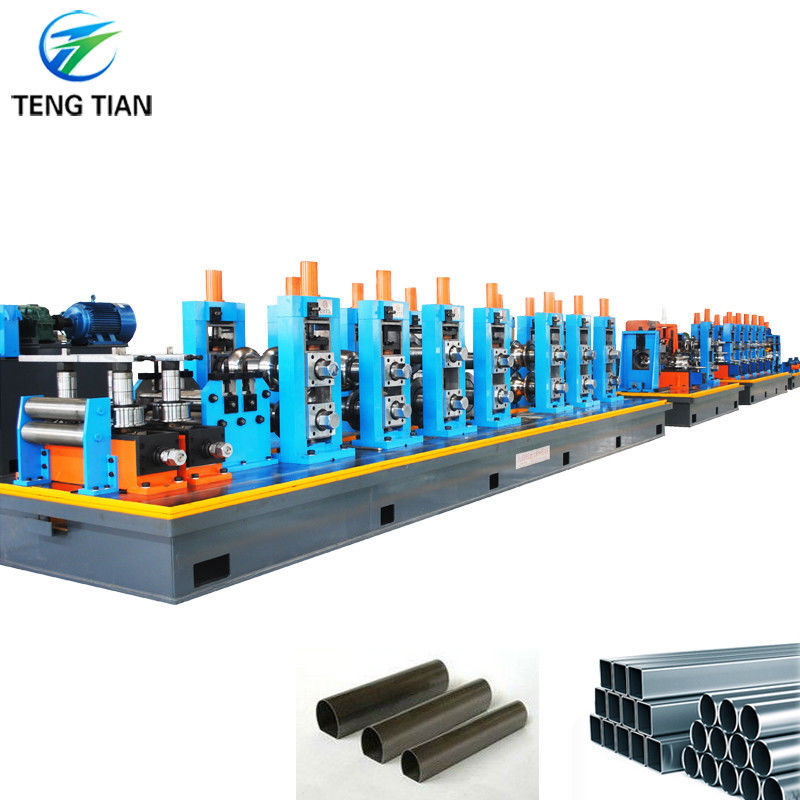

HG426x12.7 High frequency welded pipe production line is used to manufacture welded steel pipe of Φ165mm-Φ426mm,thickness 4.0-10.0mm, square pipe 130x130-330x330mm, thickness 4.0-9.5mm . After we absorbed advanced pipe making technology from all over world, our innovative designed production line and each single unit of the production line is not only economical but also practical.
- Shaft Diameter: 150mm
- Roller Stations: 18-20 Stations
- Machine Weight: About 400T
- Roller Material: Cr12
Technical Parameters:
| (1)Raw material: |
| Material Quality |
Q195,Q235B,Q355B,Galvanized Steel,MS,CR,HR |
| Mechanical properties |
σb≤500Mpa,σs≤325MPa |
| Strip Width |
515-1340mm |
| Strip Thickness |
4.0-12.7mm |
| Coil ID |
Φ508-610mm |
| Coil OD |
Φ1200mm-2100mm |
| Coil Weight |
18.0T |
- Finished Product Size and purpose
|
| Pipe Size |
Round Pipe: φ165-φ426 mm T:4.0-12.7mm
Square Pipe:¨ 130x130-330x330mm T:4.0-12mm
|
| Length |
4-6m |
| Application |
Structure |
Support and Services:
Technical Support and Service for CZ Purlin Roll Forming Machine
We provide technical support and service for CZ Purlin Roll Forming Machine. Our experienced technical staff can help you with:
- Installation and configuration of CZ Purlin Roll Forming Machine
- Repair and maintenance of CZ Purlin Roll Forming Machine
- Troubleshooting of any issues related to CZ Purlin Roll Forming Machine
Our technical support team is available 24/7 and is always ready to answer any questions or assist you with any issues you may have.
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
